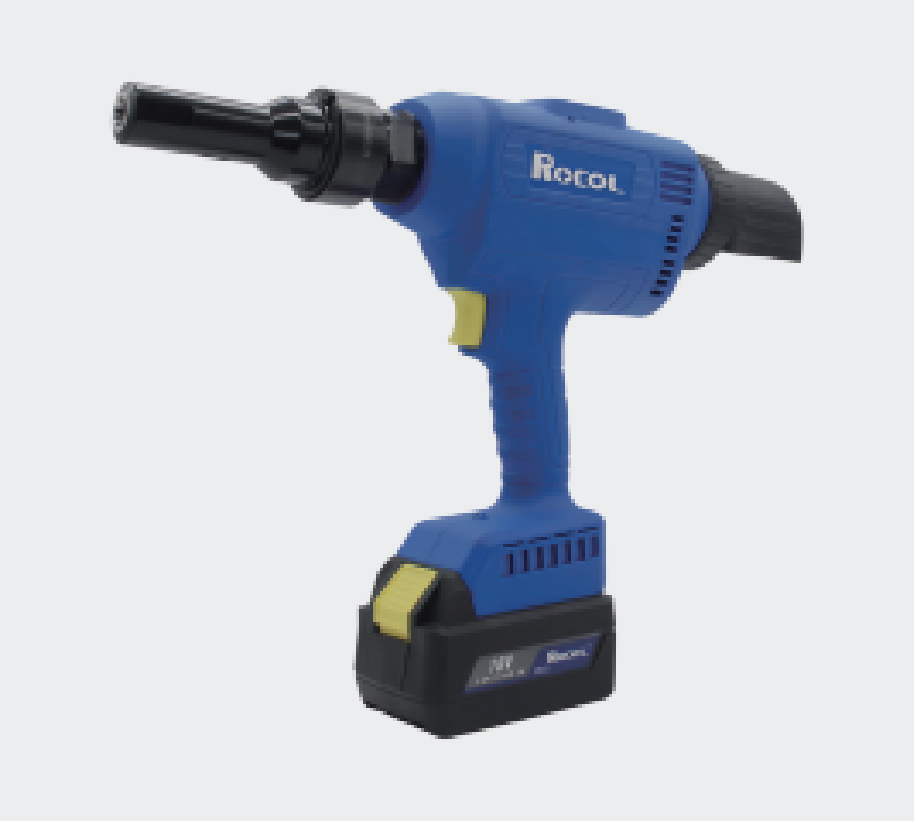

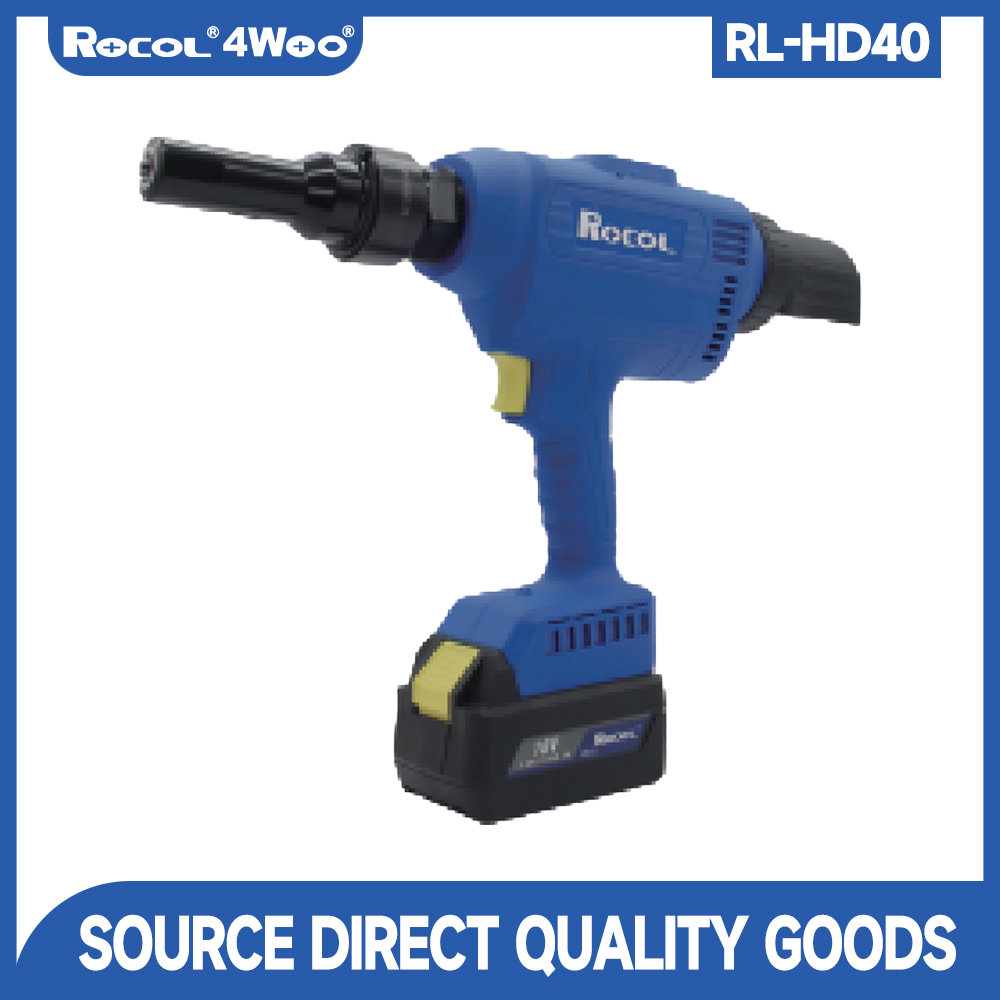

RL-HD40
| Availability: | |
|---|---|
| Quantity: | |
Product Description
Core Features: Designed for 8mm ring-slot rivets and high-strength rivets above 8mm, featuring compact body size, high tensile strength, and excellent maneuverability. QR Code Maintenance System: When common faults occur, the device automatically displays corresponding QR codes. Users can scan to access troubleshooting videos for quick issue resolution.
Visual Interface Management: Equipped with color display panels supporting Chinese/English switching, real-time battery status monitoring, anomaly alerts, and intuitive parameter adjustments.
Intelligent Counting Management: Includes leak-proof counting functionality with automatic group counting and lifecycle tracking.
Smart Break Detection: Built-in automatic break detection system provides intelligent riveting quality assessment (OK/NG).
Classic Structural Design: Compact internal structure combines high-performance brushless motors with lead screw transmission for robust performance and stable operation.
Modular Flexibility: Multiple interchangeable head modules enable rapid adaptation to various riveting installation tasks.
Demolition Capability: Installation-demolition head allows efficient removal of installed ring-slot and BOM-type rivets.
Specifications
Soldering range | Soldering range | Itinerary | working pull | Weight of the bare machine | lithium battery |
RL-HD40 | Φ8-Φ10 | 28mm | 40kN | 2.78kg | 18V/4.0Ah |
Suitable rivet type
| Rivet type | Rivet specifications | Rivet specifications |
![]() | 8mm BOM rivet | BOM-8 |
![]() | 9.8 Cup-shaped internal locking rivet with wire drawing | ILSB-9.8 |
![]() | 8mm ring groove nail with breakpoint rivet | GLB-BN-8 |
![]() | 8mm ring groove nail with continuous rivet | GLB-NB-8 |
