RL-HD6 Lithium-ion Battery Rivet Gun

RL-HD6 Electric Riveting Tool Details

Professional Functions:

Designed for single-trench and single-face rivet applications, suitable for riveting operations with rivets ranging from 6mm to 12mm in diameter.

QR Code Maintenance Function:

When common faults occur, the device automatically displays the corresponding QR code; users can scan it to view troubleshooting videos, enabling rapid issue identification and resolution.

 Visual Interface Management:

Equipped with a color display panel supporting Chinese and English language switching, real-time power level display, abnormal condition alerts, and intuitive parameter settings and adjustments.

Intelligent Counting Management:

Features leak-proof counting capabilities, supporting automatic group counting and lifecycle counting.

Intelligent Tension Detection:

Built-in automatic tension sensor intelligently evaluates riveting quality (OK/NG).

Classic Structural Design:

The internal structure is simple and compact, utilizing a high-performance brushless motor paired with lead screw transmission for robust power and stable operation.

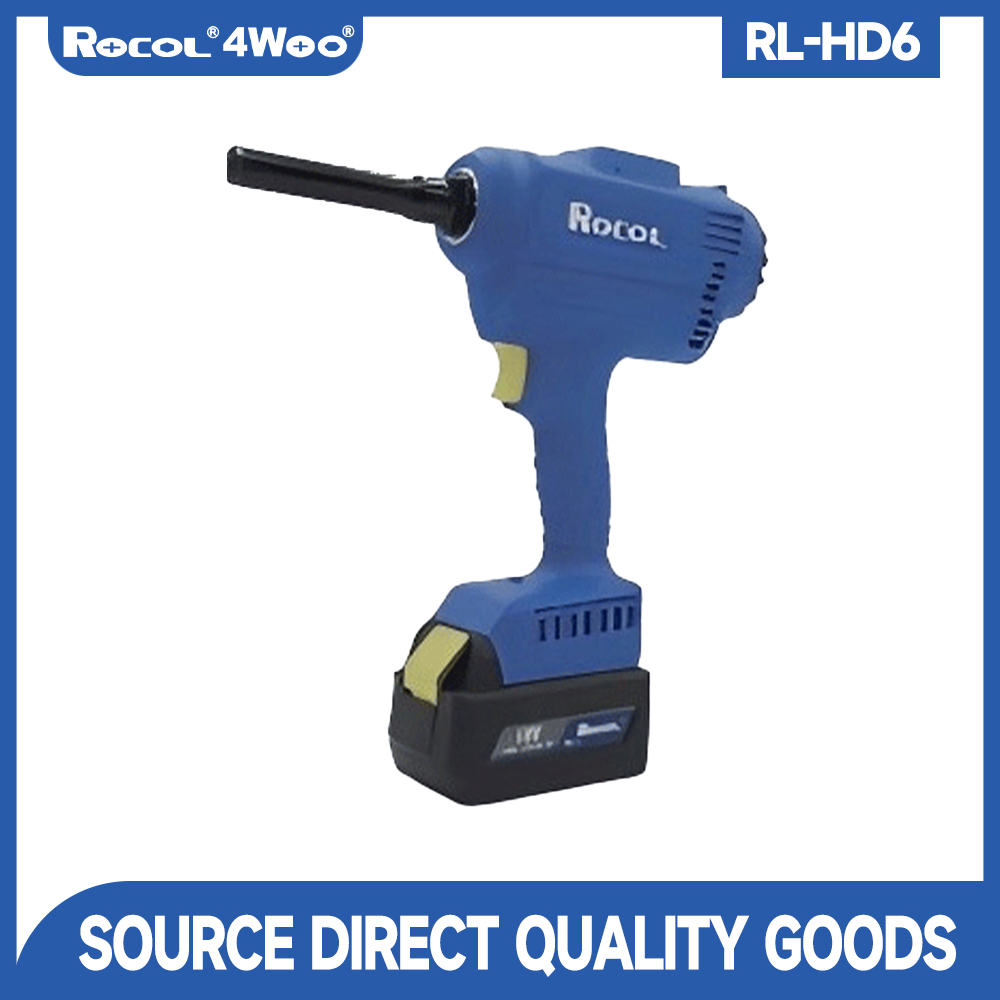

RL-HD6

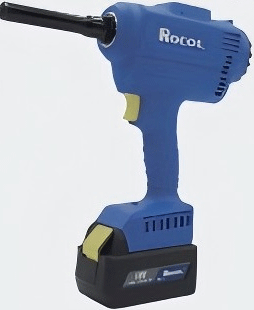

RL-HD8

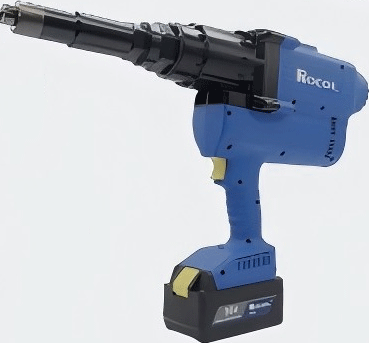

RL-HD10

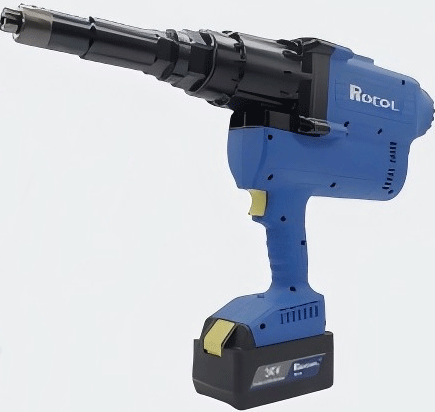

RL-HD12

Key Features:

• Powerful brushless motor for stable and efficient performance

• Cordless design for maximum mobility and convenience

• Compatible with multiple rivet sizes and materials

• Durable construction for industrial applications

• Ergonomic grip for comfortable long-term use

Why Choose Rocol Factory?

Rocol Factory is a leading rivet gun supplier in China, offering OEM & ODM services to global distributors and wholesalers. With competitive pricing, reliable delivery, and professional support, we help businesses scale efficiently in international markets.

Applications:

• Sheet metal fabrication

• Automotive manufacturing and repair

• Construction and installation projects

• Electrical and appliance assembly

RL-HD6 Electric Riveting Tool Specification

RL-HD6 Electric Riveting Tool Suitable rivet type

Rivet type	Rivet Specifications	Gun tip assembly
	M6 single-channel rivet	RL-HD6
	M8 single-channel rivet	RL-HD8
	M10 single-channel rivet	RL-HD10
	M12 single-channel rivet	RL-HD12
	M12 single-channel, single-sided rivet	RL-HD12
