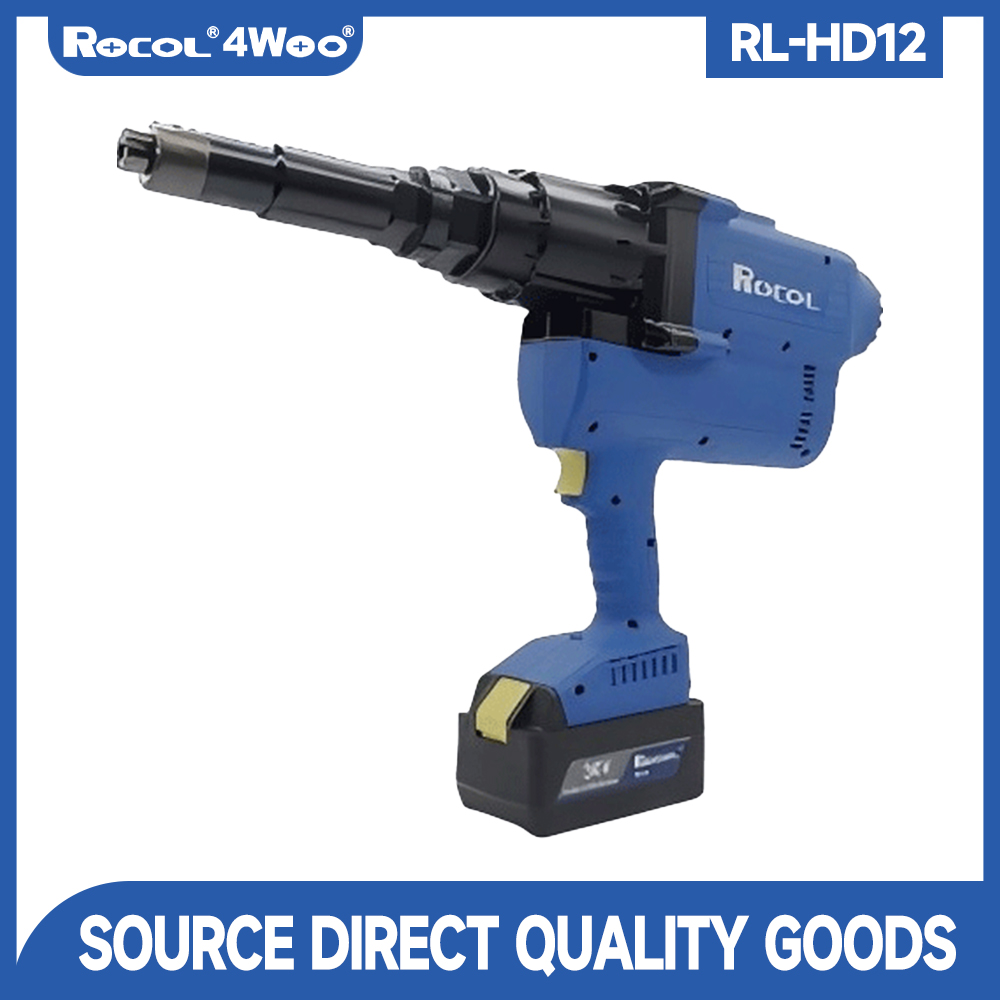

RL-HD12 Lithium-ion Battery Rivet Gun

RL-HD12 Electric Riveting Tool Details

Professional Functions: Designed for single-trench and single-face rivet applications, suitable for riveting operations with rivets ranging from 6mm to 12mm in diameter;.

QR Code Maintenance Function: When common faults occur, the device automatically displays the corresponding QR code; users can scan it to view troubleshooting videos, enabling rapid issue identification and resolution.

 Visual Interface Management: Equipped with a color display panel supporting Chinese and English language switching, real-time power level display, abnormal condition alerts, and intuitive parameter settings and adjustments; Intelligent Counting Management: Features leak-proof counting capabilities, supporting automatic group counting and lifecycle counting;

Intelligent Tension Detection: Built-in automatic tension sensor intelligently evaluates riveting quality (OK/NG); Classic Structural Design: The internal structure is simple and compact, utilizing a high-performance brushless motor paired with lead screw transmission for robust power and stable operation.

RL-HD6

RL-HD8

RL-HD10

RL-HD12

RL-HD12 Electric Riveting Tool Specification

RL-HD12 Electric Riveting Tool Suitable rivet type

Rivet type	Rivet Specifications	Gun tip assembly
	M6 single-channel rivet	RL-HD6
	M8 single-channel rivet	RL-HD8
	M10 single-channel rivet	RL-HD10
	M12 single-channel rivet	RL-HD12
	M12 single-channel, single-sided rivet	RL-HD12
