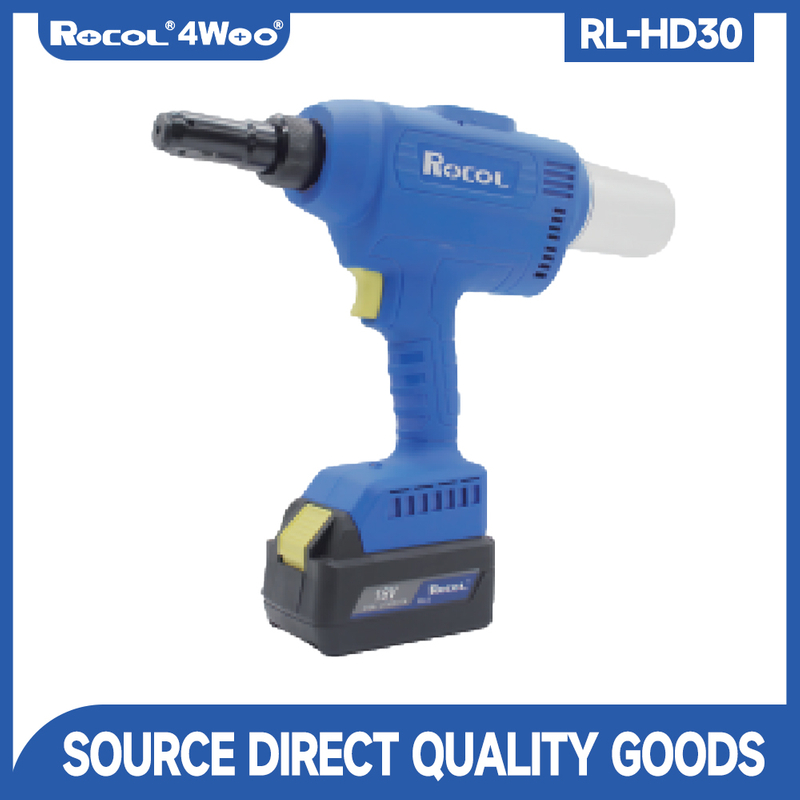

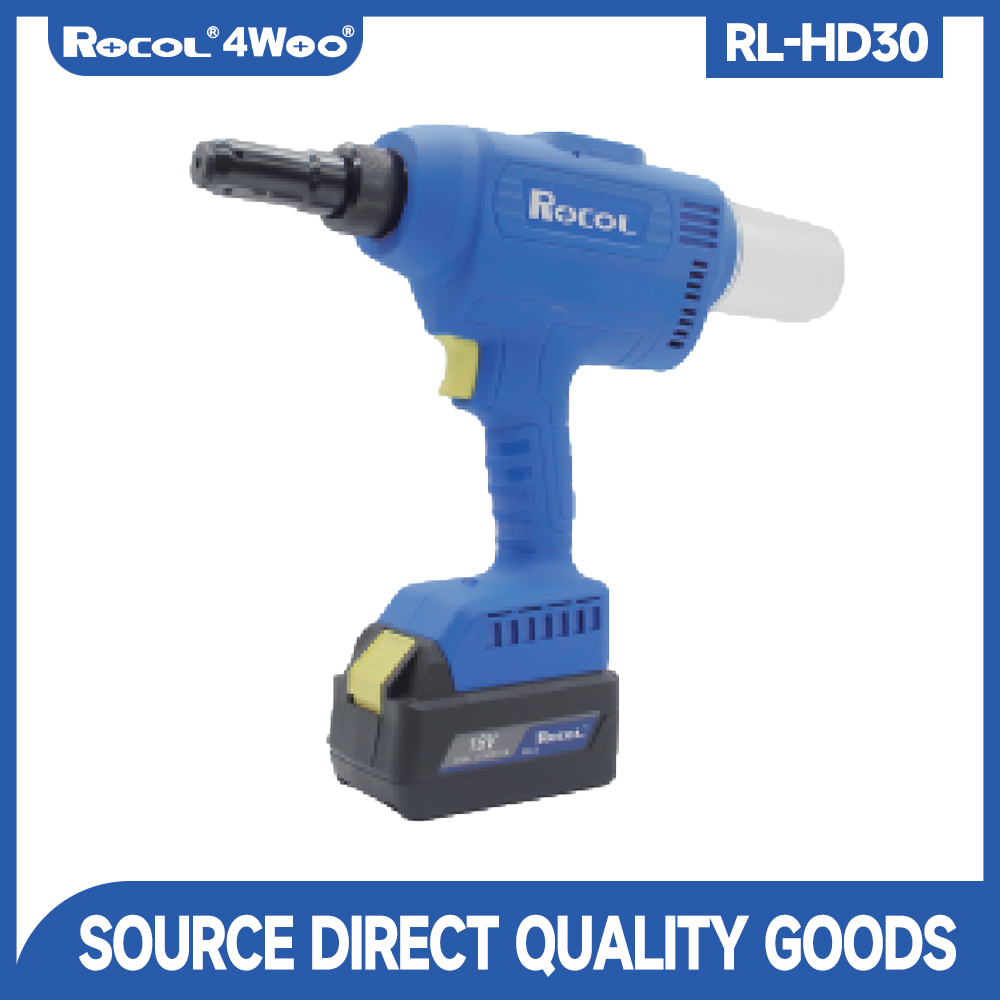

RL-HD30 Electric Riveting Tool Details
Professional Features: Designed for Φ4.8–Φ6.4 ring-slot rivets, compatible with Φ6.4–Φ7.8 high-strength structural rivets. Features anti-fall protection for rivets, with automatic core collection after riveting to enhance assembly efficiency and operational cleanliness.
QR Code Diagnosis Function: When common faults occur, the device automatically displays the corresponding QR code. Users can scan the code to watch troubleshooting videos, enabling quick issue identification and resolution.
Visual interface management: Features a color display panel supporting Chinese and English switching, real-time battery level display, abnormal condition alerts, and intuitive, quick parameter setup and adjustment.
Intelligent Count Management: Features leak-proof counting functionality, supporting automatic group counting and lifecycle counting.
Intelligent Break Detection: Built-in automatic break detection enables intelligent evaluation of riveting quality (OK/NG).
Full Collection Alert: Sets core collection quantities based on rivet specifications, with automatic notifications upon full collection.
Classic Structural Design: Compact internal structure employs a high-performance brushless motor with lead screw drive for robust power and stable operation.
Modular Functionality: Rapid adaptation to various riveting tasks is achieved by replacing different modular heads.
