Product Description
One feeding system with two rivet guns can operate independently without interference.
The large feeding system automatically aligns and separates rivets, ensuring stability, reliability, and preventing jamming.
The rivet passage points are all open, providing clear visibility and reliability, making troubleshooting extremely convenient and tool-free.
The flexible rivet delivery pipes deliver rivets to designated locations as required, offering convenience and flexibility.
Features low material reminders and shortage alarms. When a fault alarm is triggered, the fault location is displayed clearly and conveniently.
A counting function is included.
Rivet guns can be selected according to customer specifications, and gun replacement and disassembly are extremely flexible and convenient.
The rivet feeding speed is fast and stable, capable of delivering over 60 rivets per minute.

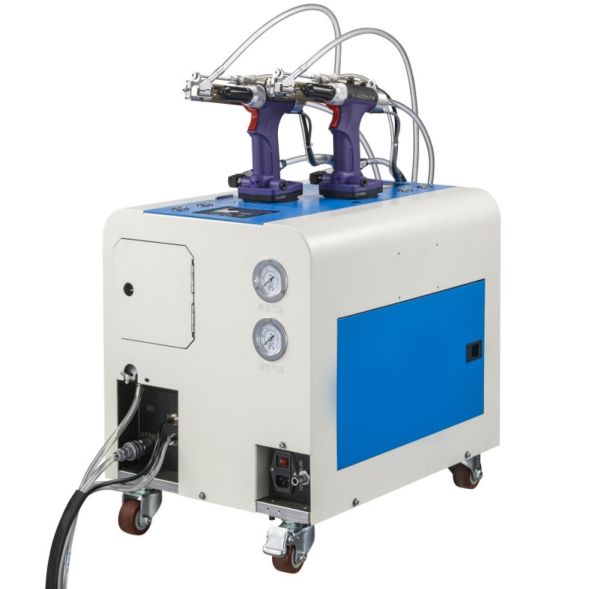

4Woo one out two riveting machine adopts advanced automatic control system and high-strength mechanical structure design, which can realize fast feeding, precise positioning, automatic riveting and continuous production. The equipment can significantly increase the production speed and reduce labor input costs compared to traditional single-station equipment through the dual-station synchronous operation mode.
The machine is stable in operation and easy to operate, suitable for the processing needs of various specifications of rivets and different materials of workpieces, and can be customized according to customer production requirements, which is an important equipment for modern manufacturing enterprises to improve efficiency and optimize production lines.
One out and two double station design, higher production capacity
Automatic feeding and precise riveting for increased efficiency
Firm riveting and high product consistency
| Casters | 360-degree omnidirectional casters, lightweight and flexible, smooth movement |
|
| Double-opening windows and doors | Convenient maintenance and repair, safe and reliable |
|
| Automatic feeding | When rivets are poured into the vibratory feeder, they are fed in an orderly manner to the rivet distribution point |
|
| Automatic material delivery | Once the rivets reach the distribution point, they can be fed to the nozzle via the rivet feed tube |
|
| Automatic replenishment | After one riveting operation is completed, the next rivet can be automatically fed to the nozzle |
|
| Intelligent counting | The LCD display can count the total number of rivets processed per day |
|
| Material shortage alarm | When no rivets reach the distribution point, the alarm light will automatically illuminate and an audible prompt will be given |
|
| Fault alarm | When the machine malfunctions, the alarm light will automatically illuminate and an audible prompt will be given |
|
| Quantity error prevention | The number of rivets processed per product can be set to prevent missed processing |
|
| Tail nail collection | The core-pulling rod can reach the recycling bin via the tail rivet tube or use the tail rivet collection cylinder |
|
| Product Model | External dimensions mm | Silo capacity grain | Rated power w | Equipment weight Kg | Riveting speed Seconds Per Particle | Weight Of Nail Pulling Gun kg | Working Air Pressure Kg | Rated air pressure Kg | Applicable Nail Specifications mm | Applicable Nail Specifications mm | Tube Length mm | Length Of Nail Removal Tube mm | Input Voltage V | Output Voltage V |
| FX-LD-240Q2 | 510*390*480 | 4000-5000 | 350 | 59 | 1.2-1.5 | 1.6 | 6 | 8 | 50-60 | 2.4 | 25000 | 2000-3000 | 220 | 24 |
| FX-LD-320Q2 | 510*390*480 | 2000-3000 | 350 | 59 | 1.2-1.5 | 1.6 | 6 | 8 | 50-60 | 3.0-3.2 | 25000 | 2000-3000 | 220 | 24 |
| FX-LD-400Q2 | 510*390*480 | 2000-2500 | 350 | 59 | 1.2-1.5 | 1.7 | 6 | 8 | 50-60 | 4.0 | 25000 | 2000-3000 | 220 | 24 |
| FX-LD-500Q2 | 510*390*480 | 1000-1500 | 350 | 59 | 1.2-1.5 | 1.7 | 6 | 8 | 50-60 | 4.8-5.0 | 25000 | 2000-3000 | 220 | 24 |

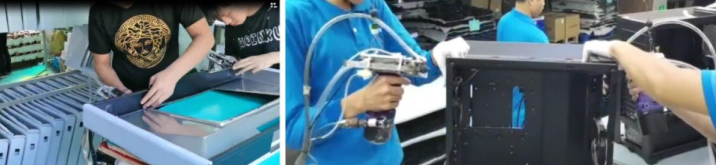

Automatic riveting machines are suitable for riveting operations that connect two or more layers of plates of various materials and thicknesses using rivets. They are widely used in riveting operations in industries such as chassis, cabinets, lighting fixtures, automobiles, small household appliances, electric ovens, and liquor packaging.
