Whether you are assembling sheet metal enclosures, fabricating commercial trailer bodies, installing HVAC ducting, or building structural steel framing, securing joints with blind rivets is one of the most reliable mechanical fastening methods available. However, achieving clean, structural, zero-defect joints requires more than simply squeezing a trigger.
Knowing how to use a rivet gun correctly involves mastering prep work, hole clearance tolerances, grip range selection, fluid pressure or battery power management, and preventative tool care.
In this technical guide, we will walk through the step-by-step mechanical process of using hand, pneumatic, hydropneumatic, and cordless rivet guns safely and effectively. We will also explore quality control measures and highlight benchmark equipment standards from industry reference brands Rocol Tools and 4Woo.
Before picking up a rivet gun, proper material preparation is critical. Over $80\%$ of joint failures or improper rivet sets stem from poor hole quality or incorrect fastener selection.
To prevent galvanic corrosion and ensure joint strength, match your rivet body material to the base metals being joined:
Aluminum Rivets: Best for light sheet aluminum, HVAC ducting, and non-structural panels.
Steel & Stainless Steel Rivets: Essential for high-shear structural applications, automotive chassis, and heavy equipment.
Every blind rivet is rated for a specific grip range (the total combined thickness of the material plates being fastened).
Under-gripping: If the rivet grip length is too short, the expanded blind head will not form against the rear plate, resulting in loose assemblies.
Over-gripping: If the rivet grip length is too long, the blind head expands too far away from the material, creating a weak joint and leaving excessive mandrel length.

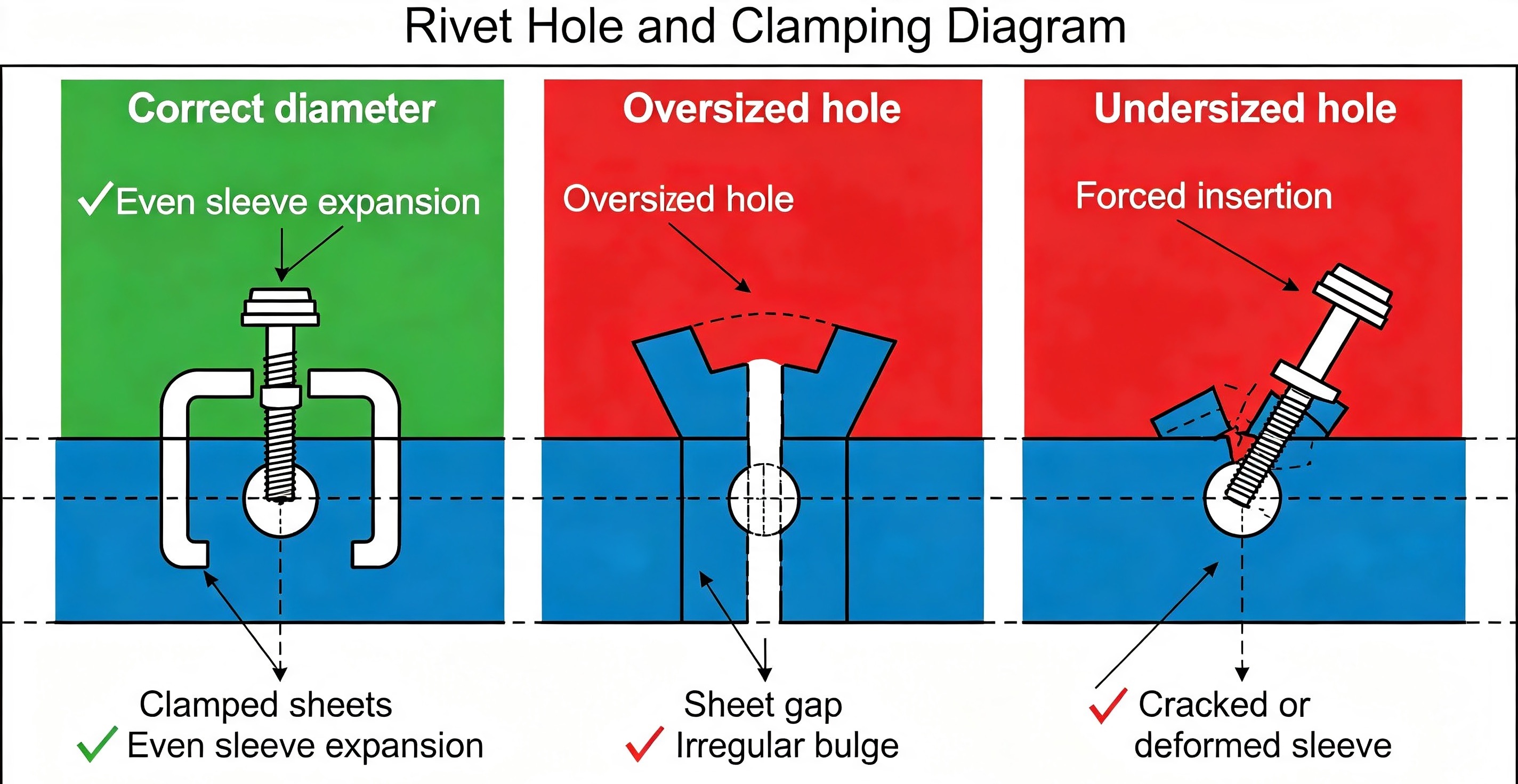

Always drill clean, deburred holes slightly larger than the nominal rivet diameter. Refer to standard engineering hole tolerances:
Too Tight: The rivet body will shear or jam during insertion.
Too Loose: The expanding rivet sleeve will fail to fill the void completely, leading to joint vibration and lower shear capacity.

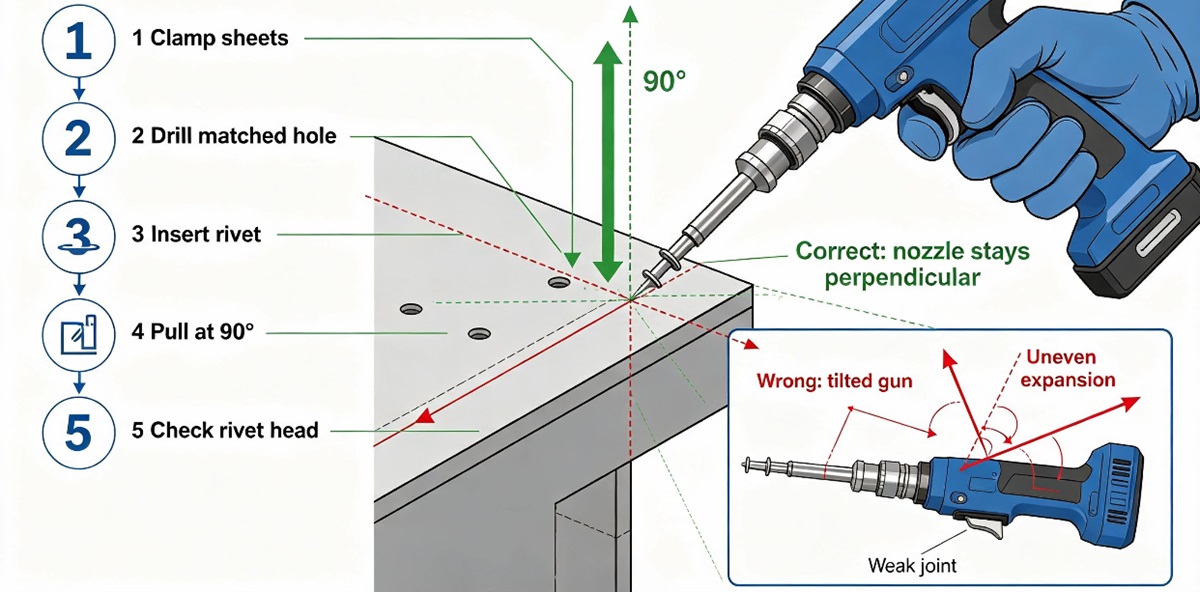

Once your workpieces are drilled, deburred, and clamped tightly, follow this standardized operating procedure to complete the fastening process.
Ensure overlapping sheet metal or structural plates are pressed firmly together with C-clamps or Cleco fasteners. Any air gap between sheets will cause the expanding rivet body to flare between the plates rather than behind them.
Place the long stem (mandrel) of the rivet into the nosepiece of the tool. Ensure the nosepiece matches the diameter of the mandrel stem. A nosepiece that is too large will allow jaws to tilt and slip.
Insert the rivet head fully into the drilled hole until the rivet flange rests completely flat against the outer material sheet.
Crucial Technique Note: Hold the rivet gun at a strict $90^\circ$ perpendicular angle to the surface. Tilting the tool causes angled rivet heads, unseated flanges, and uneven joint tension.
Apply light forward pressure against the workpiece to keep the flange flush. Actuate the tool:
Manual Tool: Squeeze levers steadily until the internal jaws bite, pull, and snap the mandrel pin.
Pneumatic / Hydropneumatic Tool: Depress the pneumatic trigger once. The air-hydraulic piston will instantly pull the jaws back and snap the mandrel in $1-2$ seconds.
Cordless Electric Tool: Hold the trigger until the electronic stroke completes and returns automatically.
Once the mandrel snaps cleanly at its break notch, release the trigger. Tilt the tool back to drop the spent pin into a collector cup, or allow the automated vacuum system to pull it into the rear storage container.
Knowing how to operate a rivet gun also means adjusting your workflow based on the tool's power mechanism.
| Tool Power Category | Operating Air / Power Setting | Operational Technique Focus | Primary Safety & Quality Rule |
| Manual Hand Riveters | Human Leverage | Steady, full-stroke squeezes | Avoid side-loading to prevent bending pins |
| Pneumatic / Hydropneumatic | Clean Compressed Air ($80-100\text{ PSI}$) | Maintain constant forward pressure | Ensure FRL unit delivers dry, lubricated air |
| Cordless Battery Powered | Lithium-Ion Voltage Management | Let motor complete auto-reverse stroke | Keep battery charged to avoid partial pulls |
In industrial manufacturing environments where technicians set thousands of rivets per shift, tool ergonomic balance, pulling force reliability, and waste management are essential. Two benchmark brands driving tool precision across global assembly lines are Rocol Tools and 4Woo.
| Performance Metric | ROCOL TOOLS (Heavy Duty & Structural Strength) | 4WOO (High-Speed Smart Pneumatics) |
| Primary Focus | Heavy Hydropneumatic & High-Tensile Fasteners | Smart Pneumatic Tools & Automated Waste Control |
| Target Fasteners | Monobolts, Lockbolts, Heavy Structural Rivnuts ($M8-M12$) | Standard Blind Rivets, Aluminum Fasteners ($M3-M8$) |
| Tool Body Metallurgy | Drop-Forged Alloy Steel Chassis & Hardened Jaws | Lightweight Composite Housings & LED Interfaces |
| Waste System | High-Capacity Mechanical Mandrel Collectors | Automated Venturi Vacuum Extraction Systems |
| Quality Verification | Thermal Protection & Internal Fluid Management | Microprocessor Stroke Tracking & Visual Alerts |
| Ideal Work Setting | Heavy Commercial Fleets, Solar Racking, Chassis | High-Speed HVAC Lines, Automotive BIW, Electronics |
When proper installation requires setting large-diameter steel structural fasteners, monobolts, or lockbolts, Rocol Tools serves as an industry reference for fluid power and mechanical endurance.
Installing heavy $1/4\text{ in}$ ($6.4\text{ mm}$) to $3/8\text{ in}$ ($10\text{ mm}$) structural fasteners requires massive pulling forces exceeding $20,000\text{ N}$ to $40,000\text{ N}$. Rocol Tools constructs its heavy hydropneumatic and battery platforms with drop-forged alloy steel body frames and triple-jaw tungsten-carbide clamping sets. This heavy-duty metallurgy prevents frame deflection or jaw slippage during continuous structural pulls.
Repeated rapid pulling of structural fasteners generates friction heat within hydraulic intensifiers. Rocol Tools incorporates internal thermal heat-dissipation channels and high-viscosity oil circulation loops. This design maintains constant pull stroke length and steady force output across multi-shift factory operations.
For precision sheet metal shops, HVAC air handling manufacturers, and cleanroom environments, 4Woo leads the sector with air-efficient, intelligent, and clean tooling ecosystems.
A signature operational feature across the 4Woo pneumatic tool family is the automated venturi vacuum system. The tool uses a small fraction of compressed air to create a localized vacuum pocket at the nosepiece. This holds the rivet securely in place at any angle—even upside down inside complex enclosures—prior to trigger actuation. Upon shearing, spent mandrel pins are drawn instantly into a clear rear collection vessel, keeping shop floors clean and preventing loose scrap from scratching painted panels.
4Woo embeds digital sensor logic into its smart tool series. Internal micro-sensors measure stroke displacement and applied force curves during every cycle. If a rivet sets incompletely due to an oversized drilled hole or panel thickness variation, the 4Woo system alerts the operator via visual LED signals, preventing defective joints from advancing down the line.

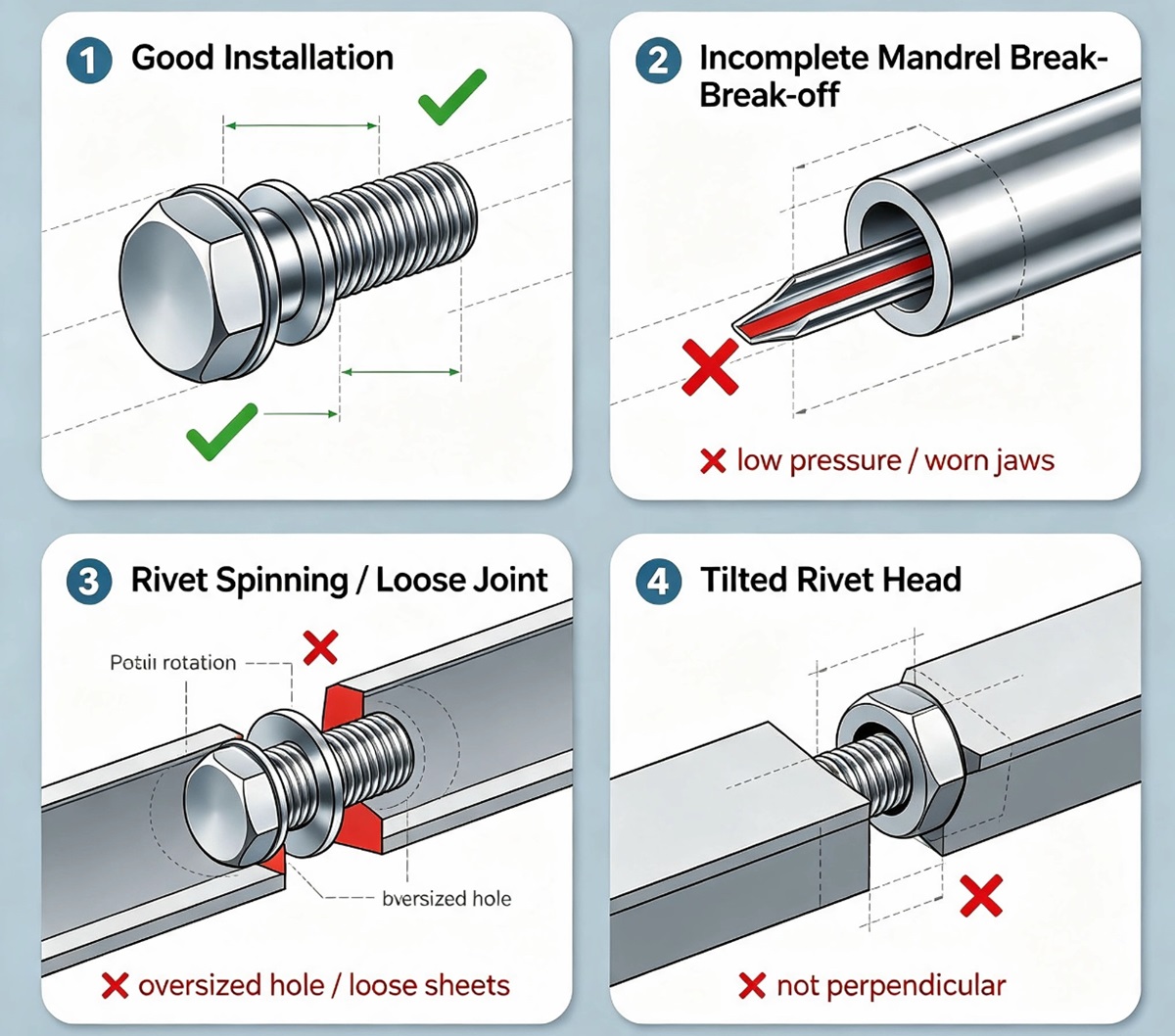

Even experienced operators encounter installation issues. Use this troubleshooting guide to diagnose and fix common rivet joint defects:
Cause: Insufficient air pressure ($<80\text{ PSI}$), low battery voltage, or worn internal tool jaws.
Solution: Check station FRL regulators for proper pressure, charge battery cells, or clean and replace worn tungsten-carbide jaw sets.
Cause: Drilled clearance hole was too large, or the material grip thickness exceeded the rivet rating.
Solution: Drill proper hole tolerances and verify plate thickness against fastener grip range charts.
Cause: The operator held the rivet gun at an angle rather than perpendicular ($90^\circ$) to the surface.
Solution: Re-align the tool head flush against the outer sheet before pulling the trigger.
To keep your rivet guns running at peak OEE (Overall Equipment Effectiveness) and extend internal component life, perform these simple maintenance routines:
Daily Jaw Cleaning: Unscrew the nose housing daily. Clean metal filings and debris from the internal three-piece tungsten-carbide jaws using a brass wire brush, then apply a drop of lightweight lubricant.
Empty Mandrel Containers Regularly: Do not allow spent mandrel collector cups (such as those on 4Woo vacuum systems) to overfill. Pins backing up into the nose assembly can crack internal pistons.
Maintain Air Line Lubrication: Ensure pneumatic stations utilize Filter-Regulator-Lubricator (FRL) units delivering clean, moisture-free air with a light synthetic oil mist.
Inspect Hydraulic Fluid Levels: On heavy hydropneumatic tools like those from Rocol Tools, periodically inspect hydraulic oil levels to prevent loss of stroke length and pulling force.
Learning how to use a rivet gun correctly comes down to careful preparation, maintaining a steady $90^\circ$ perpendicular tool angle, selecting the right fastener grip length, and enforcing proper maintenance routines.
Whether you are assembling lightweight HVAC sheet metal or joining heavy structural transportation chassis:
Rely on the drop-forged strength and fluid power of Rocol Tools for heavy-duty structural riveting applications.
Invest in the smart venturi vacuum systems and digital process control of 4Woo for clean, high-velocity assembly lines.
By combining correct technique with high-performance tooling, your production team can achieve zero-defect joints, safer shop floor operations, and long-term joint reliability.
