FX-LD-240F
| Quantity: | |
|---|---|
Product Description
4Woo offers high-efficiency, portable solutions designed for construction and renovation professionals. Our heavy-duty nail extractors ensure precision and speed, making it easier than ever to remove nails without damaging surfaces.
Whether you are working on wood flooring, pallets, or framing, the 4Woo handheld nail puller delivers maximum power with minimal effort. Experience superior durability and ergonomic design.
Effortlessly remove stubborn or rusted nails with the 4Woo Handheld Nail Puller. High-strength alloy and ergonomic grip ensure superior one-handed operation.
Portable & Lightweight: Easy to carry and operate on any job site.
High Efficiency: Quickly extracts various types of nails and staples.
Durable Build: Constructed for long-lasting performance in tough conditions.
Upgrade your toolkit with 4Woo—the smart choice for professional nail removal. Shop our collection today!

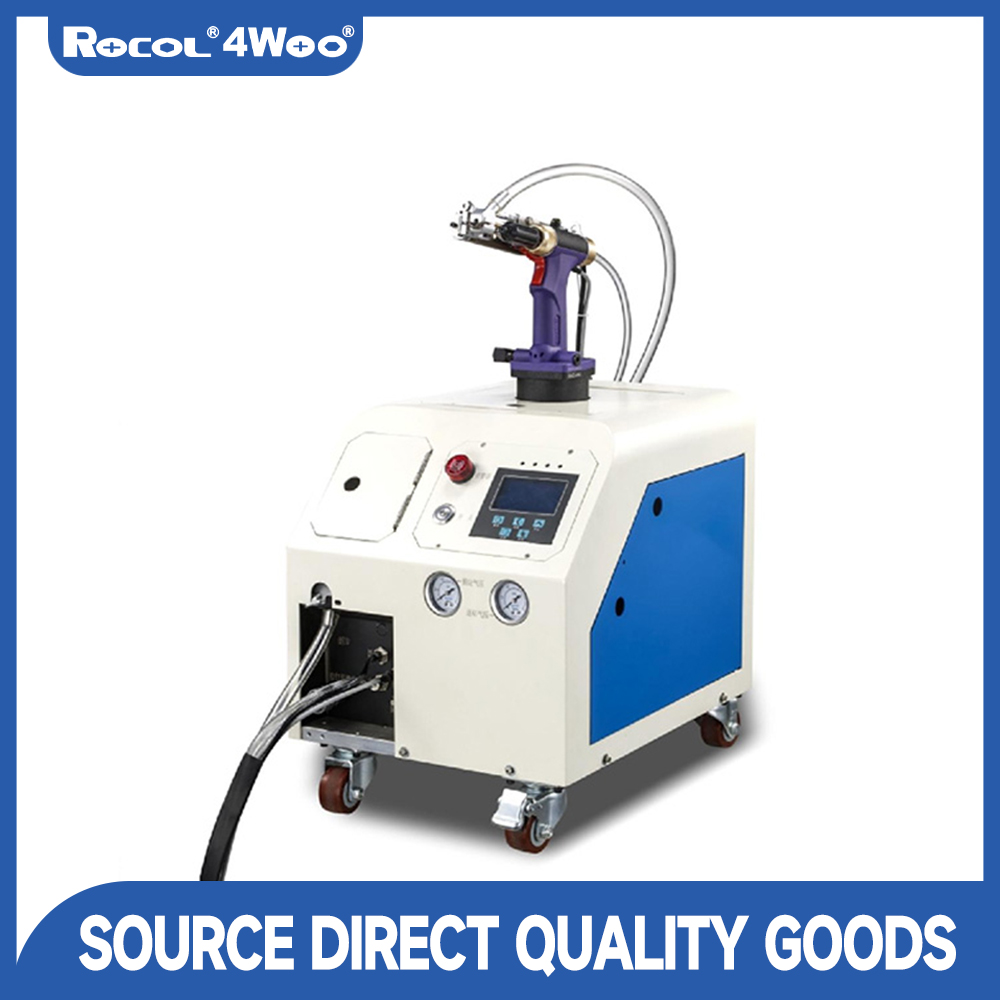

| Mobile casters | 360 degree universal wheel, lightweight, flexible, and smooth to move |
|
| Double opening window door | Convenient maintenance and upkeep, ensuring safety and security |
|
| Automatic feeding | When the rivets are poured into the vibrating plate, they can be arranged in an orderly manner and fed to the nail separation point |
|
| Automatic feeding | At the point where the rivet reaches the nail separation point, it can be reached above the gun nozzle through the nail feeding tube |
|
| Automatic replenishment | After completing one riveting action, the next one is automatically transported to the gun nozzle |
|
| Intelligent counting | LCD display can count the total number of nails nailed every day |
|
| Material shortage alarm | When no rivets reach the point where the nails are separated, the alarm will automatically light up and be accompanied by voice prompts |
|
| Fault alarm | When the machine experiences abnormalities, the alarm light will automatically sound an alarm and provide a prompt |
|
| Quantity error prevention | Can set the number of nails for a single product to prevent missing nails |
|
| Tail nail collection | The core pulling rod can reach the recycling bin through the tail nail tube or use the tail nail to collect the bin |
|
Product Model | External Dimensions | Silo Capacity | Rated Power | Equipment Weight Kg | Riveting Speed | Weight Of Nail |
Working Air Pressure | Rated Air | Nailing speed | Applicable Nail Specifications mm | Tube Length | Length Of Nail Removal Tube | Input Voltage V | Output Voltage |
| FX-LD-240Q2 | 510*390*480 | 4000-5000 | 350 | 59 | 1.2-1.5 | 1.6 | 6 | 8 | 50-60 | 2.4 | 25000 | 2000-3000 | 220 | 24 |
| FX-LD-320Q2 | 510*390*480 | 2000-3000 | 350 | 59 | 1.2-1.5 | 1.6 | 6 | 8 | 50-60 | 3.0-3.2 | 25000 | 2000-3000 | 220 | 24 |
| FX-LD-400Q2 | 510*390*480 | 2000-2500 | 350 | 59 | 1.2-1.5 | 1.7 | 6 | 8 | 50-60 | 4.0 | 25000 | 2000-3000 | 220 | 24 |
| FX-LD-500Q2 | 510*390*480 | 1000-1500 | 350 | 59 | 1.2-1.5 | 1.7 | 6 | 8 | 50-60 | 4.8-5.0 | 25000 | 2000-3000 | 220 | 24 |

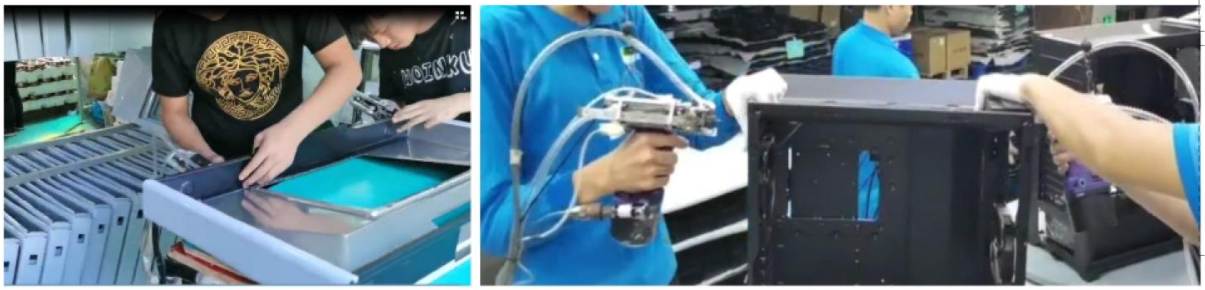

The automatic rivet pul ling machine is applicable tothe rivet pulling operation of connecting two or morelayers of plates of various materials andthicknesses with rivets, which is widely used in the rivet pulling operation of chassis, cabinet, lighting, automobilesmalI household appl iances, electr ic oven,Baijiupackaging and other industries.
