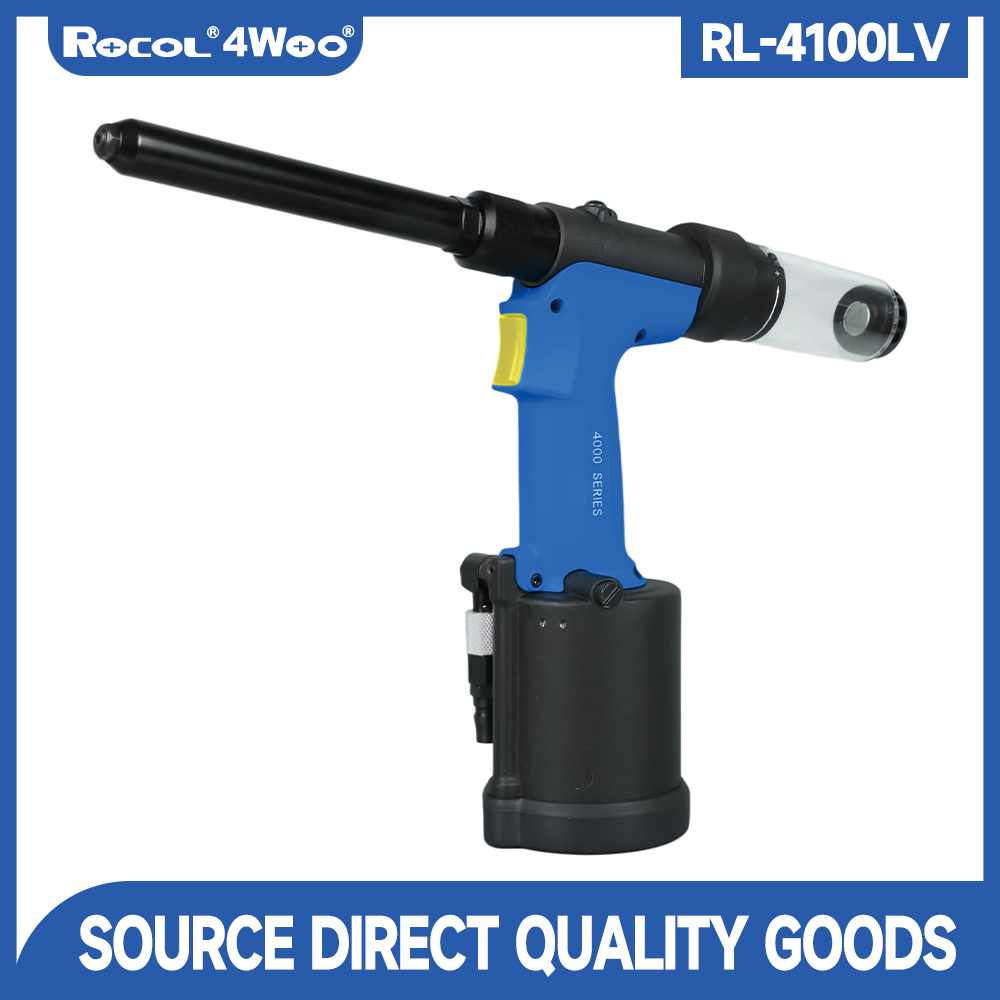

RL-4100LV Pneumatic Rivet Gun (Bend Angle Model)

RL-4100LV Pneumatic Rivet Gun (Bend Angle Model)|The tool head features an elongated structure, designed as an ideal product for narrow and deep-hole riveting operations. By increasing the diameter of the front nozzle shell, it enables use in more confined spaces, thereby expanding the application range of riveted products.

  • RL-4100LV

Availability:
Quantity:
Inquire

Product Description

RL-4100LV Pneumatic Rivet Nut Tool Details

The tool head features an elongated structure, designed as an ideal product for narrow and deep-hole riveting operations. By increasing the diameter of the front nozzle shell, it enables use in more confined spaces, thereby expanding the application range of riveted products.
The tool head features a rounded corner structure, designed for use in confined workstations with restricted riveting spaces or positions.
The tool head features a offset head structure, designed for use in workstations with restricted riveting spaces, positions, or orientations.

RL-4300 pneumatic riveting gun

RL-4300M

RL-4100 pneumatic riveting gun

RL-4100

RL-4400 pneumatic riveting gun

RL-4400M


Specifications

RL-4100LV Pneumatic Rivet Nut Tool Specification


model


Soldering range


weight


height


Increase the length of the gun barrel housing


Itinerary


Atmospheric

Pressure


Tensile Force


RL-4100SV


Φ2.4-Φ4.0（Fe）


1.24kg


242mm


150mm


18mm


5-7bar


4800N-6700N


RL-4100MV


Φ3.2-Φ4.8（Fe）


1.49kg


274mm


152mm


18mm


5-7bar


8400N-11700N


RL-4100LV


Φ4.0-Φ6.4（Fe）


1.67kg


286mm


152mm


20mm


5-7bar


10800N-15100N


RL-4100HV


Φ4.8-Φ6.4（stainless steel）


2.49kg


327mm


165mm


25mm


5-7bar


16900N-23670N


RL-4300M


Φ2.4-Φ4.0（Fe）


1.75kg


290mm



18mm


5-7bar


8400N-11700N


RL-4400M


Φ3.2-Φ4.8（Fe）


1.1kg


242mm



18mm


5-7bar


8400N-11700N
