The global automotive transition to electric mobility has transformed vehicle architecture from the ground up. At the heart of every modern Electric Vehicle (EV) lies its battery pack—a massive, structurally integrated enclosure containing high-voltage modules, thermal management channels, and complex electrical routing. Ensuring the mechanical integrity, thermal stability, and sealing of these battery trays is one of the most critical challenges in EV manufacturing today.
Traditional thermal joining techniques, such as resistance spot welding or laser welding, introduce significant risks when applied to battery pack enclosures. Excessive heat can warp thin-gauge aluminum sheets, compromise protective anti-corrosion coatings, and introduce dangerous thermal risks near sensitive lithium-ion cells. As a result, cold mechanical joining—specifically advanced blind riveting, structural lockbolting, and self-piercing riveting (SPR)—has emerged as the premier assembly methodology for EV battery trays and pack covers.
In this comprehensive guide, we explore the engineering requirements for EV battery assembly and examine the top riveting solutions driving production efficiency, safety, and joint reliability across modern battery lines—featuring industry benchmark platforms from Rocol Tools and 4Woo.
Designing and manufacturing an EV battery pack enclosure requires balancing structural rigidity with lightweight efficiency. Battery trays must protect sensitive modules during severe crash impacts while remaining completely sealed against moisture and dust ingress.

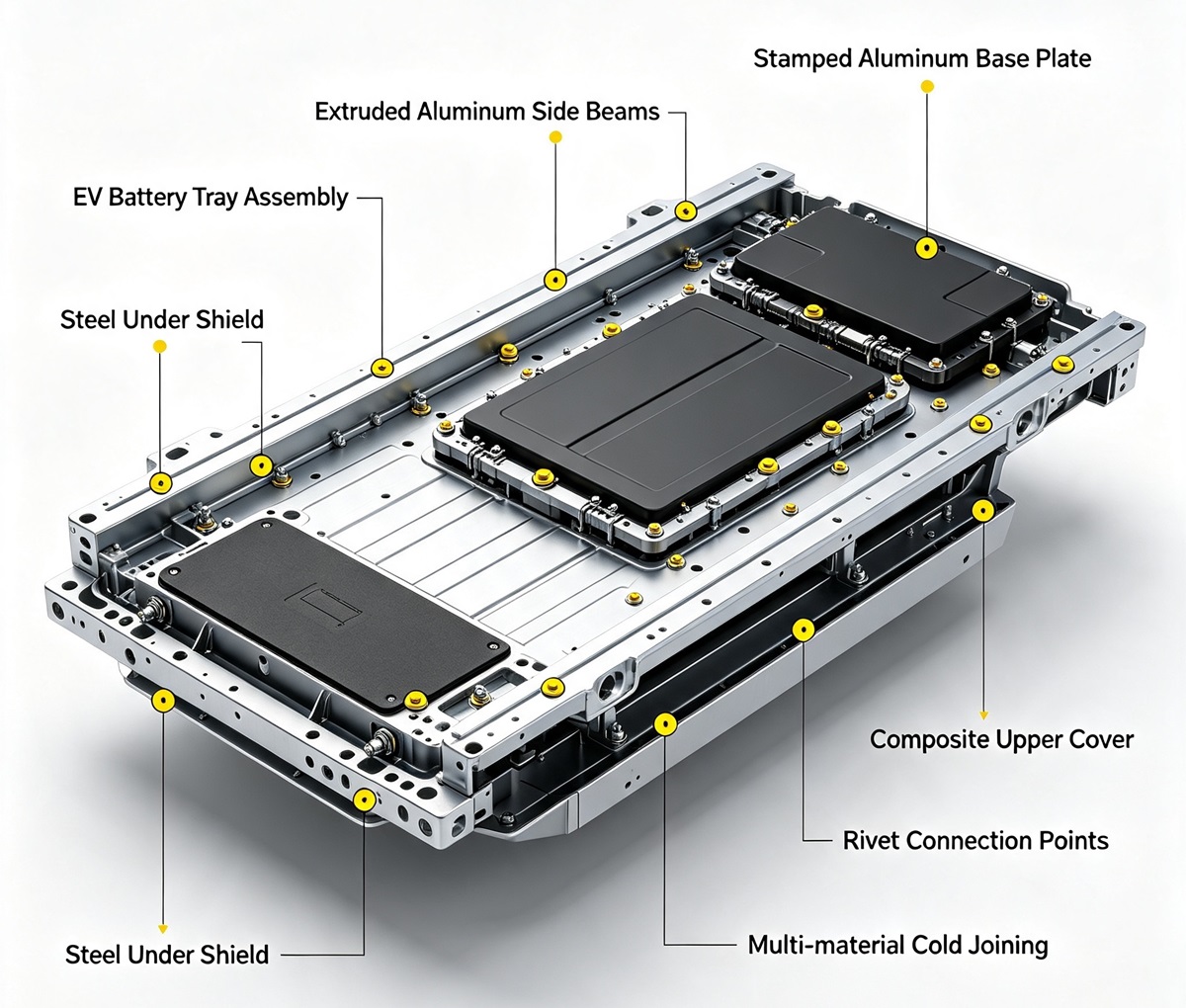

To offset the heavy mass of lithium-ion cells, automotive engineers utilize lightweight materials throughout the battery structure:
Extruded Aluminum Alloys: Used for side frame members and structural crash beams due to their high energy absorption capabilities.
Stamped Aluminum Sheets: Utilized for floor panels, top covers, and internal thermal cooling plates.
Ultra-High-Strength Steel (UHSS): Integrated into undertray armor to shield against road debris impacts.
Composite Materials: Adopted for top covers to reduce overall vehicle weight.
Joining these dissimilar materials via fusion welding creates brittle intermetallic compounds and joint degradation. Mechanical riveting provides high shear and tensile strength across dissimilar materials without melting the base metals.
Thermal management is paramount during battery assembly. Applying intense localized heat near cooling channels or battery cells can deform micro-channel cooling plates, leading to coolant leaks or short circuits. Because riveting is a cold-joining process, it eliminates heat-induced thermal warpage entirely, maintaining tight dimensional tolerances across large battery tray enclosures.
Lithium-ion battery module assembly requires cleanroom or near-cleanroom environments. Stray metal shavings, burrs, or loose rivet mandrels can cause short circuits if they land inside high-voltage electrical architecture. Fastening tools used in EV battery lines must incorporate sealed waste management systems to capture metal debris instantly.
Selecting riveting machinery for EV battery production requires auditing specific technical capabilities to ensure zero-defect output.
Setting high-strength aluminum and stainless steel structural fasteners requires precise force management. The linear pulling force ($F$) required to set a structural blind rivet depends on the cross-sectional area ($A$) of the mandrel pin and its ultimate tensile strength ($\sigma$):

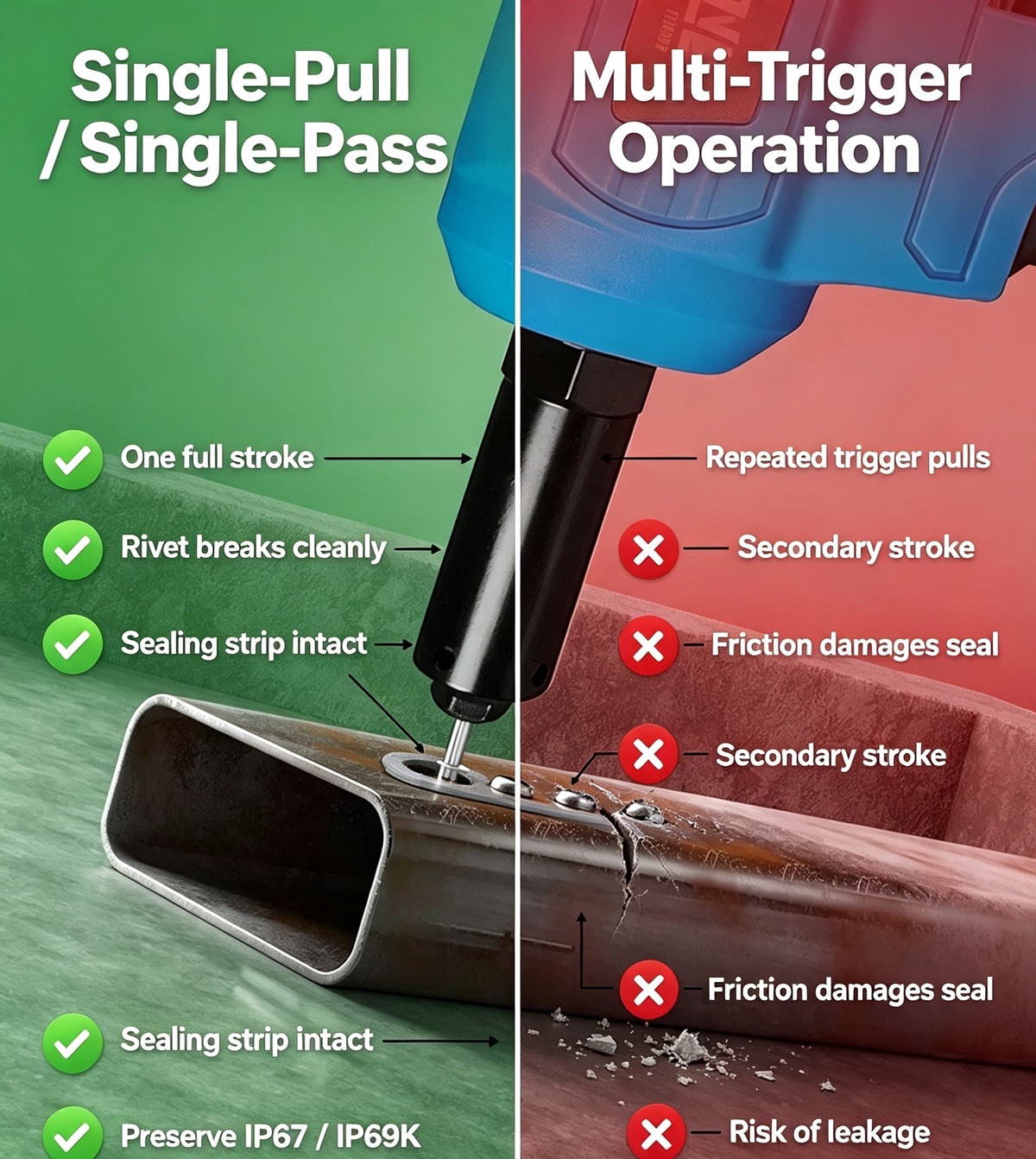

Battery assembly tools must deliver pulling forces ranging from $15,000\text{ N}$ to over $30,000\text{ N}$ alongside stroke lengths between $20\text{ mm}$ and $28\text{ mm}$. This ensures that long-grip structural fasteners and monobolts are set cleanly in a single rapid stroke, eliminating multi-pull vibrations that could disturb pre-applied adhesive seals.
In EV battery manufacturing, a single failed joint can compromise the IP67/IP69K environmental seal or lead to structural failure during crash testing. Advanced battery line tools feature embedded transducers that monitor stroke distance and applied force in real time. If a rivet sets incompletely, the system flags the operator immediately, preventing defective battery packs from moving downstream.
Evaluating performance standards from leading equipment manufacturers reveals how specialized tooling solves unique battery tray assembly challenges. Two benchmark brands driving productivity and precision across global EV facilities are Rocol Tools and 4Woo.
| Engineering Benchmark | ROCOL TOOLS (Structural Frame Power) | 4WOO (Cleanroom Precision & Smart QC) |
| Primary Specialty | Drop-Forged Metallurgy & High-Force Hydraulics | High-Speed Pneumatics & Smart Sensor Verification |
| Target Battery Application | Cast Aluminum Side Beams, Steel Undertray Armor | Aluminum Top Covers, Internal Trays, Module Brackets |
| Mandrel & Waste Control | Heavy Mechanical Gravity Collectors | Automated Venturi Vacuum Extraction |
| Quality Verification | Thermal Fluid Endurance & High Pull Output | Real-Time Microprocessor Sensor Logic & LED Feedback |
| Ideal Production Zone | Heavy Tray Frame & Crash Structure Cell | High-Velocity Pack Cover & Enclosure Module Cell |
For heavy-duty battery structures requiring high-tensile fasteners, large-diameter monobolts, and thick extruded aluminum frame joining, Rocol Tools represents a primary engineering benchmark.
EV battery tray side sills and crash cross-members utilize thick-gauge extruded aluminum joined with heavy structural fasteners. Rocol Tools builds its hydropneumatic and hydraulic platforms with drop-forged alloy steel frames and tungsten-carbide three-piece jaw sets. This heavy-duty construction prevents frame flex and jaw slippage under continuous high-force cycles ($20,000\text{ N}$ to $40,000+\text{ N}$).
Automated battery lines operate on continuous multi-shift schedules. Thermal buildup inside tool cylinders can cause hydraulic fluid to thin, leading to force drops. Rocol Tools incorporates internal heat-dissipation channels and high-viscosity oil loops, ensuring consistent pulling force during non-stop battery tray production.
Where battery assembly demands rapid cycle times, cleanroom debris control, and real-time process monitoring, 4Woo leads the sector with intelligent pneumatic and hydropneumatic tools.
A signature innovation of the 4Woo platform is its automated venturi vacuum extraction system. The mechanism creates continuous negative air pressure at the nosepiece to hold rivets securely at any angle—including upside-down during battery undertray fastening. Upon snapping, the spent metal mandrel pin is drawn instantly into a clear rear collection container. This prevents sharp metal pins from dropping into sensitive battery modules or puncturing cooling channels.
4Woo embeds digital microprocessors into its smart riveting tool series. Internal sensors track stroke displacement and pressure curves in real time. If a fastener fails to set completely due to hole misalignment or joint thickness variation, the 4Woo system provides visual LED status indicators and sends data to the station PLC, ensuring $100\%$ quality traceability.
Procurement managers must calculate the Total Cost of Ownership (TCO) when specifying riveting equipment for EV battery lines:
$$\text{TCO} = \text{Initial Tool Capital} + \text{Utility Overhead} + \text{Maintenance Costs} - \text{Productivity \& Quality Gains}$$
| Evaluation Dimension | EV Battery Assembly Condition | Recommended Solution |
| 1. Fastener & Force Requirements | Structural Side Beams / Steel Armor Thin Aluminum Covers / Internal Brackets | Heavy Hydraulic Tools (e.g., Rocol Tools) High-Speed Pneumatic / Vacuum Tools |
| 2. Cleanroom & Waste Management | Sensitive Module Cells (Zero-Debris) Off-Line Maintenance & Repair | Venturi Vacuum Extraction (e.g., 4Woo) Cordless Lithium-Ion Platforms |
| 3. Traceability & Compliance | IP67 Sealing & Zero-Defect Line Standards | Smart Microprocessor & Sensor Tracking |
To maintain peak Overall Equipment Effectiveness (OEE) and prevent line shutdowns, battery plant maintenance teams should execute a strict maintenance checklist:
Shift Mandrel Evacuation: Empty spent mandrel collection containers at the start of every shift change to prevent back-pressure jams inside the drive mechanism.
Weekly Jaw Assembly Inspection: Unscrew the front nosepiece housing. Clean metal filings from the three-piece tungsten-carbide jaw teeth using a brass wire brush.
Monthly Hydraulic Seal Check: Inspect hydraulic cylinders and O-ring seals for fluid leakage, applying high-viscosity synthetic lubricant to the jaw pusher cone.
Air Pressure Calibration: Ensure incoming compressed air regulators maintain pressure between $5.5\text{ bar}$ and $7.0\text{ bar}$ for optimal tool performance.
As electric vehicle production scales globally, mechanical riveting continues to prove itself as the safest, cleanest, and most reliable joining technology for EV battery pack enclosures. By eliminating thermal distortion, accommodating multi-material designs, and supporting automated quality verification, modern riveting machinery directly addresses the structural demands of next-generation battery architecture.
For heavy structural tray frames, extruded aluminum side sills, and high-tensile steel undertrays, rely on the drop-forged strength and raw hydraulic power of Rocol Tools.
For high-velocity pack cover assembly, cleanroom debris control, and digital process verification, invest in the smart, vacuum-assisted tooling ecosystems of 4Woo.
By matching tooling capabilities to fastener specifications and cleanroom standards, EV manufacturing leaders can build safer, faster, and more efficient battery assembly lines.
