In the automotive assembly sector, the mechanical methods used to join chassis structures, body panels, and internal subframes directly dictate a vehicle's crash safety ratings, NVH (Noise, Vibration, and Harshness) characteristics, and overall operational lifespan. Modern automotive manufacturing relies heavily on lightweight materials—such as high-strength thin-gauge sheet metal, advanced aluminum extrusions, carbon fiber composites, and hydroformed tubular structures.
While these materials minimize vehicle curb weight and maximize fuel or battery efficiency, they present a major engineering challenge: they are inherently too thin to host reliable, direct-tapped threads. Traditional thermal welding nuts introduce localized heat zones that warp precision stampings, weaken localized metal grain structures, and damage advanced anti-corrosion zinc or e-coating surfaces.
The definitive engineering response to this constraint is the industrial blind rivet nut (or nutsert). However, deploying these heavy-duty threaded inserts across high-speed automotive assembly networks demands specialized tooling.
This comprehensive technical guide explores the engineering principles of automotive blind riveting, classifies custom tool configurations, details the parameters of strict process control, and highlights how industry pioneers like Rocol Tools and their intelligent 4Woo platform are advancing smart automotive factory floors.
Implementing a high-performance fastening framework on an automotive production line requires a deep understanding of the mechanical physics involved during the material deformation phase.
A reliable automotive joint depends on the exact execution of two mechanical parameters: clamp force and radial hole expansion.
Automotive chassis components are subjected to relentless dynamic loading and high-frequency harmonic vibrations from the road. When a custom heavy-duty rivet nut gun sets an insert, it applies a high-tonnage linear axial pull, collapsing the unthreaded sleeve of the nut behind the blind side of the automotive panel. This action creates a high permanent clamp force that squeezes the metal panels together, relying on surface friction to prevent any lateral joint shifting.
To maximize the spin-out torque resistance of a metric insert, the rivet nut body must expand radially until it is pressed tightly against the inner walls of the pre-drilled or laser-cut hole cavity. If an installation tool provides insufficient pulling force or uncalibrated stroke lengths, a microscopic gap will remain. Under operational driving stresses, this gap allows the insert to work loose, leading to structural rattling or complete fastener failure during secondary component assembly.
Thread galling is a form of severe adhesive wear that occurs when high-tensile fasteners are friction-heated under intense torque loads. In automotive assembly utilizing stainless steel or aluminum rivet nuts, if a tool shifts off-center or pulls unevenly, the internal metric threads can instantly lock up and weld to the tool mandrel, destroying the tool head and halting production. High-quality custom industrial tools must ensure absolute axial alignment throughout the entire cycle.
Conversely, if an installation tool applies force past the structural limits of a fastener, it will over-set the insert. Over-setting stretches internal threads, distorts the external countersunk flange, and induces microscopic stress fractures in specialized automotive aluminum sheets, compromising the vehicle's structural integrity.
Automotive facilities must select their industrial riveting tool architecture based on continuous cycle volume, operator mobility, layout flexibility, and Total Cost of Ownership (TCO).

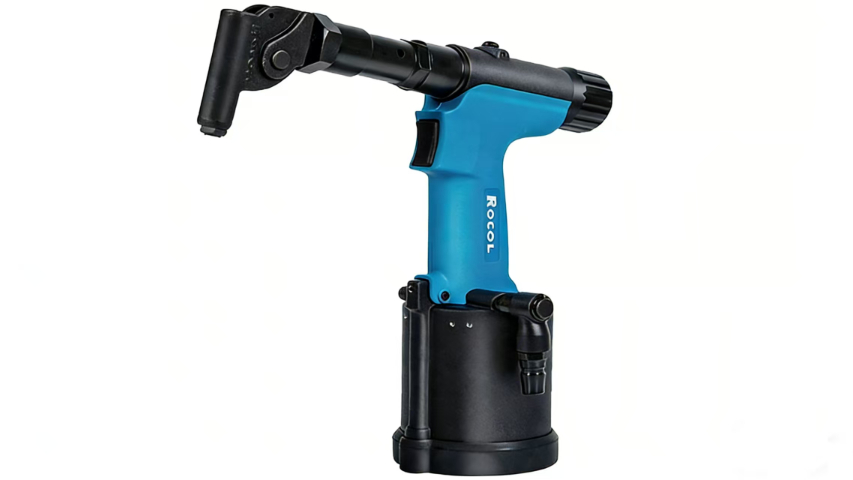

For decades, hydro-pneumatic (air-over-oil) tools have served as the traditional workhorses of high-speed automotive sub-assembly benches due to their high power-to-weight ratios.
Hydro-pneumatic tools rely on shop compressed air networks to drive a wide pneumatic piston, which compresses hydraulic oil into a secondary chamber. This action generates massive linear force multiplication at the tool head, keeping the handheld tool lightweight because the main power unit is separated from the operator's grip.
Despite their power, hydro-pneumatic tools introduce notable production challenges. When multiple heavy-duty guns cycle simultaneously on a single air line, pressure fluctuations can cause inconsistent rivet nut settings. Furthermore, air lines carry moisture that degrades internal seals, resulting in fluid leaks that can contaminate pristine automotive body surfaces.
To achieve the agility required by modern manufacturing layouts and lean production cells, automotive plants are rapidly transitioning away from rigid air lines in favor of smart, battery-powered cordless systems.
Modern cordless automotive riveting tools replace fluid cylinders with high-efficiency brushless motors, planetary gearboxes, and precision ball screws. This architecture converts rotational electrical energy directly into powerful linear pull forces, completely eliminating air hoses, central compressor line leaks, and oil seal failures.
At the absolute forefront of this automotive cordless transition is Rocol Tools with their flagship 4Woo heavy-duty smart cordless riveting platform. Engineered specifically to tackle the high-volume, high-tonnage demands of automotive assembly, the 4Woo series easily installs structural blind inserts from M3 up to M12 sizes in steel and stainless steel alloys.
Powered by high-capacity, industrial lithium-ion batteries, the advanced electronic drivetrain of the Rocol Tools 4Woo features an active voltage regulation loop. While standard consumer battery tools lose torque as the cell charge drains, the 4Woo delivers identical high-tonnage pulling force from the first cycle to the last. This gives automotive line managers the consistent performance of a hardwired tool combined with the complete physical freedom of a cordless device, allowing operators to move smoothly inside car cabins and around large vehicle bodies.
In Tier-1 automotive manufacturing, visual quality checks alone are insufficient for structural compliance. Industry 4.0 regulations require an automated, digital validation record for every single fastening joint executed on the line.
Intelligent cordless platforms like the 4Woo act as active data collection points within an automotive plant's Manufacturing Execution System (MES).
| Manufacturing Variable | Legacy Hydro-Pneumatic Systems | Rocol Tools 4Woo Smart Platform |
| Primary Power Delivery | Plant compressed air (Unregulated PSI) | High-Voltage Li-Ion Battery & BLDC Motor |
| Control Parameter Mode | Fixed mechanical stroke adjustment | Digital setting via force or stroke profiling |
| Data Tracking Capabilities | Completely analog (None) | Integrated Bluetooth/Wi-Fi data stream |
| Error Flagging Logic | Relies on post-assembly manual quality check | Real-time cycle curve verification on the line |
Throughout a single installation cycle, embedded load cells and linear encoders inside the Rocol Tools 4Woo monitor the exact execution curve of pulling force against stroke displacement thousands of times per second.
If an operator encounters an oversized hole or an omitted panel layer, the tool instantly detects that the physical curve falls outside its programmed compliance window. The 4Woo immediately flags a "Fail" code on its digital panel, illuminates a visual warning indicator, and transmits the error log wirelessly to the central factory network, enabling line supervisors to stop the defective vehicle assembly before it moves further down the production line.
Because automotive assembly spaces often feature restricted access angles, working with a professional OEM/ODM manufacturer allows facilities to tailor tools for specific engineering challenges.
Specialized automotive environments, such as inner wheel wells or engine bays, present difficult geometric clearances. OEM/ODM engineers can develop custom extended nose assemblies, ultra-slim tool heads, or right-angle pulling units to ensure operators can install heavy-duty rivet nuts flawlessly in tight spaces.
ODM manufacturing allows automotive brands to customize the tool's embedded firmware interface, optimize torque curves for proprietary fasteners, and establish unique wireless communication protocols to integrate smoothly with custom smart factory control networks.
To maximize fleet uptime and ensure the long-term reliability of structural joints, manufacturing facilities should enforce strict operational and maintenance protocols.
Laser-Drilling over Punching: In thick structural automotive frames, laser-cut or CNC-drilled holes are superior to raw mechanical punching. Punching can induce microscopic cracking along the inner hole wall, which can expand into structural fractures under high radial installation pressures.
Deburring Protocol: Always ensure that burrs and metal shavings are cleared from between the material sheets before riveting. Trapped debris can prevent proper initial sheet alignment, resulting in loose joints over time under road vibrations.
Mandrel Thread Lubrication: Because high-tensile steel threads experience extreme friction during heavy-duty installations, mandrels must be cleaned with a wire brush and coated with high-pressure lubricants regularly to prevent thread galling and premature snaps.
Jaw Assembly Audits: Weekly clean-outs of the internal jaw mechanisms remove fine metal powder and coating residues, preventing tool slippage and extending component life.
Selecting and configuring the right heavy-duty rivet nut tool fleet directly impacts an automotive plant’s baseline efficiency, safety compliance, and long-term operational costs. While manual options remain essential for mobile field repairs, and pneumatic tools continue to provide fast cycles on fixed assembly benches, the automotive manufacturing sector is rapidly standardizing on the agility, energy efficiency, and total digital traceability of cordless solutions.
By partnering with an experienced manufacturer and standardizing on advanced, connected systems like the Rocol Tools 4Woo, modern fabrication facilities can eliminate the maintenance and energy costs of complex air-compressor networks, protect thin substrates from over-setting, and achieve data-driven quality control for every joint. Balancing mechanical force with intelligent digital process control keeps your assembly workflows highly accurate, fully compliant with international quality standards, and completely future-proof.
