In high-stress structural engineering, securing components under massive dynamic loads, intense harmonic vibrations, and severe environmental exposure is a primary challenge. Heavy-duty manufacturing sectors—such as commercial vehicle chassis fabrication, railway car assembly, agricultural equipment manufacturing, and green energy infrastructure—demand fastening joints that offer absolute structural integrity.
Traditional fastening methods often fall short in these demanding environments. Standard hex bolts can loosen over time due to vibrational fatigue, while structural welding introduces localized thermal stress zones that can warp heavy-gauge plates and destroy specialized anti-corrosion coatings.
To solve these issues, industrial engineers rely on heavy duty blind rivet systems. These high-tensile, large-diameter fastening solutions deliver permanent, vibration-resistant, and high-clamp joints installed entirely from one side of the workpiece.
This comprehensive technical guide explores the mechanical engineering behind high-tensile blind riveting, breaks down the core tool power infrastructures, details critical process control parameters, and highlights how industry innovators like Rocol Tools and their advanced 4Woo platform are optimizing industrial assembly lines.
Implementing a successful structural fastening protocol requires an understanding of the mechanical forces at play during and after installation. Heavy-duty blind riveting is a process of highly controlled material deformation designed to achieve maximum joint efficiency.
Unlike standard commercial pop rivets used in light-duty sheet metal, an industrial structural blind rivet features an engineered mechanical mandel-locking mechanism.

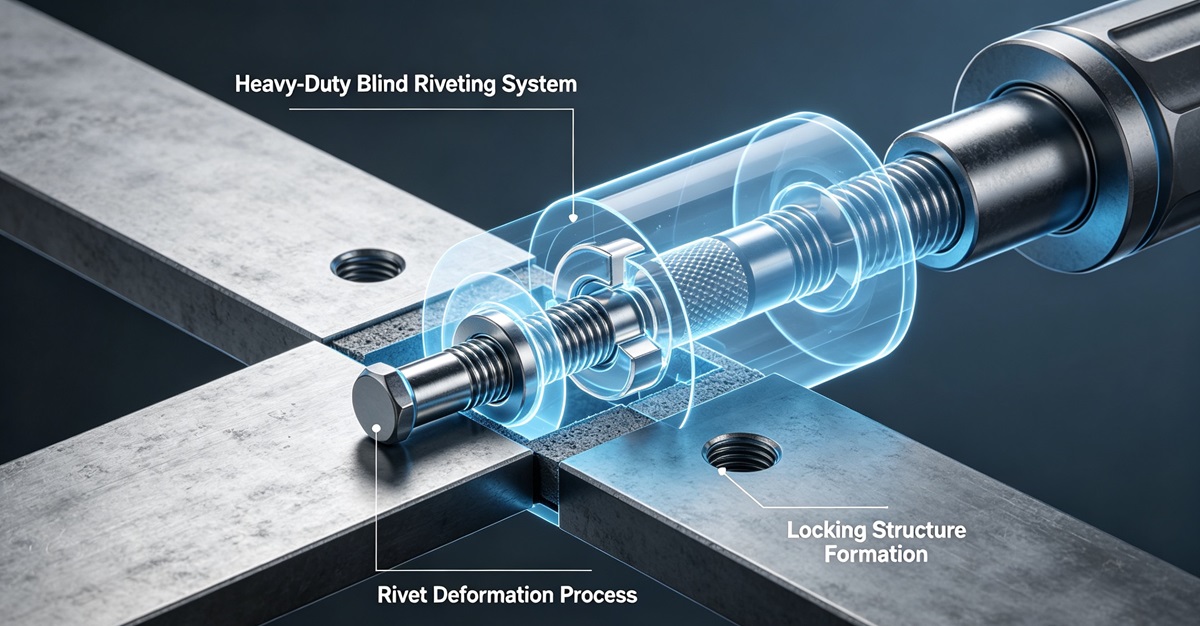

During installation, as the tool pulls the high-strength mandrel through the rivet sleeve, the sleeve expands radially to fill the hole cavity entirely. Once the maximum clamp force is achieved, the mandrel breaks flush with the rivet head, and an internal lock permanently encapsulates the remaining portion of the mandrel inside the shear plane. This turning of the mandrel into a solid structural core gives the fastener its exceptionally high shear and tensile ratings.
High-tensile blind rivets, such as interlocking or structural friction-lock rivets, require high installation forces. The tool must apply enough linear tension to expand heavy-gauge steel or aluminum sleeves, forming a large, neat "blind-side" upset footprint that distributes the clamp load evenly across thick structural plates.
Without precision industrial tooling, high-output structural production lines can suffer from hidden installation defects that result in catastrophic field failures.
If the installation tool lacks the necessary pulling force or drops in pressure mid-cycle, the rivet sleeve will fail to achieve full radial expansion. This leaves a microscopic gap between the fastener body and the host material's hole wall. Under the dynamic loading seen in heavy truck frames or railway tracks, this gap allows localized joint movement, leading to hole elongation, fastener rattling, and eventual joint failure.
In multi-layer structural stack-ups, the sheets must be pulled tightly together before the rivet sleeve begins its radial expansion. If a tool applies its pulling force too abruptly without an initial clamping phase, the rivet will expand between the plates rather than clamping them together, creating a permanent gap that compromises structural shear resistance.
Choosing the right tool infrastructure across an industrial facility is a foundational decision that heavily impacts long-term capital expenditure (CapEx), operational flexibility (OpEx), and worker ergonomics.
For decades, hydro-pneumatic (air-over-oil) tools have been the traditional choice for heavy structural assembly benches due to their high power-to-weight ratio.
Hydro-pneumatic tools rely on shop air lines (typically regulated at 6 to 7 bar) to drive an internal large-diameter pneumatic piston. This piston compresses hydraulic fluid into a tight secondary chamber, creating a massive force multiplication that delivers thousands of pounds of linear pulling thrust to the tool head. This allows the handheld portion of the tool to remain relatively lightweight since the heavy power-generation unit sits separate from the operator’s hand.
Despite their raw power, hydro-pneumatic systems introduce major operational challenges:
Pressure Fluctuations: When multiple heavy-duty tools are cycled simultaneously on a single air ring main, line pressure can drop, causing inconsistent rivet settings.
Low Energy Efficiency: Industrial air compressors run continuously and lose vast amounts of energy to heat dissipation and minor line leaks.
Maintenance Overhead: Air lines carry moisture that causes internal tool corrosion, and hydraulic seals must be replaced frequently to prevent fluid leaks on pristine workpieces.
The transition toward lean manufacturing and Industry 4.0 has driven the development of intelligent, battery-powered cordless riveting tools capable of matching the raw tonnage of heavy pneumatic equipment.
Modern industrial cordless tools replace fluid cylinders with high-efficiency brushless DC motors coupled with heavy-duty planetary gearboxes and precision ball screws. This mechanical arrangement converts high-speed electrical rotation into smooth, immensely powerful, linear axial pulls, eliminating the need for air hoses, oil reservoirs, and complex pneumatic infrastructure.
At the forefront of this technological shift is Rocol Tools with their flagship 4Woo heavy-duty smart cordless riveting system. Engineered specifically to handle high-tensile structural rivets up to 6.4mm (1/4 inch) and larger in steel and stainless steel alloys, the 4Woo platform delivers true industrial-grade pulling force without the restriction of an air hose.
Powered by high-capacity lithium-ion cells, the advanced electronic drivetrain of the Rocol Tools 4Woo features a smart power-management loop. Unlike standard cordless tools that lose torque as the battery drops, the 4Woo regulates voltage to ensure identical, high-tonnage pulling force from the first cycle to the last, making it a reliable choice for flexible assembly cells and heavy equipment manufacturing lines.
In modern automotive, defense, and structural fabrication, visual inspection alone is no longer sufficient to meet strict quality compliance standards. Every single structural joint must be verified and logged digitally.
Intelligent cordless platforms function as active data collection points within a factory’s Manufacturing Execution System (MES).
| Process Variable | Legacy Pneumatic Tools | Rocol Tools 4Woo Smart System |
| Primary Power Source | Compressed Air (Unregulated shop PSI) | High-Voltage Li-Ion Battery & BLDC Motor |
| Force Control Mode | Fixed mechanical stroke | Digitally regulated via real-time sensors |
| Data Tracking | None (Completely Analog) | Wireless transmission via Wi-Fi/Bluetooth |
| Error Flagging | Requires post-production manual check | Instantaneous Pass/Fail alert on the tool |
The Rocol Tools 4Woo monitors both the pulling force (measured in kilonewtons) and the exact stroke displacement (measured in millimeters) continuously throughout the entire rivet setting cycle. The tool compares this real-time data against a pre-programmed, optimized installation curve window.
If an operator encounters an oversized hole (causing the rivet to collapse too quickly) or a missing plate layer (preventing the proper clamp force from being reached), the 4Woo instantly flags a "Fail" error code, lights up a visual indicator on its integrated display, and sends a log to the factory network to stop the defective assembly from moving down the line.
To ensure maximum tool uptime and flawless joint execution, manufacturing plants should enforce strict operational and preventative maintenance protocols.
Drilling over Punching: In thick structural plates, drilled, laser-cut, or CNC-milled holes are preferred over raw punched holes. Punching can induce micro-cracking along the inner wall of the hole, which can expand into structural fractures when the rivet applies high radial pressures during installation.
Deburring Protocol: Ensure all metal shavings and burrs are completely removed from the sheet interfaces. Trapped debris will eventually compress or shake out under field vibrations, resulting in low residual clamp force and joint looseness.
Jaw Assembly Debris Cleaning: Due to the high pulling forces required to break steel mandrels, fine metal scale and anti-corrosion oils naturally accumulate inside the tool nosepiece. Jaws should be removed, cleaned with a wire brush, and inspected for tooth flattening weekly to prevent mandrel slippage.
Mandrel and Jaw Lubrication: Apply dedicated high-pressure lubricants to the tool's jaw mechanism regularly to reduce friction-induced heat during high-speed, continuous-duty assembly shifts.
Heavy-duty blind rivet systems are a vital component of modern structural engineering, bridging the gap between raw mechanical holding power and efficient single-sided installation. While traditional hydro-pneumatic tools remain a fast choice for fixed bench environments, the modern industrial landscape is rapidly adopting the flexibility, energy efficiency, and digital traceability of cordless solutions.
By integrating connected, high-performance systems like the Rocol Tools 4Woo, heavy-duty manufacturing plants can completely eliminate the maintenance and energy overhead of complex air compressor networks, gain absolute data-driven quality control over every joint, and maximize the throughput of their assembly workforce. Selecting the ideal balance of mechanical tonnage and smart process control ensures that your industrial fabrication processes remain highly efficient, regulatory-compliant, and completely secure.
