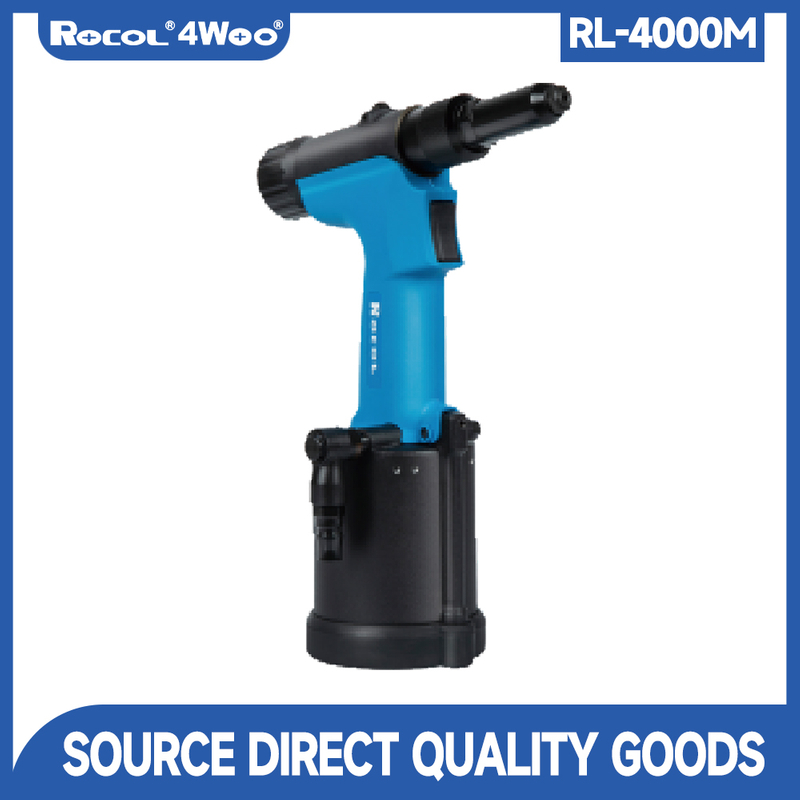

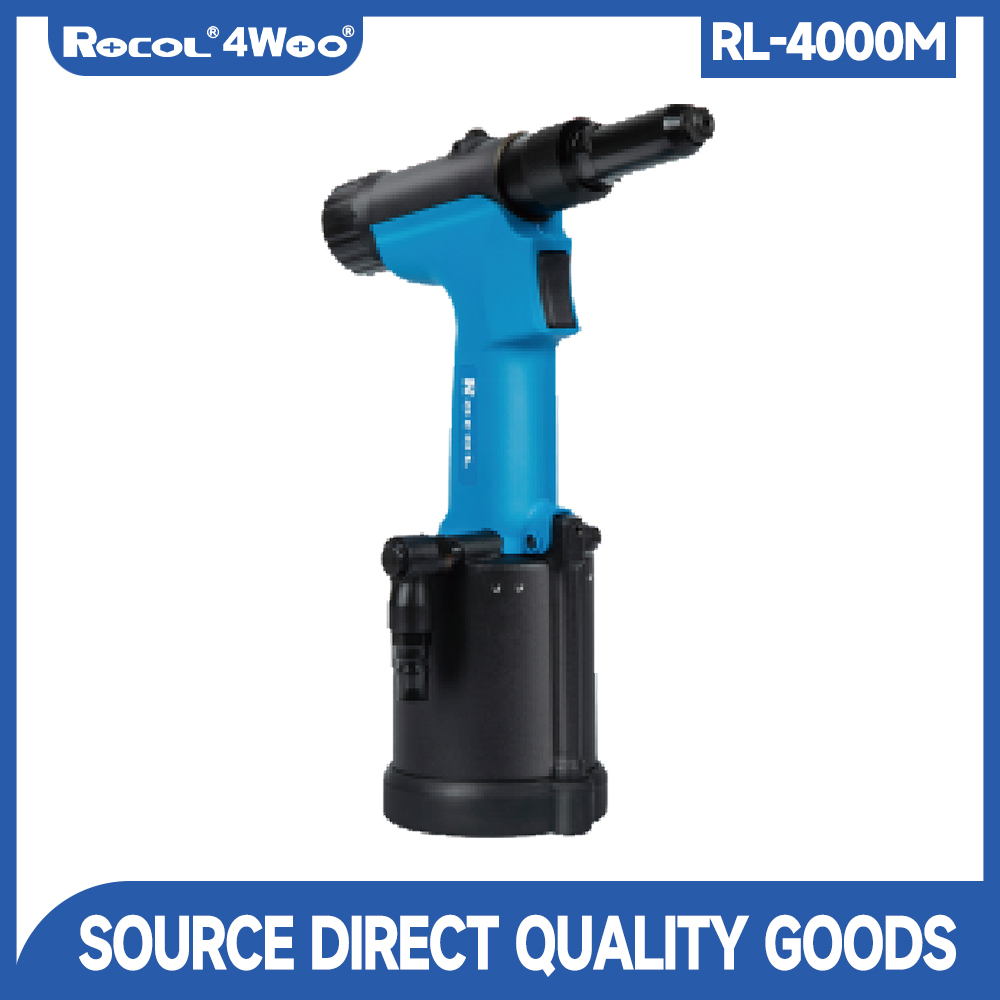

RL-4000M
| Quantity: | |
|---|---|
Product Description
With a compact structure, robust durability, and comfortable operation, this tool delivers stable performance, making it the ideal choice for riveting various materials using Φ2.4MM-Φ6.4MM rivets. Having passed multiple rigorous operational tests and obtained EU CE certification, it ensures safe and reliable performance!
The all-new generation of riveting gun model features an aesthetically pleasing design (without self-suction nail function).
Ergonomic design for enhanced comfort during use.
The quick-release head housing of the riveting gun can be disassembled without any tools, ensuring simple and efficient operation.
With a novel piston-type oil circuit design, the product offers enhanced durability and superior quality reliability.

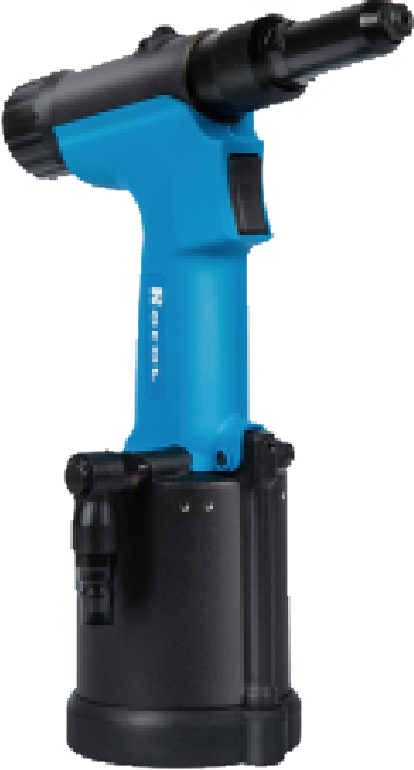

RL-4000M

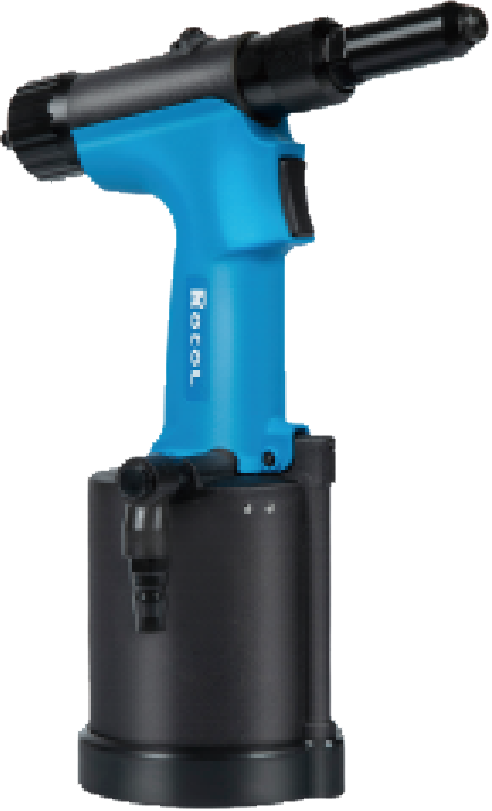

RL-4000L

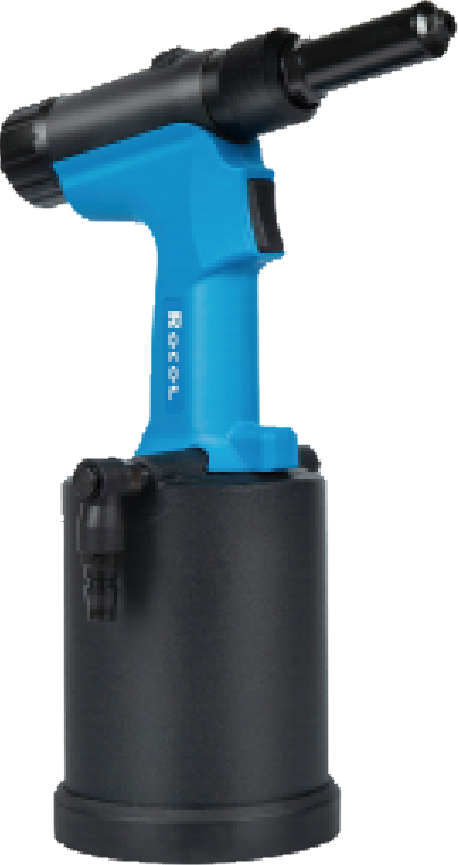

RL-4000H

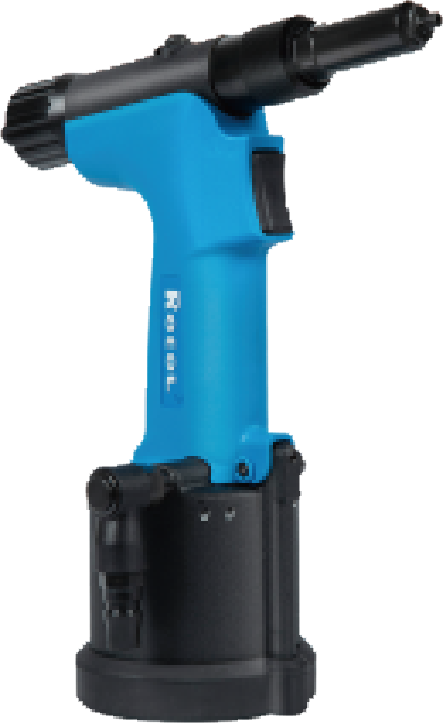

RL-4000S
Specifications
Model | Soldering range | Weight | Height | Length | Itinerary | Atmospheric Pressure | Tensile Force |
RL-4000S | Φ2.4-Φ4.0（ferrum） | 1.0kg | 242mm | 207mm | 18mm | 5-7bar | 4800N-6700N |
RL-4000M | Φ3.2-Φ4.8（ferrum） | 1.29kg | 274mm | 222mm | 18mm | 5-7bar | 8400N-11700N |
RL-4000L | Φ4.0-Φ6.4（ferrum） | 1.42kg | 286mm | 222mm | 20mm | 5-7bar | 10800N-15100N |
RL-4000H | Φ4.8-Φ6.4（stainless steel） | 2.05kg | 327mm | 234mm | 25mm | 5-7bar | 16900N-23670N |
