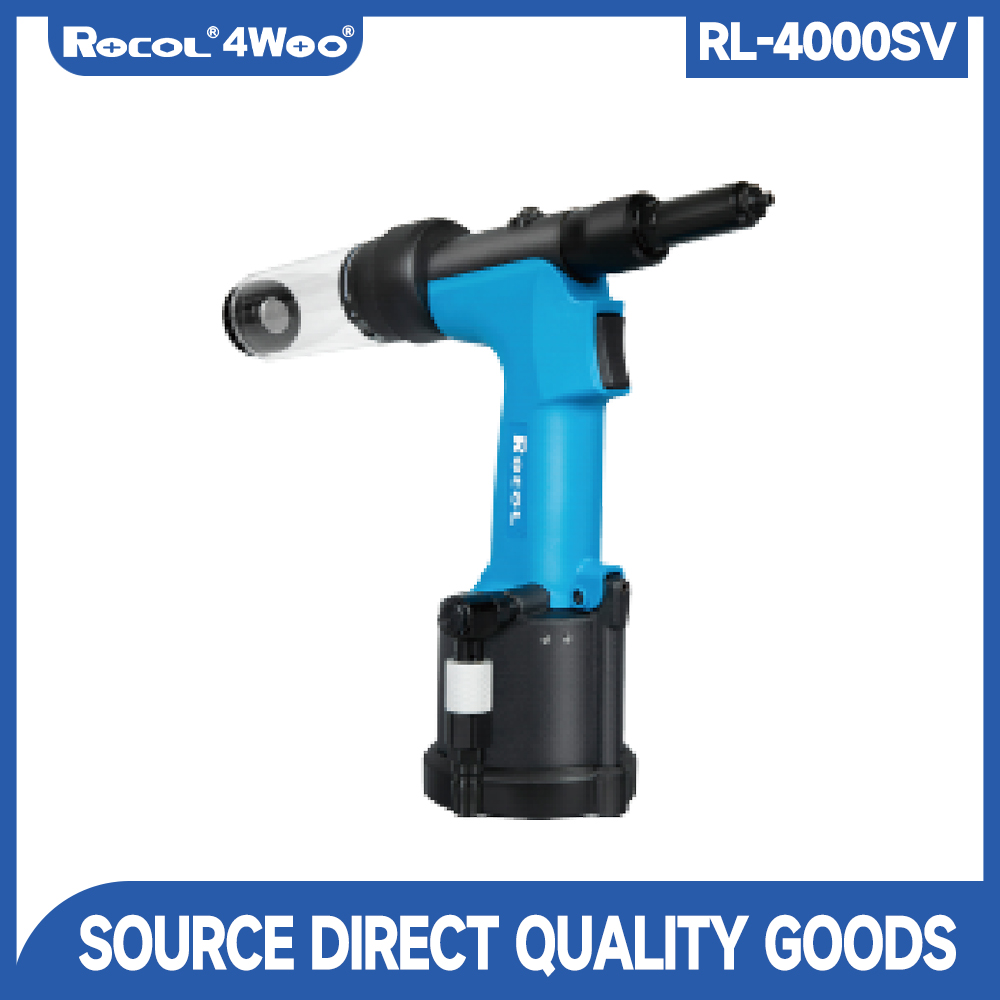

RL-4000SV
| Quantity: | |
|---|---|
Product Description
With a compact structure, robust durability, and comfortable operation, this tool delivers stable performance, making it the ideal choice for riveting various materials using Φ2.4MM-Φ6.4MM rivets.
Having passed rigorous operational tests and obtained EU CE certification, it ensures safe and reliable performance.
The next-generation pull riveting gun features an aesthetically designed exterior with self-suction rivet functionality and ergonomic construction for enhanced comfort.
Its quick-release head housing allows effortless disassembly without tools, ensuring simple and efficient operation.
As a self-suction pneumatic pull riveting tool, this series incorporates a safety mechanism that automatically disengages the rivet suction function upon removing the collection cylinder, ensuring safe and rational design.
The innovative piston-type hydraulic circuit design further enhances product durability and reliability.
RL-4000LV
RL-4000HV
RL-4000MV
RL-4000SV
Specifications
Model | Soldering range | Weight | Height | Length | Itinerary | Atmospheric Pressure | Tensile Force |
RL-4000SV | Φ2.4-Φ4.0（ferrum） | 1.1kg | 242mm | 292mm | 18mm | 5-7bar | 4800N-6700N |
RL-4000MV | Φ3.2-Φ4.8（ferrum） | 1.35kg | 274mm | 301mm | 18mm | 5-7bar | 8400N-11700N |
RL-4000LV | Φ4.0-Φ6.4（ferrum） | 1.53kg | 286mm | 301mm | 20mm | 5-7bar | 10800N-15100N |
RL-4000HV | Φ4.8-Φ6.4（stainless steel） | 2.29kg | 327mm | 326mm | 25mm | 5-7bar | 16900N-23670N |
