In high-volume manufacturing facilities, automotive assembly lines, and aerospace structural shops, speed and structural integrity are the twin pillars of production. When engineers need to secure two components together permanently without the heat distortion of welding or the added weight of heavy threaded bolts, they turn to blind riveting.
While manual rivet tools are sufficient for occasional DIY projects, industrial environments require automated power to sustain production speeds and eliminate operator fatigue. This is where the air rivet gun (pneumatic rivet gun) becomes indispensable. Driven by compressed air, these tools can install thousands of fasteners a day with absolute precision.
If you have ever wondered how does an air rivet gun work, the secret lies in a fascinating interplay of fluid dynamics, mechanical advantage, and metallurgical engineering. This comprehensive guide breaks down the internal physics, structural components, and step-by-step processes that allow compressed air to shatter metal mandrels and create flawless, permanent joints. We will also explore how industry leaders like Rocol Tools design these high-performance systems and how digital B2B procurement platforms like 4Woo streamline the global supply chain for riveting hardware.
To comprehend the internal physics of a pneumatic riveter, we must first look at the specialized mechanical and fluid components housed within its lightweight casing. Unlike a manual tool that relies on raw human grip, an air rivet gun translates air pressure into immense linear pulling force.
Most professional-grade air rivet guns are actually hydro-pneumatic tools. They consist of two distinct power zones:
The Air Cylinder (Pneumatic Chamber): Located at the base or handle of the tool, this chamber receives the compressed air from your shop line. It houses a large pneumatic piston designed to move upward when the trigger is depressed.
The Hydraulic Cylinder (Oil Reservoir): Located in the upper section of the tool body, this sealed chamber contains hydraulic fluid. It connects directly to a smaller hydraulic piston that drives the mechanical pulling mechanism.
The front "business end" of the tool contains the hardware designed to physically manipulate the rivet:
The Nosepiece (Anvil): The removable steel tip that matches the specific diameter of the rivet mandrel. It remains completely stationary, acting as a solid wall that holds the rivet flange in place.
The Clamping Jaws: A set of two or three segmented, hardened steel pieces featuring sharp, serrated teeth on their inner faces.
The Jaw Case: A conical, tapered housing that encloses the jaws. As the jaw case is pulled backward, its internal taper forces the jaws to compress inward, gripping the rivet mandrel.
The entire cycle of installing a blind rivet with an air tool takes less than a second. However, inside the tool, a highly coordinated sequence of pneumatic, hydraulic, and mechanical events occurs.
The operator slides the long, smooth mandrel of a blind rivet into the nosepiece of the air gun. The rivet body is then pushed through the pre-drilled holes of the materials being joined. At this stage, the tool is at rest, and the internal clamping jaws are open.
When the operator pulls the trigger, a directional valve opens at the base of the tool, allowing highly compressed air (typically regulated between 80 to 100 PSI) to rush into the bottom of the pneumatic chamber.
The compressed air pushes the large pneumatic piston upward with significant speed. This large piston is connected to a thin hydraulic rod that plunges into the upper oil reservoir. Because the surface area of the air piston is much larger than the area of the hydraulic rod, the fluid pressure is multiplied exponentially according to Pascal's Principle. This creates a massive, ultra-smooth hydraulic force.
The pressurized hydraulic fluid forces the upper horizontal pulling piston backward, away from the nosepiece.
As the pulling piston retreats, it drags the jaw case along with it. Because the jaw case features a tapered internal wall, this rearward motion forces the internal jaw segments to slide deep into the taper, squeezing them tightly together. The serrated teeth of the jaws bite aggressively into the smooth metal shaft of the rivet mandrel, locking it in place.
As the hydraulic piston continues its powerful rearward stroke, the jaws pull the clamped mandrel linearly back into the gun. Since the front nosepiece of the gun is resting firmly against the flat flange of the rivet, the rivet sleeve cannot move forward.
The tool forces the widened, ball-shaped head at the base of the mandrel directly into the hollow rivet sleeve on the hidden ("blind") side of the workpiece. The soft metal of the sleeve expands radially, swelling outward until it tightly clamps the host materials together against the front flange.
As the materials are compressed to their absolute limit, the resistance increases drastically. The air gun continues to apply pulling force until the tension exceeds the structural integrity of the mandrel's pre-engineered break point (a localized notch in the stem).
When evaluating pneumatic tooling for complex assembly tracks, manufacturing engineers must look beyond raw power. Precision execution prevents material deformation and guarantees a perfect joint every time.
The stroke length of an air rivet gun dictates exactly how far back the internal jaws can travel in a single cycle. If a tool has a stroke length that is too short for a specific long-grip rivet, it will fail to deform the rivet sleeve completely on the first pull, requiring a clumsy double-trigger action. Premium manufacturers carefully calibrate stroke dimensions to match the physical expansion curves of industrial fasteners.
Because an air rivet gun generates thousands of pounds of instantaneous tensile force, its internal parts are subjected to extreme impact stress during the break phase. Inferior tools suffer from rapid jaw dulling or hydraulic seal blowouts due to the intense shockwave created when the steel mandrel snaps.
With a loud, characteristic pop, the mandrel snaps cleanly. The hydraulic pressure drops instantly as the operator releases the trigger. An internal return spring forces the hydraulic piston back to its starting position, moving the jaw case forward. As the jaws move out of the internal taper, they spring open, allowing the broken mandrel stem to slide down a collection tube into a mandrel catcher at the rear of the gun.

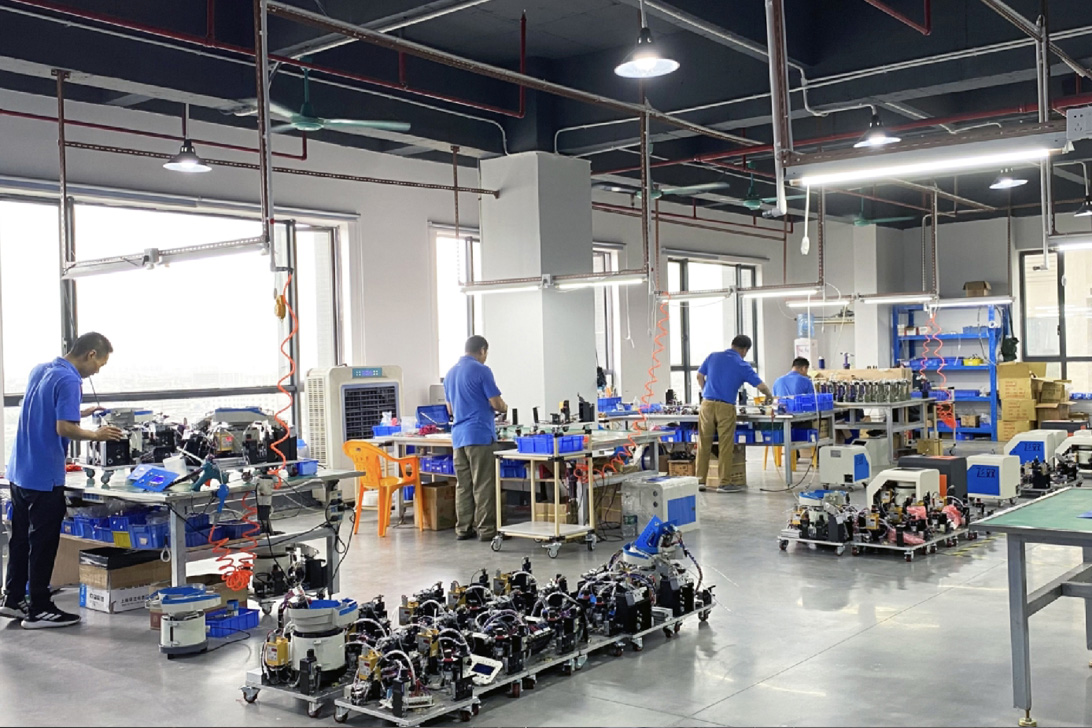

In heavy-duty production facilities where assembly lines run non-stop across multiple shifts, choosing an elite industrial manufacturer is critical to eliminating unexpected downtime. This is where the advanced product engineering of Rocol Tools sets the global benchmark.
The most common failure mode in generic air rivet guns is the degradation of internal oil seals. When hydraulic oil leaks into the air chamber, the tool loses its compression capabilities, resulting in weak, incomplete rivet sets. Rocol Tools solves this vulnerability by engineering ultra-durable, multi-tiered composite seals that isolate the fluid chambers perfectly, guaranteeing millions of trouble-free cycles without a drop in pulling force.
The rapid snap of a heavy-duty steel or stainless steel mandrel creates a high-frequency shockwave that travels down the handle of the tool. Over time, this repetitive impact can cause musculoskeletal injuries for factory operators.
Rocol Tools implements integrated vibration-dampening baffles and balanced composite handles into their pneumatic designs. This absorbs the structural recoil internally, protecting the health of assembly line workers and optimizing daily factory throughput.
Procuring top-tier pneumatic machinery is only the first step in optimizing a manufacturing framework. To maintain continuous production, a factory requires a synchronized supply chain that delivers both premium tools and a steady volume of certified fasteners. Industrial procurement operations rely heavily on comprehensive digital supply platforms like 4Woo to manage these logistics.
A frequent challenge for procurement managers is dealing with fragmented vendors—buying high-end air tools from one source and tracking down compatible blind rivets from another. Utilizing global B2B digital marketplaces like 4Woo solves this friction by allowing procurement officers to source elite pneumatic machinery alongside massive, wholesale hardware inventories of aluminum, steel, and marine-grade stainless steel blind rivets in both metric and imperial measurements.
In structural fields like automotive chassis fabrication or maritime enclosure assembly, using rivets with non-certified tensile break limits can lead to catastrophic product failures. Sourcing through structured global platforms like 4Woo gives engineering teams direct access to verified manufacturing chains and completely traceable hardware lots. This ensures that the physical break tolerances of the fasteners perfectly match the mechanical pulling characteristics of your pneumatic tools.
To maximize return on investment, procurement teams must select the appropriate air rivet gun configuration tailored to their specific material profiles and production volumes.
| Industrial Application | Common Material Stack | Recommended Rivet Gun Type | Critical Specification Target |
| Electronics Enclosures / HVAC | Thin Sheet Aluminum | Compact Lightweight Air Gun | Ultra-low tool weight, fast cycle speed, lower PSI consumption |
| Commercial Trailer Manufacturing | High-Tensile Structural Steel | Heavy-Duty Hydro-Pneumatic Gun | Extended stroke length, high-multiplication hydraulic cylinder |
| Marine Infrastructure & Energy | Marine-Grade Stainless Steel | Reinforced Force-Controlled Air Gun | Ultra-hardened steel jaw sets, extreme tensile pulling threshold |
Even a premium pneumatic tool from a world-class manufacturer will degrade prematurely if it is subjected to dirty shop air or neglected maintenance schedules. Following a strict care protocol preserves tool calibration and extends operational lifespans.
Pneumatic motors and sliding valves require constant lubrication to prevent friction wear against composite seals.
Before connecting the air hose at the start of every shift, disconnect the tool and pour 2–3 drops of specialized pneumatic tool oil directly into the air inlet.
Ensure your facility air line features a dedicated Filter-Regulator-Lubricator (FRL) unit to automatically maintain a moisture-free, oil-misted air stream.
Metal dust and micro-shavings stripped from smooth rivet mandrels will accumulate within the jaw case over time, filling the teeth and causing the gun to slip.
Unscrew the outer nose housing and remove the inner jaw case.
Extract the individual jaw segments and scrub their serrated teeth thoroughly with a fine brass or steel wire brush.
Inspect the teeth for flattening; if the ridges are worn smooth, replace the jaws immediately to prevent mandrel slippage and jamming.
This issue is typically caused by one of three things: low air pressure in your shop line (below 80 PSI), low hydraulic fluid levels inside the tool’s upper reservoir, or worn internal jaws that are slipping on the mandrel stem instead of drawing it back fully. Check your compressor settings first, then inspect the jaw teeth.
An air pop rivet gun works strictly via a straight, linear pulling motion designed to grab a smooth wire stem and snap it off completely. An air rivnut tool (threaded insert setter) features a rotational pneumatic motor that threads a matching mandrel into an internally threaded nut, pulls it back slightly to collapse the sleeve, and then reverses its rotation to back out of the completed thread without breaking anything. For threaded inserts, you must use a dedicated rivnut setter line like those designed by Rocol Tools.
Spent stem jams occur when the vacuum extraction system fails or when the internal jaw spring loses its tension, preventing the jaws from opening fully after a snap. Regularly clean out metal shavings from inside the jaw case, ensure your tool’s mandrel collection container is emptied frequently, and verify that the internal jaw push-spring is intact and well-lubricated.
The air rivet gun is an absolute marvel of industrial engineering, effortlessly turning common shop air pressure into thousands of pounds of calculated, linear pulling force. For manufacturing operations looking to scale up throughput, lower assembly rejection rates, and provide safer, more ergonomic working conditions for their technicians, understanding the internal mechanics of fluid multiplication and jaw engagement is a vital step toward production optimization.
To secure long-term performance and maintain tight quality metrics on the factory floor, anchoring your assembly infrastructure with elite, heavy-duty machinery from trusted creators like Rocol Tools is a highly effective operational strategy. By leveraging the comprehensive, verified sourcing networks provided by global supply platforms like 4Woo, your procurement team can seamlessly manage both the high-performance tools and the certified hardware supplies required to keep your business building with confidence.
