In heavy industries—spanning commercial vehicle manufacturing, aerospace assembly, rail car fabrication, and structural engineering—the integrity of a single fastened joint can dictate the safety and longevity of an entire system. Unlike light-duty applications where fastening mistakes merely cause minor inconveniences, industrial-scale structural joints must withstand constant dynamic loading, high-frequency harmonic vibrations, and severe environmental exposure.
Achieving this level of reliability requires moving beyond basic fastening techniques. Modern manufacturing demands comprehensive Industrial Riveting Solutions that integrate advanced metallurgy, precise process control, and ergonomic tool design. This technical guide explores the engineering fundamentals of structural riveting, analyzes the transition toward automated data-driven assembly, and highlights how industry pioneers like Rocol Tools and their smart 4Woo platform are reshaping factory floors.
To implement a successful industrial riveting protocol, production engineers must first understand the mechanical forces that occur during the installation sequence. Structural riveting is fundamentally a process of controlled material deformation.

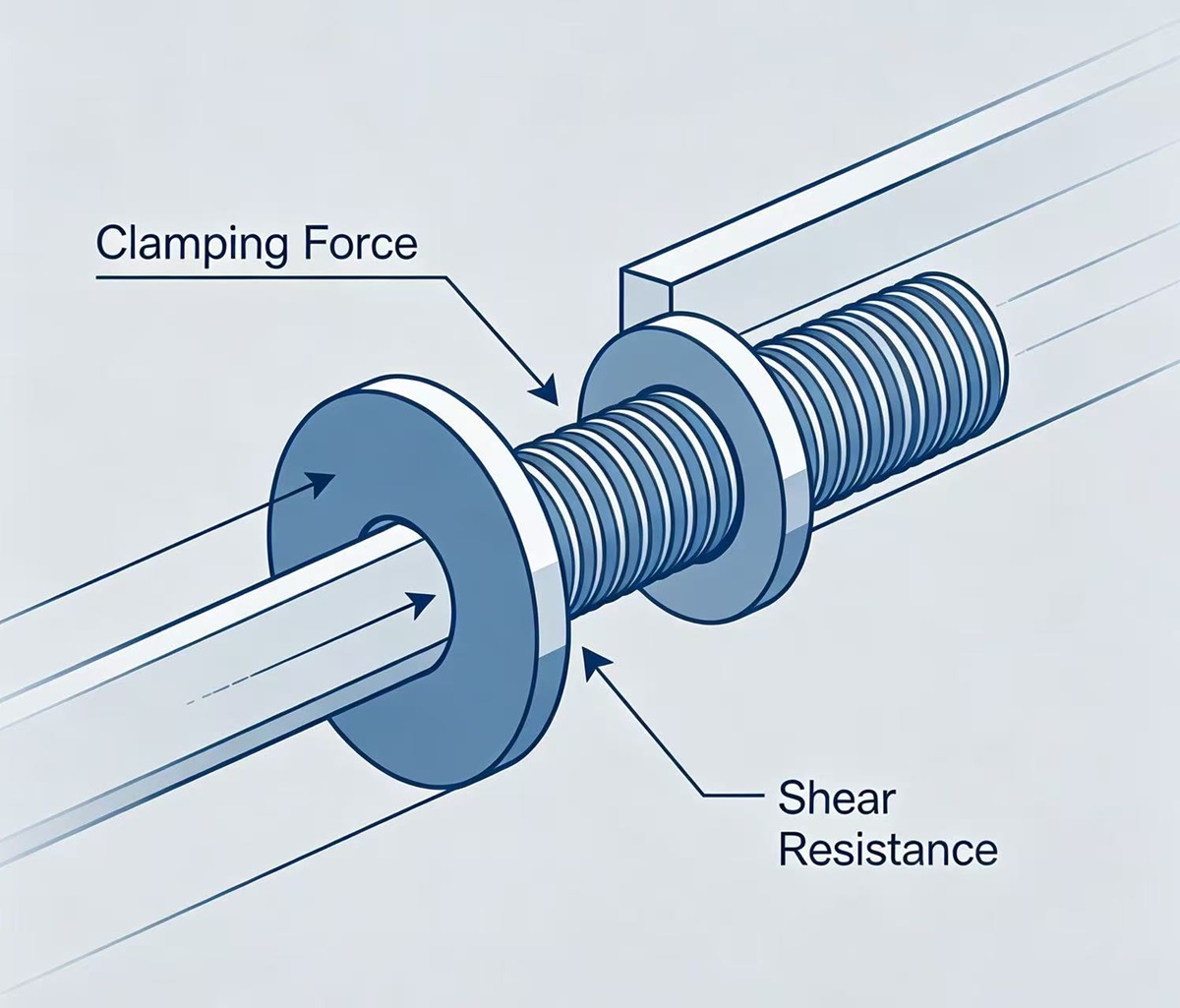

A properly installed structural rivet or rivet nut creates two primary forces that hold an assembly together: clamp force and shear resistance.
Clamp Force: This is the compressive force that holds the multi-layered panels together. It is generated when the riveting tool pulls the mandrel or collar, compressing the fastener until it bulges tightly against the blind side of the rear panel. High clamp force ensures that the friction between the sheets prevents lateral movement.
Shear Resistance: This refers to the fastener's ability to resist forces acting perpendicular to its axis. In high-vibration environments, such as rail chassis, structural rivets must possess exceptional shear strength to prevent the joint from cutting through the fastener shank over time.
Without precision tooling, high-output production lines are frequently plagued by hidden mechanical defects that can lead to catastrophic field failures.
Thread galling is a form of severe adhesive wear that occurs when two metal surfaces slide against each other under high pressure, frequently seen when installing stainless steel inserts. If a tool pulls too quickly or without consistent axial alignment, the internal threads of a rivet nut can seize and destroy the fastener. Furthermore, uneven pressure distribution during deformation induces localized material fatigue, significantly shortening the lifespan of the host substrate.
For a blind rivet or rivet nut to achieve maximum load capacity, it must undergo uniform radial expansion to completely fill the pre-drilled cavity. If a tool under-sets a fastener, a microscopic gap remains. Under dynamic load, this allows a rivet nut to spin out when a matching bolt is torqued down, or causes a structural rivet to rattle, compromising the entire structural assembly.
Choosing the right tool infrastructure is a foundational decision that influences a factory's capital expenditure, operational flexibility, and energy efficiency.
For decades, hydro-pneumatic tools have dominated heavy manufacturing because of their high power-to-weight ratio.
Hydro-pneumatic tools use shop air pressure (typically 5.5 to 7 bar) to drive a large-diameter pneumatic piston, which in turn compresses hydraulic fluid into a much smaller chamber. This intensifies the linear output force up to several thousand pounds of pulling thrust. Because the heavy mechanical components sit back at the compressor or in a floor intensifier unit, the handheld tool remains relatively lightweight.
Despite their raw power, hydro-pneumatic systems introduce major operational challenges. Air lines suffer from pressure drops when multiple tools are triggered simultaneously, leading to inconsistent rivet installations. Furthermore, compressed air networks are highly energy-inefficient, losing massive amounts of power to thermal dissipation and microscopic line leaks.
The shift toward Industry 4.0 has accelerated the adoption of intelligent, battery-driven fastening tools that rival the power of traditional pneumatic infrastructure.
Modern industrial cordless tools utilize advanced brushless DC (BLDC) motors paired with precision planetary gearboxes and heavy-duty ball screws. This mechanical arrangement converts high-speed electrical rotation into smooth, immensely powerful linear pulling forces, eliminating the need for hydraulic oils, air hoses, and complex sealing rings.
At the absolute forefront of this technological shift is the Rocol Tools 4Woo heavy-duty smart cordless riveting system. Engineered specifically to tackle tough industrial fastening environments, the 4Woo platform replaces unpredictable air pressure with precise digital control.
Through an onboard microprocessor, operators can program exact setting parameters based on material hardness and panel stack-up thickness. The tool adjusts its torque curve in real time, delivering identical pulling forces from the first cycle to the last, regardless of battery charge level. This level of process repeatability makes the Rocol Tools 4Woo an invaluable asset for facilities targeting zero-defect manufacturing profiles.
In modern tier-1 automotive and aerospace assembly, "blind" fastening must be backed by transparent, verifiable data logging. If an operator misses a single rivet or under-sets a critical joint, the mistake must be caught immediately on the line rather than during post-production inspection.
Intelligent riveting solutions act as active nodes within a factory’s Manufacturing Execution System (MES), tracking every physical action digitally.
Here is the converted Markdown table based on your flowchart:
| Data Source / Tool | Action / Monitored Metric | Target System / Output | Verification Role |
| Rocol Tools 4Woo | Sends Real-Time Data | Smart Control Panel | Tracks and transmits physical cycle metrics |
| Rocol Tools 4Woo | Monitors Force & Stroke | Pass/Fail Alert | Instantly triggers local quality alerts |
| Smart Control Panel | Verifies Curve Window | MES Cloud System | Confirms if the deformation curve matches compliance windows |
| MES Cloud System | Evaluates Data Profile | Pass/Fail Alert | Logs the digital birth certificate and controls line lockouts |
Smart platforms like the Rocol Tools 4Woo monitor both the pulling force (measured in kilonewtons) and the exact stroke length (measured in millimeters) throughout the entire installation cycle. The tool plots these metrics against a pre-approved, optimized installation curve window. If the fastener collapses too quickly (indicating an oversized hole) or fails to reach the proper force threshold (indicating a missing layer), the tool instantly flags a "Fail" code, alerts the operator, and can lock down the assembly line until the joint is corrected.
Equipped with integrated Bluetooth and Wi-Fi modules, modern industrial tools stream cycle data directly to cloud-based quality management servers. This allows quality managers to maintain an unbroken digital birth certificate for every product assembled, ensuring seamless compliance with strict regulatory and liability standards.
When choosing a fleet-wide riveting solution, procurement specialists must balance the initial purchase price of the tools against long-term maintenance, infrastructure adjustments, and energy costs.
Pneumatic Infrastructure: While a basic pneumatic rivet gun is less expensive upfront, the cost to scale up is incredibly high. Adding tools requires installing industrial air compressors, complex air dryers, lubricators, and hard-piped loop lines.
Cordless Infrastructure: Smart battery tools like the 4Woo series require a higher initial investment per handheld unit. However, they eliminate all pneumatic infrastructure requirements. Scaling a production line is as simple as adding standard electrical outlets for charging bays, making layout reconfigurations fast and inexpensive.
Over a multi-year production lifecycle, the energy efficiency of battery charging systems dramatically outpaces compressed air. Industrial air compressors run continuously, consuming massive amounts of electricity even when tools are idle. In contrast, cordless smart systems only draw power from the grid during active charging cycles, drastically lowering a facility’s overall energy footprint.
| Engineering Metrics | Traditional Pneumatic Solutions | Smart Cordless Platforms (Rocol Tools 4Woo) |
| Primary Power Delivery | Compressed Air & Central Hydraulics | High-Voltage Lithium-Ion & Brushless DC Motor |
| Mobility & Workspace Reach | Restricted by hose lengths and overhead drops | Unrestricted; complete movement freedom |
| Data Logging & MES Linking | None; completely reliant on manual inspection | Advanced; real-time force/stroke verification |
| Energy Consumption Profile | High overhead due to compressor line losses | Ultra-low; demand-based power consumption |
| Maintenance Cycle Tasks | Daily oiling, seal changes, line bleeding | Minimal; jaw cleaning and periodic battery rotation |
Regardless of whether a plant standardizes on pneumatic or cordless equipment, maintaining strict operating guidelines is vital for guaranteeing tool uptime and joint integrity.
Drilling vs. Punching: In thick structural steel, drilled or laser-cut holes are preferred over punched holes. Punching can create microscopic stress fractures around the perimeter of the hole, which can expand when the riveting tool applies high radial pressures.
Tolerance Management: Holes must strictly adhere to the tight tolerances specified by the fastener manufacturer. Even a minor variance of 0.1mm can drastically reduce the push-out and spin-out torque resistance of a structural insert.

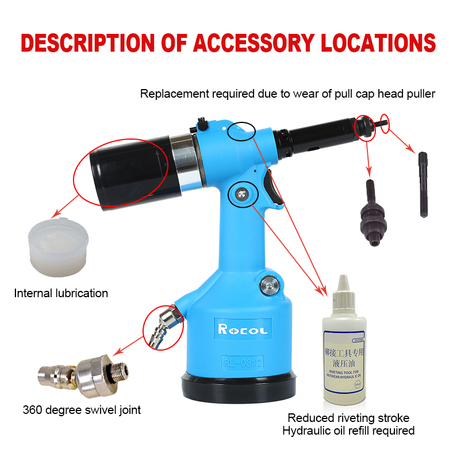

Jaw Assembly Cleaning: Metal shavings and anti-corrosion coatings naturally build up inside a tool's nosepiece over time. Jaws should be removed, cleaned with a wire brush, and inspected for tooth flattening weekly to prevent mandrel slippage.
Mandrel Care: High-tensile mandrels should be regularly coated with dedicated lubricants to reduce heat generation during high-torque cycles, preventing thread galling and premature breakage.
Industrial riveting solutions are an essential pillar of modern structural engineering. While hydro-pneumatic tools remain a reliable choice for fixed, high-speed workstations, the manufacturing industry is steadily shifting toward smart, flexible, and energy-efficient cordless platforms.
By upgrading to a connected, high-performance ecosystem like the Rocol Tools 4Woo, facilities can successfully eliminate the logistical limits of air hoses, capture invaluable quality control metrics for every joint, and optimize their long-term operational costs. Selecting the right combination of power delivery and digital process control ensures your production line remains agile, productive, and completely secure.
