In industrial assembly, structural engineering, commercial transportation, and sheet metal manufacturing, fastener selection dictates joint strength, load capacity, and long-term structural integrity. While light-duty manual or electric rivet guns suffice for small aluminum pins, heavy-duty applications demand the immense tensile capacity of hydraulic and hydro-pneumatic riveters.
A common question among manufacturing engineers, workshop supervisors, and procurement specialists is: What size rivets can a hydraulic riveter install?
Understanding the full spectrum of fastener diameters, materials, and grip ranges that a hydraulic riveter can handle allows manufacturing teams to select the right equipment, prevent jaw slippage, and maintain maximum joint reliability.
Unlike basic manual rivet tools—which are typically limited to lightweight rivets up to 3/16 inch (4.8 mm)—industrial hydraulic and hydro-pneumatic riveting systems span a much wider diameter spectrum.

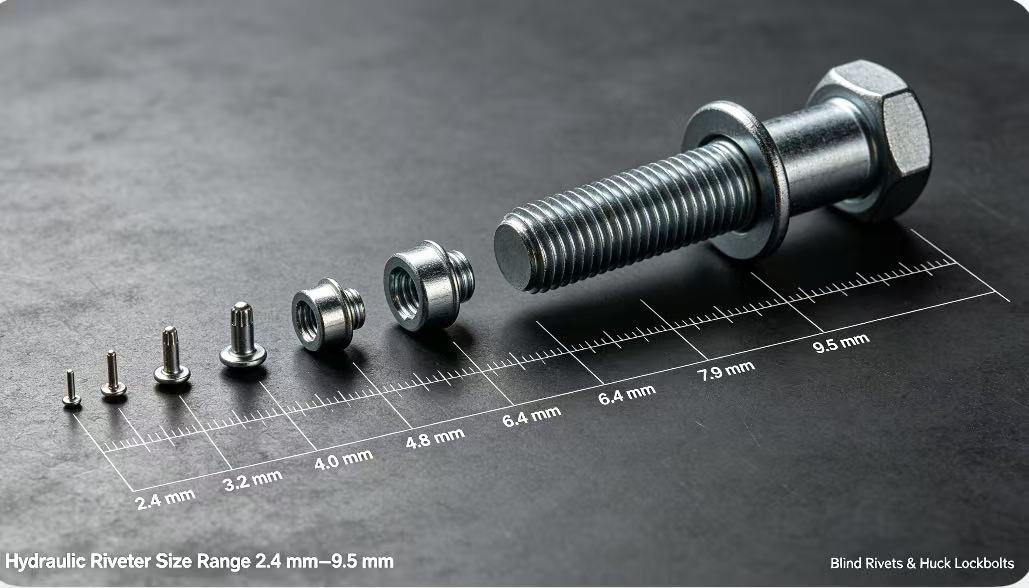

For standard commercial and industrial applications, hydro-pneumatic tools easily handle standard blind rivets (often referred to as pop rivets) across the following common fractional and metric sizes:
3/32 inch (2.4 mm): Used for delicate sheet metal, electronic enclosures, and light trim.
1/8 inch (3.2 mm): The industry baseline for HVAC ducting, light cabinet work, and aluminum signage.
5/32 inch (4.0 mm): Common in commercial bodywork, light trailer assembly, and appliance manufacturing.
3/16 inch (4.8 mm): The standard workhorse size for general automotive, industrial enclosures, and sheet metal fabrication.
Where hydraulic riveters truly excel is in high-tonnage structural joining. Powered by fluid non-compressibility, heavy-duty hydraulic tools pull large-diameter fasteners that standard tools cannot set:
1/4 inch (6.4 mm): High-strength blind rivets used in commercial truck frames, bus bodies, and structural steel panels.
5/16 inch (7.8 mm): Structural rivets and lockbolts used in heavy railcar construction and agricultural equipment.
3/8 inch (9.5 mm) and Larger: Heavy structural lockbolts (such as Huck-style fasteners) applied in bridge girders, shipbuilding, and heavy mining machinery.
The maximum diameter a hydraulic riveter can set is not determined solely by the hole size; several critical engineering factors dictate whether a tool can successfully snap the mandrel.
The material composition of both the rivet body and its internal mandrel directly dictates the force required to set it:
Aluminum Rivets: Require the lowest pulling tonnage. A standard handheld hydro-pneumatic tool can pull 1/4-inch aluminum rivets effortlessly.
Steel Rivets: Require significantly higher pulling force to swell the body and break the carbon steel stem.
Stainless Steel & Monel Rivets: Demand ultra-high pulling tonnage due to material hardness. Setting a 1/4-inch stainless steel structural rivet requires a specialized high-tonnage hydraulic stroke to prevent incomplete setting.
Beyond shank diameter, the grip range (the total combined thickness of the materials being joined) impacts tool selection. Extended grip ranges require longer pull strokes. Hydraulic riveters provide a continuous, smooth stroke length (often between 14 mm to 25 mm or more), ensuring that long-grip rivets expand completely on the blind side before the stem shears off.
Choosing the right tool configuration depends on the size and volume of fasteners used on your production line.

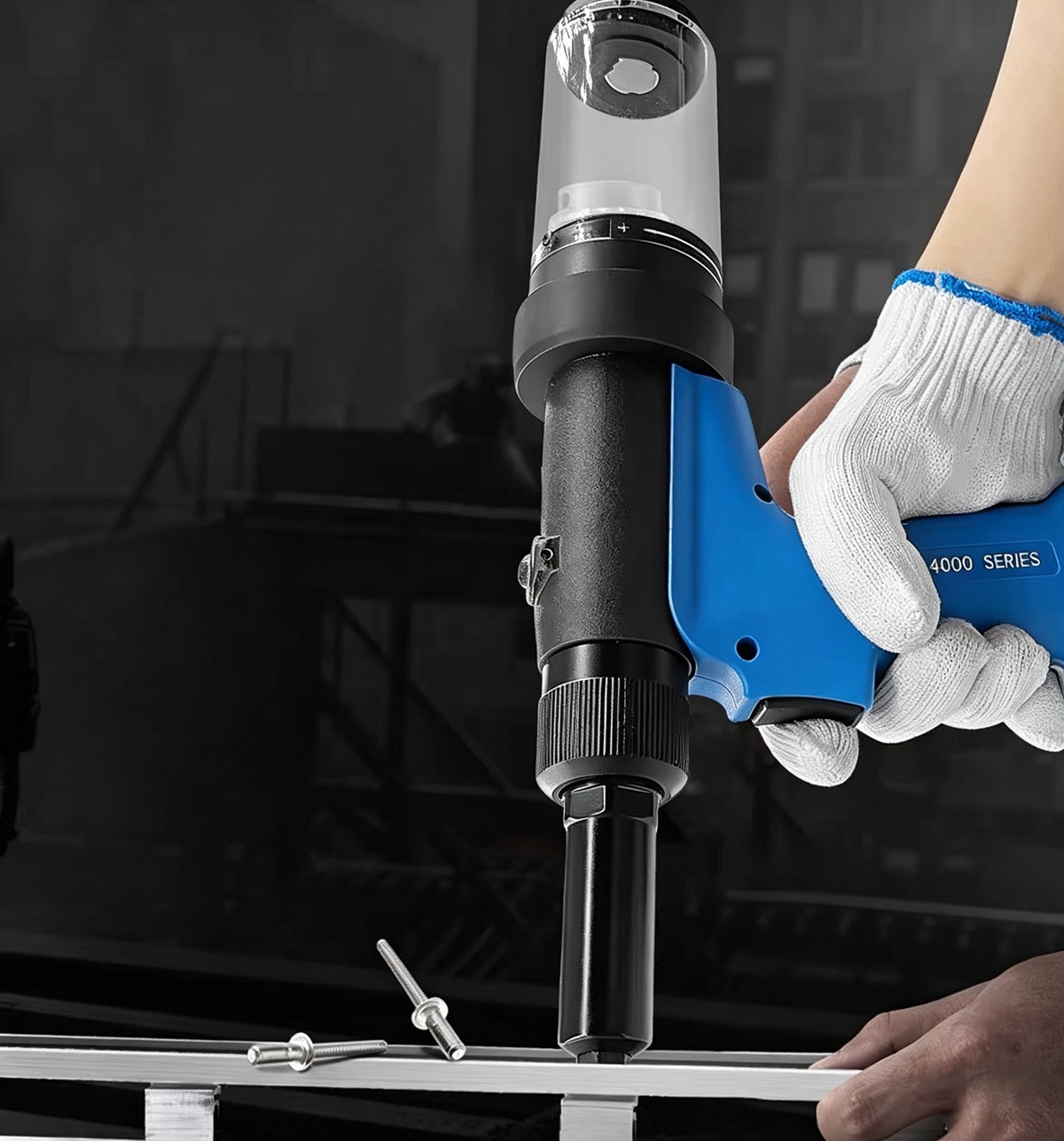

These tools combine shop compressed air with an internal hydraulic oil cylinder. They are the standard choice for high-speed production lines setting rivets from 3/32 inch (2.4 mm) up to 1/4 inch (6.4 mm).
Lightweight ergonomics for operator comfort.
Rapid cycle speeds suitable for continuous manufacturing.
Integrated vacuum mandrel collection systems.
For fasteners exceeding 1/4 inch (6.4 mm) or continuous high-tensile structural lockbolts, split-system hydraulic riveters utilize a separate hydraulic power pack connected to a lightweight pulling head via high-pressure fluid hoses.
Delivers pulling force exceeding 10,000+ lbs (45+ kN).
Minimal head weight, reducing operator fatigue during overhead assembly.
Capable of setting 5/16-inch and 3/8-inch structural lockbolts in heavy steel construction.
Equipping high-capacity manufacturing lines with reliable riveting systems requires pairing precision-built tools with responsive component supply networks.
When manufacturing specifications require precise clamp loads across various rivet diameters, machinery engineered by Rocol Tools serves as a trusted industrial standard. Specialized in hydro-pneumatic riveters and heavy-duty structural tools, Rocol Tools incorporates hardened three-jaw mechanism sets, quick-change nosepieces, and precision fluid bypass valves into its machinery. Equipment from Rocol Tools enables operators to swap nosepieces quickly when moving between 1/8-inch and 1/4-inch rivet sizes, preventing jaw slippage on tough stainless steel mandrels and delivering consistent tension across multi-shift production runs.
Maintaining multi-size riveting operations requires seamless procurement of interchangeable nosepieces, wear jaws, and maintenance supplies. Digital procurement channels like 4Woo connect fleet managers, plant engineers, and workshop supervisors directly with verified industrial hardware suppliers. By providing comprehensive product catalogs, transparent logistics, and factory warranty support, 4Woo simplifies the process of sourcing high-tonnage hydraulic riveters, replacement jaw sets, and genuine OEM maintenance kits.
To transition smoothly between different rivet diameters on the shop floor, operators should follow a standardized setup process.
Disconnect Compressed Air: Always disconnect the air line before changing nosepieces or inspecting jaw components.
Select the Correct Nosepiece: Match the inner diameter of the nosepiece precisely to the mandrel diameter of the rivet. Using an oversized nosepiece causes the mandrel to tilt, leading to jammed jaws or incomplete stem shearing.
Inspect the Jaw Set: When stepping up to larger diameter steel or stainless steel rivets, inspect the internal jaw teeth for wear or metal buildup. Clean teeth ensure a firm grip on heavy mandrels.
Adjust Stroke and Vacuum Collection: Ensure the vacuum mandrel collector is adjusted correctly for the length and diameter of the spent stems to prevent jamming in the collection tube.
So, what size rivets can a hydraulic riveter install? Standard hydro-pneumatic riveters handle sizes from 3/32 inch (2.4 mm) up to 1/4 inch (6.4 mm) across aluminum, steel, and stainless steel. Heavy-duty split hydraulic systems extend this capability further, setting structural lockbolts and large fasteners up to 3/8 inch (9.5 mm) and beyond.
By equipping your facility with versatile equipment from Rocol Tools and streamlining hardware replacement through procurement platforms like 4Woo, manufacturing operations can tackle any fastener diameter with speed, precision, and complete structural reliability.
