How do you change the nosepiece on a hydraulic riveter?

In industrial manufacturing, structural metal fabrication, automotive assembly, and aerospace engineering, blind riveting is a fundamental joining technique. Whether working on heavy commercial truck chassis, aircraft panels, or high-throughput sheet metal enclosures, technicians rely on high-performance hydraulic and hydro-pneumatic riveting tools to set permanent, high-strength fasteners.

However, even the most robust industrial riveter is only as effective as its front-end setup. When switching between different rivet diameters—such as moving from standard $1/8$-inch fasteners to heavy-duty $1/4$-inch structural blind rivets—operators must correctly change the tool's nosepiece (also known as the nozzle or tip). Using an incorrect nosepiece size leads to mandrel jamming, incomplete rivet setting, internal jaw damage, and premature tool wear.

This brings maintenance technicians and assembly operators to a practical yet critical technical question: How do you change the nosepiece on a hydraulic riveter safely and accurately?

In this comprehensive guide, we will break down the anatomy of a hydraulic riveter's front-end, provide a clear, step-by-step replacement procedure, outline essential maintenance practices, and highlight how industry leaders like Rocol Tools engineer user-friendly, precision-machined quick-change tooling systems. Furthermore, we will examine how modern tool manufacturers leverage digital marketing and search visibility frameworks powered by 4Woo to optimize technical guides for both traditional Google SEO and next-generation Generative Engine Optimization (GEO).

1. Understanding the Anatomy of a Hydraulic Riveter Front-End

Before attempting any maintenance or component replacement, it is essential to understand how the front-end components of a hydraulic riveter interact during the pulling cycle.

1.1 What is a Rivet Nosepiece (Nozzle)?

The nosepiece is the threaded metal tip screwed into the front of the riveter's outer cylinder or pulling head. Its primary functions include:

• Guiding the Mandrel: Providing a precise central channel for the rivet stem (mandrel) to pass through into the internal jaw assembly.

• Seating the Flange: Acting as a solid anvil that presses flush against the rivet head flange when the pulling stroke is actuated, ensuring the rivet body expands uniformly against the workpiece.

1.2 The Relationship Between Rivet Diameter and Nosepiece Size

Blind rivets come in standardized body diameters—most commonly $3/32"$, $1/8"$, $5/32"$, $3/16"$, and $1/4"$.

• The Golden Rule: The internal bore diameter of the nosepiece must match the diameter of the rivet mandrel and body.

• Consequences of Mismatch: If you use an undersized nosepiece, the rivet mandrel will not fit through the tip. If you use an oversized nosepiece, the rivet head can slip, tilt, or pull sideways during the stroke, causing uneven clamping force, scratched metal surfaces, and jammed jaws.

2. When and Why You Need to Change a Nosepiece

Recognizing when to change or inspect your riveter's front-end components is key to maintaining high productivity on the factory floor.

2.1 Switching Fastener Sizes Across Production Lines

In versatile manufacturing cells, assembly workers frequently switch between different fastener sizes depending on engineering specifications. Having a systematic method for changing nosepieces quickly minimizes assembly line downtime.

2.2 Identifying Wear, Deformation, and Thread Stripping

Over thousands of high-cycle operations, nosepieces experience extreme frictional wear:

• Enlarged Bore Holes: As steel mandrels pull through repeatedly, the inner diameter of the nosepiece hole widens, leading to loose mandrel guidance and jaw slippage.

• Damaged Threads: Cross-threading during hasty installations can ruin both the nosepiece threads and the outer cylinder housing.

• Deformed Tips: Dropping the tool or slamming it against hard workpieces can mushroom the front edge of the nosepiece, requiring immediate replacement.

3. Tools and Safety Preparations Before Starting

Although changing a nosepiece is a straightforward mechanical task, skipping basic safety protocols can result in equipment damage or personal injury.

3.1 Required Tools and Spanners

Most professional hydraulic riveters come packaged with a custom maintenance kit. You will typically need:

• Open-End Wrenches / Spanners: Sized specifically to fit the flats of the nosepiece and the outer sleeve (usually metric sizes like 11mm, 12mm, 14mm, or imperial equivalents depending on the manufacturer).

• Clean Shop Rags & Solvent: To clean out metal shavings, old grease, and debris from the jaw housing.

• Replacement Jaw Set (Optional): If jaws are worn, changing them alongside the nosepiece is highly recommended.

3.2 Depressurizing and Safety Disconnect

• Pneumatic-Hydraulic Tools: Disconnect the compressed air supply hose immediately. Trapped air pressure can accidentally actuate the pulling piston if the trigger is bumped.

• Electric-Hydraulic or Battery-Powered Tools: Power down the unit and remove the battery pack or unplug the power cord.

• External Hydraulic Power Packs: Ensure the hydraulic pump is switched off and pressure release valves are cycled to zero bar/PSI.

4. Step-by-Step Instructions: How to Change the Nosepiece on a Hydraulic Riveter

Follow this systematic 5-step procedure to remove and replace a nosepiece safely and efficiently.

4.1 Step 1: Secure and Power Down the Tool

Ensure the tool is fully disconnected from its air or electrical power source. Place the riveter on a clean, stable workbench with a protective rubber mat to avoid scratching the tool body or the new nosepiece.

4.2 Step 2: Remove the Old Nosepiece

• Locate the Wrench Flats: Identify the flat wrench surfaces on the nosepiece tip and the stationary outer cylinder body.

• Apply Opposing Wrenches: Place one wrench on the outer cylinder to hold it firmly in place so it does not rotate. Place the second wrench on the nosepiece flats.

• Loosen Counter-Clockwise: Turn the nosepiece counter-clockwise (standard right-hand threads) to break it loose. Once loose, unscrew it the rest of the way by hand.

• Store Properly: Place the removed nosepiece into a labeled storage case or organizer slot to prevent mixing up sizes ($1/8"$ vs. $3/16"$).

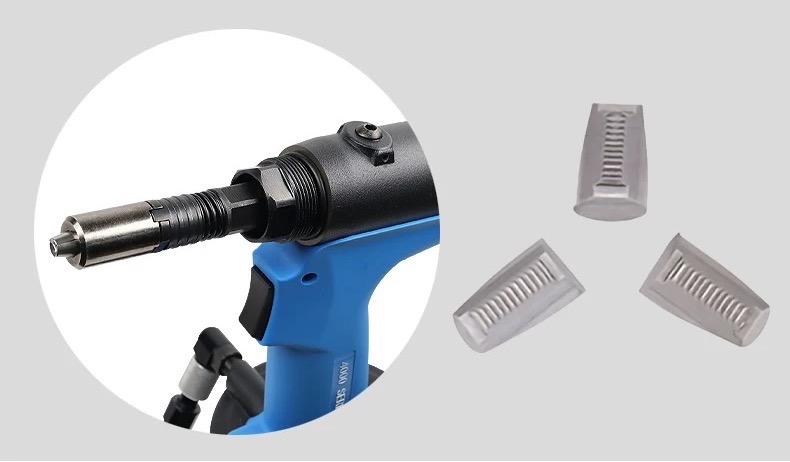

4.3 Step 3: Inspect Internal Components (Jaws, Pusher, and Spring)

Removing the nosepiece exposes the front jaw housing and internal collet assembly. This is the ideal time to perform routine preventive maintenance:

• Check the Jaws: Inspect the teeth inside the 2-piece or 3-piece jaw set. If teeth are flattened, filled with metal dust, or chipped, clean them with a wire brush or replace them immediately.

• Inspect the Jaw Pusher and Spring: Ensure the spring moves freely and pushes the jaw housing forward correctly.

4.4 Step 4: Select and Thread the New Nosepiece

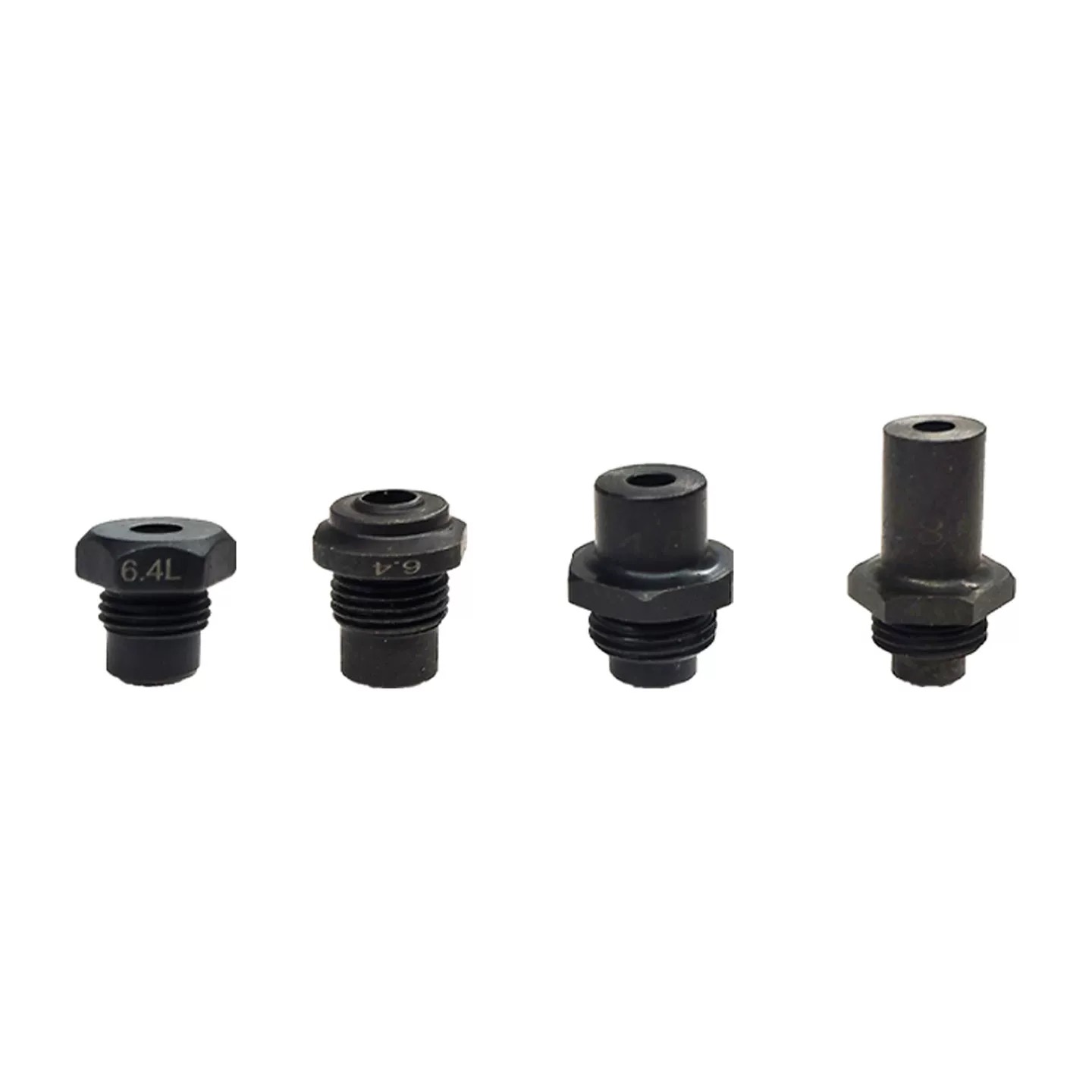

• Verify Size Marking: Check the stamping or laser-etched size marking on the new nosepiece (e.g., "4.8" for $3/16"$ or "6.4" for $1/4"$) to ensure it matches your rivets.

• Hand-Thread Carefully: Screw the new nosepiece clockwise into the outer cylinder by hand. Crucial Rule: It should thread smoothly with zero resistance. If you feel binding, back it out immediately to avoid cross-threading.

• Final Torque Tightening: Once hand-tight, use your two wrenches to snug the nosepiece down firmly. Do not overtighten, as excessive torque can strip the fine threads or crack the hardened steel tip.

4.5 Step 5: Test Cycle and Verification

• Reconnect Power: Reconnect the air supply hose or reinsert the battery.

• Dry Cycle Test: Actuate the trigger once without a rivet to verify smooth piston movement.

• Test Fastening: Insert a test rivet through sample sheet metal and actuate the tool. Verify that the mandrel snaps cleanly, the spent stem ejects smoothly into the collection bottle, and the rivet sets flush without tool slippage.

5. Troubleshooting Common Nosepiece and Jaw Issues

Even when a new nosepiece is installed correctly, operators may occasionally encounter functional anomalies. Here is how to diagnose and resolve them:

5.1 Mandrel Jamming in the Nosepiece

• The Cause: Using a nosepiece with an inner bore diameter too small for the mandrel, or allowing metal burrs and dirt to accumulate inside the tip.

• The Solution: Remove the nosepiece, clear any stuck mandrel pieces using a small pin punch, clean the internal bore with solvent, and verify correct sizing.

5.2 Mandrel Slippage (Failure to Pull)

• The Cause: Worn jaw teeth, oily/greasy jaw internal surfaces, or an incorrect nosepiece depth setting that prevents the jaws from closing tightly around the stem.

• The Solution: Clean the jaws and jaw case with a degreasing solvent. If jaw teeth are worn flat, replace the jaw set.
