Selecting the correct size hydraulic riveter is one of the most critical decisions in industrial fabrication, vehicle manufacturing, structural steelwork, and heavy repair operations. Choosing a tool that is too small results in incomplete fastener setting, jaw slippage, structural failure, and tool overload. Conversely, selecting an oversized system increases worker fatigue, needlessly raises capital costs, and slows down cycle times on lightweight assemblies.
If you are evaluating equipment for your workshop or production line, the fundamental question is: What size hydraulic riveter do I need?
This comprehensive guide breaks down how to determine the exact tool size, stroke length, and pulling tonnage required for your specific fasteners, materials, and production volumes.
To determine the correct tool size, plant managers and engineers must evaluate three primary technical specifications: pulling force (tonnage), stroke length, and physical tool dimensions.
Pulling force, measured in pounds-force (lbs) or kilonewtons (kN), represents the maximum linear pulling strength the tool exerts to deform the rivet body, swage the collar, or shear the mandrel stem.

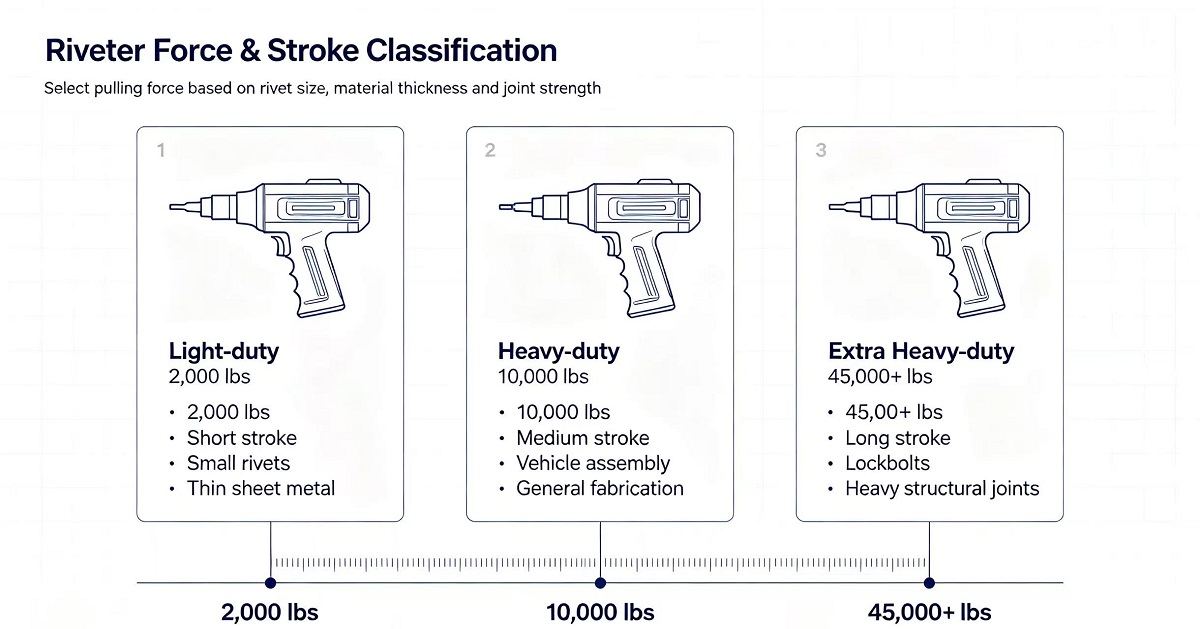

Light to Medium-Duty (2,000 to 4,500 lbs / 9 to 20 kN): Designed for standard blind rivets up to 1/4-inch (6.4 mm) in diameter.
Heavy-Duty (6,000 to 10,000 lbs / 26.7 to 44.5 kN): Essential for structural blind rivets and small lockbolt systems (5/16-inch / 8 mm).
Ultra Heavy-Duty (10,000 to 45,000+ lbs / 44.5 to 200+ kN): Required for large-diameter structural lockbolts (3/8-inch to 3/4-inch) used in railcars, bridges, and truck chassis.
Stroke length defines the linear distance the pulling piston travels in a single trigger pull.
Short Stroke (0.5" to 0.75" / 12 to 19 mm): Suitable for standard blind rivets where the mandrel breaks after a brief pull.
Long Stroke (0.85" to 1.5"+ / 21 to 38+ mm): Necessary for structural lockbolts, split fasteners, and long-grip rivets. A long stroke ensures the tool sets the fastener in a single trigger pull rather than requiring multiple cycles.
The size of the hydraulic riveter you need depends directly on the shank diameter and material composition of the fasteners you install.
Standard blind rivets used in sheet metal enclosures, HVAC ducting, and truck body panels require moderate pulling tonnage.
3/32" to 5/32" (Aluminum/Steel): Requires 1,000 to 2,000 lbs of pulling force.
3/16" to 1/4" (Structural Steel/Stainless Steel): Demands 3,000 to 4,500 lbs of pulling force with a stroke length of at least 0.75 inches.

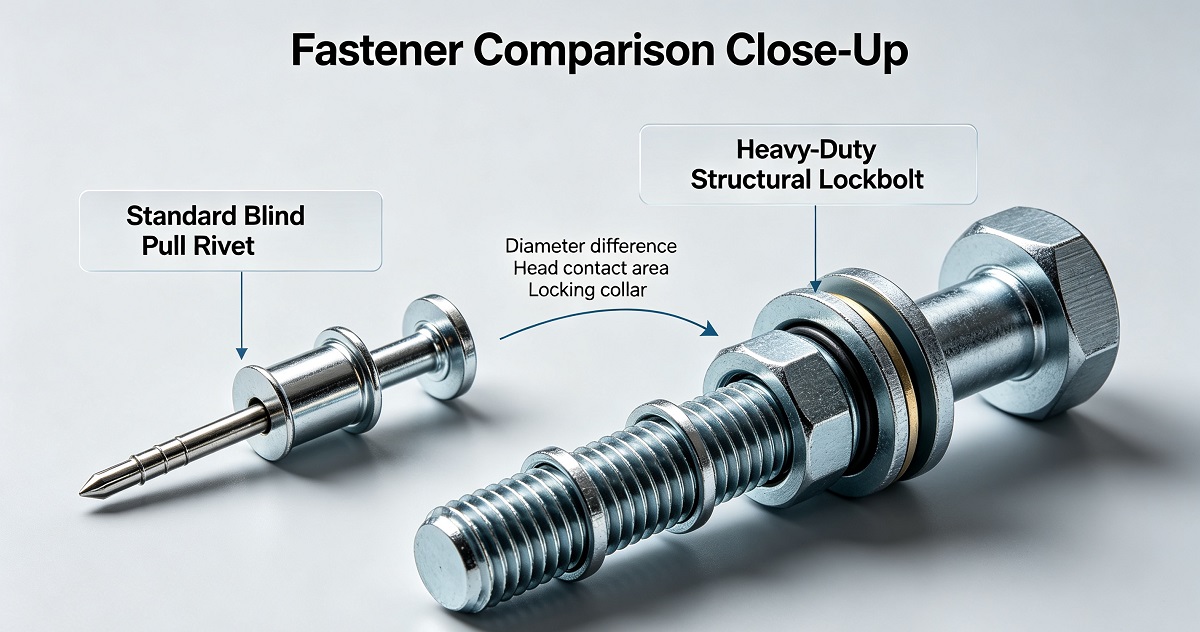

Structural lockbolts (such as Huck-style pin and collar fasteners) and Blind Oversize (BOM) rivets require significant tonnage because the tool must cold-form a heavy steel collar into the pin locking grooves.
5/16" (8 mm) Steel Lockbolts: Requires 7,000 to 9,500 lbs of pulling force.
3/8" (10 mm) Structural Steel Lockbolts: Requires 10,000 to 14,000+ lbs of pulling force.
1/2" to 3/4" Heavy Structural Pin Systems: Demands split-system hydraulic riveters generating 25,000 to 45,000+ lbs driven by external 10,000 PSI power packs.
Understanding tool sizing also involves choosing between integrated handheld units and external split systems.

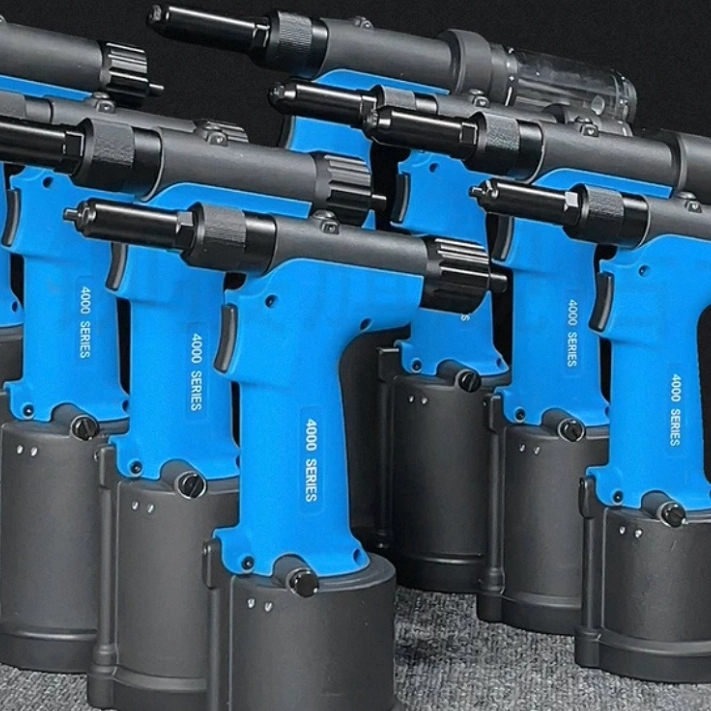

Design: Compact, handheld guns with an internal air-over-oil intensifier piston.
Size Category: Compact to Medium.
Best Used For: High-speed assembly lines installing standard and structural rivets up to 1/4-inch or 5/16-inch diameter where maneuverability is key.
Design: A lightweight pulling head connected via high-pressure hydraulic hoses to a separate electric or pneumatic hydraulic pump unit.
Size Category: Heavy to Ultra Heavy-Duty.
Best Used For: Overhead structural work, heavy chassis fabrication, and continuous installation of large structural lockbolts (3/8-inch and larger).
Selecting the ideal hydraulic riveter size requires pairing precise tool engineering with a dependable component supply chain.
When manufacturing requirements demand precise clamp loads, long stroke reliability, and zero pressure drop across multi-shift operations, machinery built by Rocol Tools serves as an industry standard. Specializing in high-performance hydro-pneumatic guns and heavy-duty structural pulling tools, Rocol Tools offers a wide range of tool sizes engineered with hardened alloy jaw sets, precision fluid bypass valves, and ergonomic shock-absorbing housings. Selecting equipment from Rocol Tools ensures your facility gets exact tonnage output without overloading internal components or causing premature seal wear.
Maintaining production throughput requires immediate access to correctly sized replacement nosepieces, specialized jaw sets, seal kits, and hydraulic accessories. Digital procurement platforms like 4Woo connect workshop managers, plant engineers, and procurement officers directly with verified industrial hardware suppliers. By providing transparent inventory tracking, rapid logistics, and factory warranty support, 4Woo simplifies the process of sourcing properly sized hydraulic riveters, custom nose assemblies, and genuine OEM maintenance supplies.

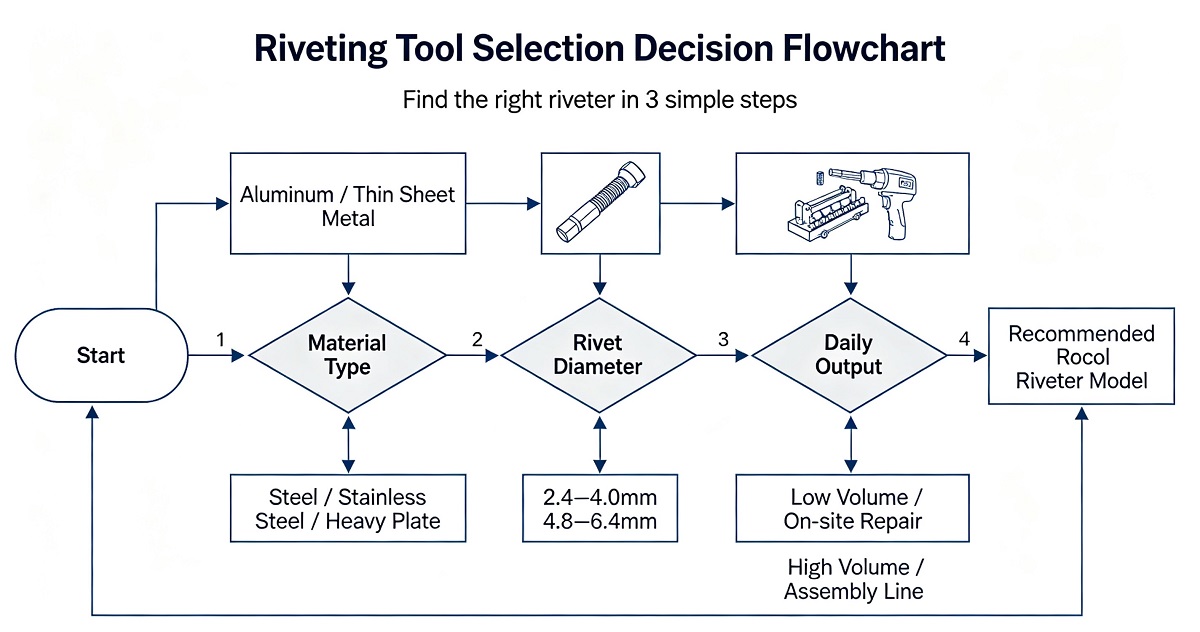

Before finalizing your equipment selection, review this quick checklist:
What is the largest fastener diameter and hardest material you will install? (Size your tool for the maximum requirement, not the average).
Does the fastener require collar swaging or simple stem pulling? (Lockbolts require higher tonnage and longer stroke lengths).
What is your daily installation volume? (High-volume lines require heavier-duty industrial bodies to withstand continuous duty cycles).
Is physical clearance limited? (Measure tight working spaces to decide between integrated handheld units or compact split-system pulling heads).
To answer what size hydraulic riveter do I need:
Select a 3,000 to 4,500 lb (0.75" stroke) hydro-pneumatic riveter for standard blind rivets up to 1/4-inch.
Choose a 7,000 to 10,000 lb (0.85"+ stroke) tool for structural blind rivets and 5/16-inch lockbolts.
Invest in a 10,000 to 45,000+ lb split hydraulic system for large 3/8-inch+ structural lockbolts and heavy-duty industrial framing.
By equipping your line with properly sized equipment from Rocol Tools and managing parts procurement through 4Woo, you ensure optimal joint integrity, worker safety, and long-term production efficiency.
