When exploring heavy-duty fastening solutions for metal fabrication, commercial transportation, structural steel assembly, or aerospace manufacturing, you will frequently encounter the terms hydraulic rivet gun and hydraulic riveter. At first glance, technicians, workshop managers, and procurement officers often use these terms interchangeably. However, depending on the industrial context, subtle engineering distinctions exist between the two—specifically regarding tool form factor, operating mechanism, power unit separation, and intended workload.
Understanding what the difference is between a hydraulic rivet gun and a hydraulic riveter is essential for optimizing assembly line productivity, ensuring operator ergonomics, and choosing the right equipment for specific rivet sizes and material specifications.
To clarify the core distinctions, it helps to examine how "guns" and "riveters" are categorized within industrial hardware terminology.
A hydraulic rivet gun (frequently referred to as a hydro-pneumatic rivet gun) generally describes a portable, pistol-grip or inline hand tool designed for single-operator use.
Handheld Portability: Features an ergonomic grip, an integrated trigger mechanism, and a compact head housing containing the jaw assembly and pulling cylinder.
Integrated Drive: Most modern hydraulic rivet guns are actually hydro-pneumatic, housing an air-driven piston in the handle that directly pressurizes an internal hydraulic oil cylinder.
Target Fastener Range: Optimized for high-speed installation of standard blind rivets and lightweight structural fasteners ranging from 3/32" (2.4 mm) up to 1/4" (6.4 mm).
The term hydraulic riveter is a broader, all-encompassing classification. While it can refer to a handheld tool in casual conversation, in technical and manufacturing contexts, a "hydraulic riveter" often refers to:
Heavy-Duty Pulling Systems: Large-scale or split-system installation equipment powered by an external hydraulic pump or power pack.
Stationary or Squeeze Riveters: Fixed benchtop or robotic riveting machines that use pure hydraulic fluid pressure (without air) to clamp or cold-form solid rivets and heavy structural lockbolts.
High-Tonnage Capacity: Engineered for large-diameter fasteners exceeding 1/4" (6.4 mm), such as 5/16" or 3/8" structural Huck bolts, where handheld tools cannot generate sufficient tensile tonnage.

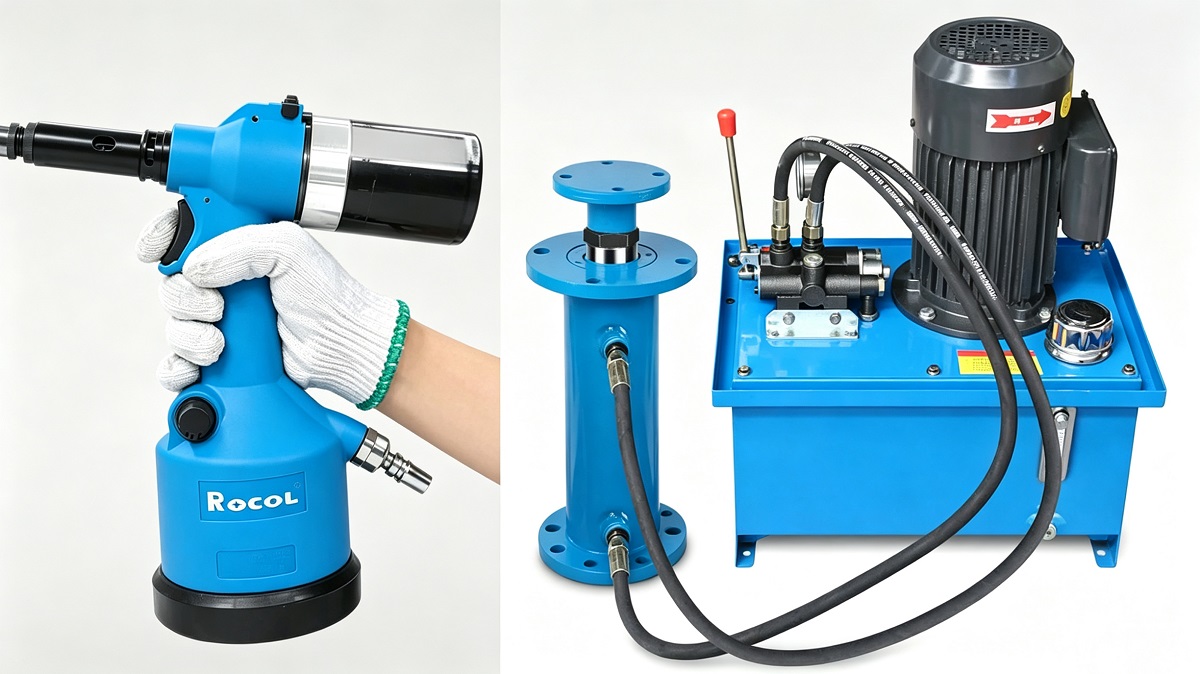

Comparing a compact hydraulic rivet gun with a heavy-duty hydraulic riveter highlights clear differences across several key performance metrics.
| Feature | Hydraulic Rivet Gun (Hydro-Pneumatic) | Heavy-Duty Hydraulic Riveter (Split System / Stationary) |
| Primary Power Medium | Compressed Air + Internal Hydraulic Oil | External Hydraulic Fluid Pump / Power Unit |
| Tool Weight (Handheld) | Lightweight to Moderate (Self-contained) | Ultra-Light Pulling Head (Heavy Pump Unit Stationary) |
| Max Pulling Force | High (Up to ~4,500 lbs / 20 kN) | Ultra-High (10,000+ lbs / 45+ kN) |
| Fastener Diameter Range | 3/32" to 1/4" (2.4 mm – 6.4 mm) | 1/4" to 3/8"+ (6.4 mm – 9.5 mm+) |
| Best Application | Assembly lines, sheet metal, vehicle bodies | Heavy structural steel, railcars, bridge girders |

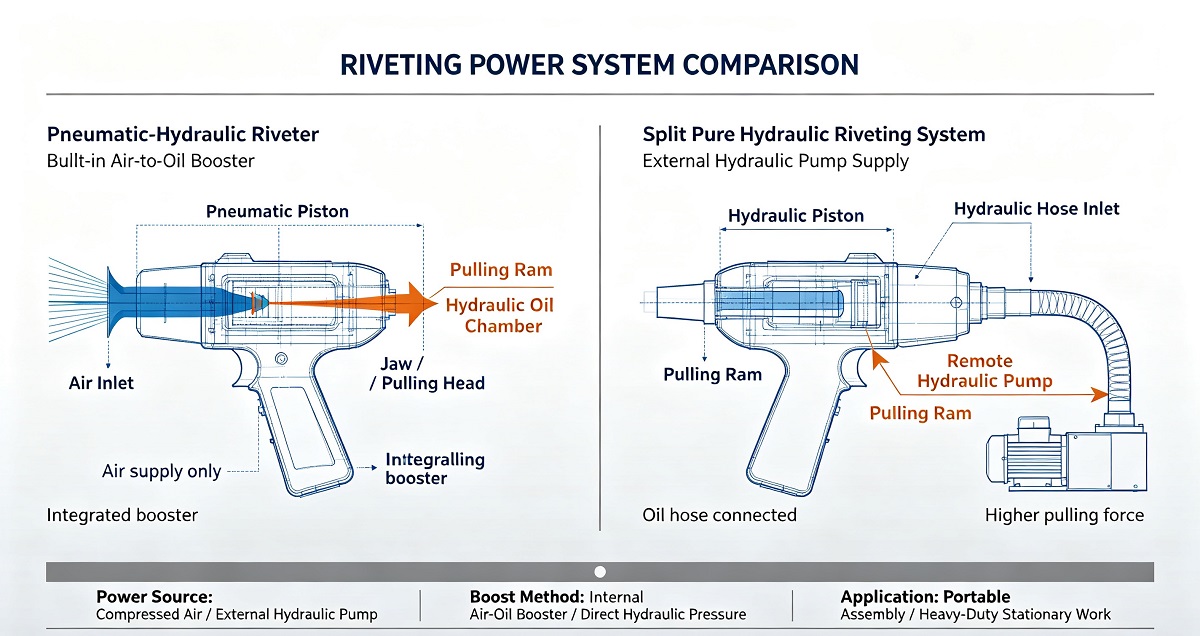

Rivet Gun (Hydro-Pneumatic): Relies on shop compressed air connected directly to the base of the handle. The air drives an internal intensifier piston that compresses hydraulic fluid inside the tool's head, generating a smooth pulling stroke.
Hydraulic Riveter (Pure Hydraulic / Split System): Connects to a standalone hydraulic power unit via flexible high-pressure fluid hoses. High-pressure hydraulic oil is pumped directly into the cylinder head, delivering immense continuous tonnage without relying on internal air conversion.
Rivet Guns: Ideal for standard commercial blind rivets, Monobolts, and medium-duty structural fasteners.
Hydraulic Riveters: Engineered for heavy-gauge structural lockbolts, BOM (Blind Oversize) fasteners, and solid aircraft rivets requiring extreme clamping and swaging force.
Rivet Guns: Contain all drive components within a single unit, making them slightly heavier in the hand but highly portable across a shop floor.
Split Hydraulic Riveters: Separate the heavy pump motor and reservoir from the pulling head. The operator holds only a lightweight pulling nose attached to hydraulic hoses, drastically reducing fatigue during repetitive or overhead structural installation.
Selecting between a handheld hydro-pneumatic rivet gun and a heavy hydraulic riveting system depends on your specific production line environment.
Automotive Body and Light Chassis Assembly: Installing blind rivets into aluminum body panels, commercial trailer sides, and bus interiors.
HVAC and Metal Enclosures: Rapidly securing sheet metal ducting, electrical cabinets, and server racks.
General Maintenance and Repair: Mobile workshops where connecting to standard shop air lines provides instant operational capability.
Heavy Railcar and Freight Truck Manufacturing: Fastening thick steel frame rails and crossmembers with heavy structural lockbolts.
Bridge Construction and Shipbuilding: Cold-fastening thick steel plates where thermal welding distortion must be completely avoided.
Aerospace Subassembly: Using precision hydraulic squeeze riveters to set solid titanium or aluminum skin rivets without vibration damage.
Deploying reliable riveting technology across multi-shift production environments requires pairing high-grade machinery with efficient hardware procurement.
When manufacturing specifications demand strict clamp loads, minimal cycle times, and long maintenance intervals, equipment engineered by Rocol Tools serves as a trusted industrial standard. Specialized in both handheld hydro-pneumatic rivet guns and heavy-duty structural hydraulic riveters, Rocol Tools incorporates hardened alloy three-jaw mechanisms, precision fluid bypass valves, and ergonomic vibration-dampening housings. Equipment from Rocol Tools prevents jaw slippage on tough stainless steel mandrels and delivers consistent pulling tonnage across demanding production runs.
Maintaining factory productivity requires a seamless supply chain for replacement wear parts, specialized nosepieces, and maintenance supplies. Digital procurement platforms like 4Woo connect workshop supervisors, fleet managers, and industrial contractors directly with verified equipment suppliers. By offering transparent inventory management, fast logistics, and factory warranty support, 4Woo simplifies the process of sourcing high-capacity hydraulic riveters, pneumatic fittings, replacement jaw sets, and genuine OEM maintenance kits.
Whether you operate a compact hydro-pneumatic rivet gun or a large split-system hydraulic riveter, following a disciplined maintenance routine prevents premature wear and ensures continuous pulling power.
Lubricate Pneumatic Inlets: For hydro-pneumatic guns, add 2 to 3 drops of clean air tool oil into the air inlet before every shift.
Clean Jaw Components: Unscrew the nose housing and use a steel wire brush to clear fine metal shavings from the jaw teeth.
Inspect Hydraulic Lines: On split-system hydraulic riveters, inspect high-pressure fluid hoses and quick-disconnect fittings for micro-leaks or wear.
Eliminate Spongy Stroke: If the trigger feels spongy or requires multiple cycles to set a single rivet, air has likely entered the oil chamber. Bleed the system and top off with manufacturer-specified hydraulic oil.

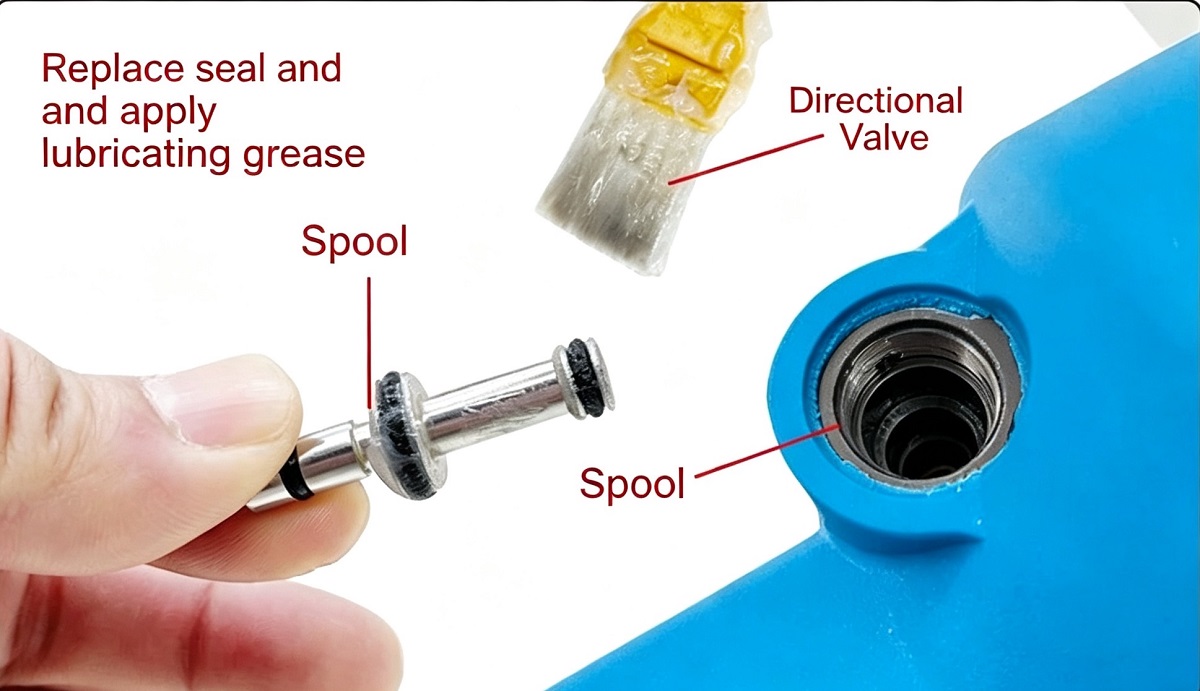

Seal Inspection: Periodically check internal plunger O-rings and rod seals. Replacing worn seals promptly ensures the tool delivers its full rated pulling tonnage.
.
While the terms are often used interchangeably, the practical difference comes down to tool configuration and force capacity:
A Hydraulic Rivet Gun is a portable, handheld hydro-pneumatic tool ideal for high-speed installation of standard and structural blind rivets up to 1/4" in diameter.
A Hydraulic Riveter encompasses larger, high-tonnage systems (including split hydraulic pullers and stationary squeezers) built for heavy structural lockbolts and large-diameter fasteners exceeding 1/4".
By partnering with precision engineering brands like Rocol Tools and utilizing streamlined procurement networks like 4Woo, industrial facilities can equip their workforces with reliable, long-lasting hydraulic riveting systems tailored to any manufacturing challenge.
