What Is a Pneumatic Rivet Nut Gun?
Main Purpose
How Pneumatic Rivet Nut Gun Works
Key Components
Pneumatic Rivet Nut Gun Advantages
Common Rivnut Sizes
Pneumatic vs Manual Rivnut Gun
Simple explanation

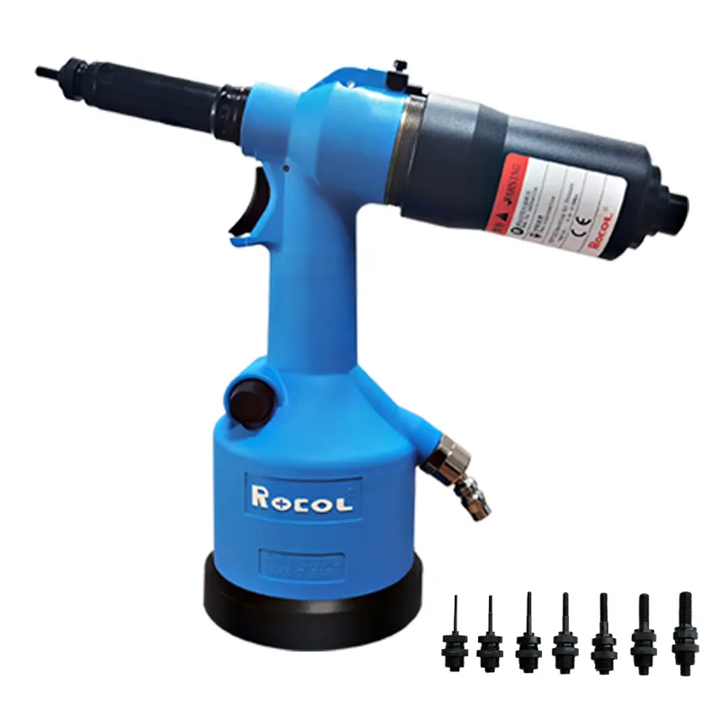

Pneumatic Rivet Nut Gun - Rocol Factory
pneumatic rivet nut gun custom
Pneumatic rivet nut gun is an air-powered tool used to install rivet nuts (rivnuts / nutserts) into metal, plastic, or composite materials.
It uses compressed air instead of manual force, making installation faster, easier, and more consistent.
The tool installs threaded inserts (rivet nuts) into thin materials so bolts can be attached later.
Material is too thin to tap threads
You only have access from one side
After installation, the rivnut becomes a permanent threaded hole.
1. Screw the rivet nut onto the tool's threaded mandrel.
2. Insert the rivnut into a pre-drilled hole.
3. Pull the trigger.
4. The pneumatic system pulls the mandrel, collapsing the rivnut behind the material.
5. The tool automatically unscrews the mandrel, leaving a threaded insert.
The process usually takes 1-2 seconds.
Air inlet (connects to compressor)
Trigger
Threaded mandrels (M3–M10)
Nosepiece
Pulling mechanism
✔ Much faster than manual rivnut tools
✔ Less operator fatigue
✔ Consistent installation force
✔ Ideal for production lines
Sizes | Application |
M3 / M4 | Electronics |
M5 | Light equipment |
M6 | Automotive panels |
M8 | Machinery |
M10 | Structural mounting |
Body panels
Bracket mounting
Electrical cabinets
Machine covers
Lightweight structural connections
Industrial Equipment
Equipment frames
Feature | Manual Rivnut Tool | Pneumatic Rivnut Gun |
Power | Hand force | Compressed air |
Speed | Slow | Very fast |
Effort | High | Low |
Production use | Small jobs | Mass production |
A pneumatic rivet nut gun is an air-powered tool used to quickly install rivet nuts, creating strong threaded holes in thin materials.
