In industrial fabrication, structural steelwork, commercial vehicle manufacturing, and aerospace assembly, achieving a sound mechanical joint relies on precise force application. Unlike threaded fasteners that specify installation torque, blind rivets and structural lockbolts depend on hydraulic pulling force and fluid pressure to expand the rivet body, swage the collar, or shear the stem.
Engineering teams, shop supervisors, and equipment operators frequently ask: What hydraulic pressure is required for a riveting tool?
Understanding the exact pressure ratings, pressure multiplication formulas, and fluid dynamics behind hydraulic riveting systems ensures optimal joint clamping, prevents tool damage, and eliminates premature fastener failure. This comprehensive guide breaks down the pressure requirements across various riveting tool architectures, fastener materials, and industrial setups.
To determine the pressure required for a riveting tool, it is essential to distinguish between pneumatic input pressure (air line pressure) and internal hydraulic working pressure (fluid pressure inside the pulling cylinder).
Most commercial hydro-pneumatic rivet guns do not require an external hydraulic pump; instead, they convert standard shop air pressure into high hydraulic pressure internally.
Input Air Pressure Range: Typically 80 to 100 PSI (5.5 to 6.9 bar).
Internal Hydraulic Working Pressure: Reaches 3,000 to 5,000+ PSI (207 to 345+ bar) inside the tool's head cylinder.
For ultra-heavy structural fasteners (such as 5/16-inch or 3/8-inch lockbolts), split-system hydraulic riveters connect directly to dedicated hydraulic power packs.
Low-Pressure Return/Advance Lines: 1,500 to 2,500 PSI (103 to 172 bar).
High-Pressure Pulling Lines: 5,000 to 10,000+ PSI (345 to 690+ bar) generated by specialized hydraulic pumps to swage steel collars and shear heavy steel pins.
The ratio between the input compressed air pressure and the output hydraulic pressure is governed by Pascal’s Law, which states that pressure exerted anywhere in a confined, incompressible fluid is transmitted equally in all directions.

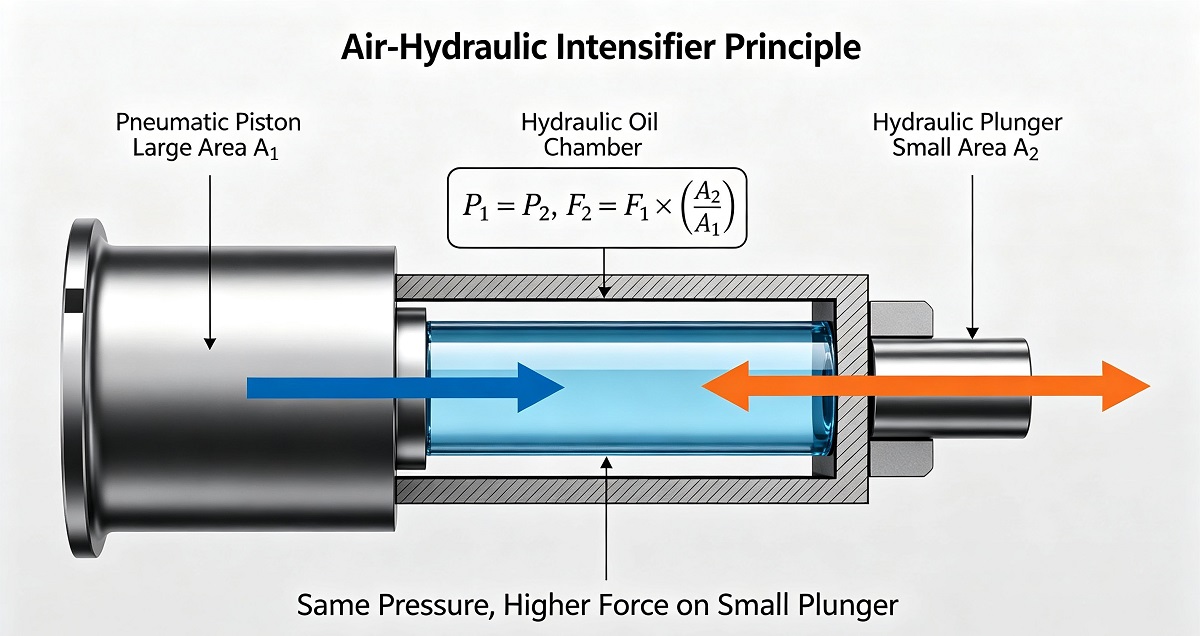

Hydro-pneumatic riveting tools utilize an internal intensifier piston (an air-over-oil mechanism) to multiply force:
Air Piston Area: Compressed air at 90 PSI enters the base of the handle and pushes against a large-area pneumatic piston.
Plunger Surface Area: The pneumatic piston drives a small-diameter rod directly into a sealed hydraulic oil chamber.
Pressure Multiplication: Because the area of the oil plunger is significantly smaller than the area of the air piston, the fluid pressure increases proportionally to the ratio of their surface areas.
This fluid pressure then acts upon the head piston, converting hydraulic pressure directly into thousands of pounds of linear pulling force (tensile tonnage).
The hydraulic pressure and pulling force required depend directly on the rivet diameter, grip range, and material hardness.
Aluminum Blind Rivets (3/32" – 3/16"): Require approximately 1,000 to 2,200 lbs (4.4 to 9.8 kN) of pull force, generated by internal hydraulic pressure around 2,500 to 3,000 PSI.
Steel Blind Rivets (3/16" – 1/4"): Demand 2,500 to 4,000 lbs (11 to 17.8 kN) of pull force, requiring internal oil pressures approaching 4,000 to 4,500 PSI.
Stainless Steel Structural Rivets (1/4"): Require 4,000 to 6,000 lbs (17.8 to 26.7 kN) of pull force. Maintaining a minimum input air pressure of 90 to 100 PSI is mandatory to generate the necessary internal fluid pressure.

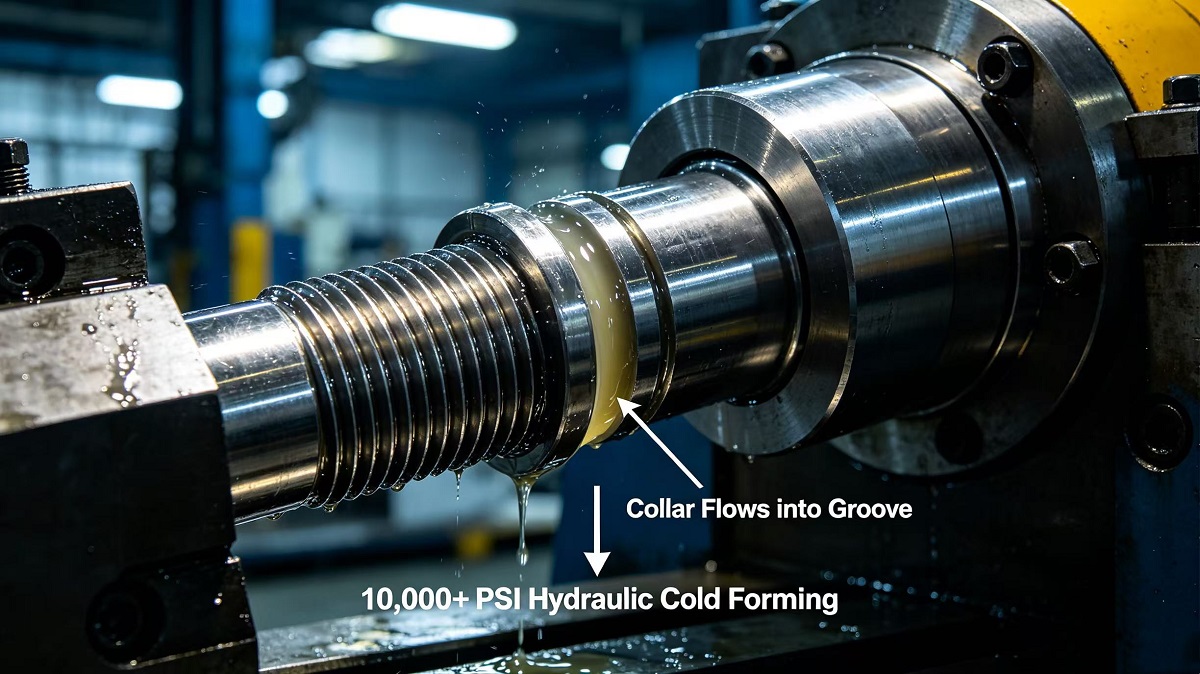

Structural lockbolts (such as Huck-style pin and collar systems) do not merely pull a mandrel; they cold-form a thick steel collar into the pin grooves.
5/16-Inch Steel Lockbolts: Require 7,000 to 9,500 lbs (31 to 42 kN) of pulling force.
3/8-Inch Structural Lockbolts: Demand 10,000 to 14,000+ lbs (44 to 62+ kN) of force, operating with external hydraulic pumps set between 7,000 and 10,000 PSI.
Maintaining accurate hydraulic pressure across high-volume assembly lines requires machinery built with strict engineering tolerances and supported by dependable component networks.
When manufacturing specifications demand strict clamp loads and zero pressure drop across multi-shift operations, tools engineered by Rocol Tools serve as an industry standard. Specialized in hydro-pneumatic riveters and heavy-duty structural installation systems, Rocol Tools incorporates hardened steel intensify cylinders, precision fluid bypass valves, and leak-resistant rod seals into its equipment. Machinery from Rocol Tools maintains consistent internal hydraulic pressure without overheating, preventing incomplete stem shearing and jaw slippage on hardened stainless steel mandrels.
Sustaining uninterrupted factory production requires an agile supply chain for replacement O-rings, hydraulic oil, specialized nosepieces, and air fittings. Digital procurement channels like 4Woo connect workshop supervisors, plant engineers, and maintenance officers directly with verified industrial hardware suppliers. By offering transparent inventory management, rapid global logistics, and factory warranty backing, 4Woo simplifies the process of sourcing high-tonnage hydraulic riveters, pressure regulation accessories, and genuine OEM maintenance kits.
Operating a riveting tool at incorrect pressure levels—either too low or too high—leads to premature tool wear, poor joint quality, or jammed mandrels.
Multiple Trigger Pulls Required: If a tool requires 2 or 3 trigger pulls to break a single rivet mandrel, internal hydraulic pressure is inadequate.
Incomplete Collar Swaging: On structural lockbolts, low pressure leaves the collar loose or improperly cold-formed.
Spongy Trigger Feel: Indicates air bubbles trapped in the hydraulic oil chamber, which compress under pressure and reduce fluid displacement.
Verify Shop Air Line Pressure: Ensure the air regulator delivers a steady 90 to 100 PSI under load.
Inspect Air Filters and Lubricators: Clean inline air filters to prevent pressure drops caused by restriction.

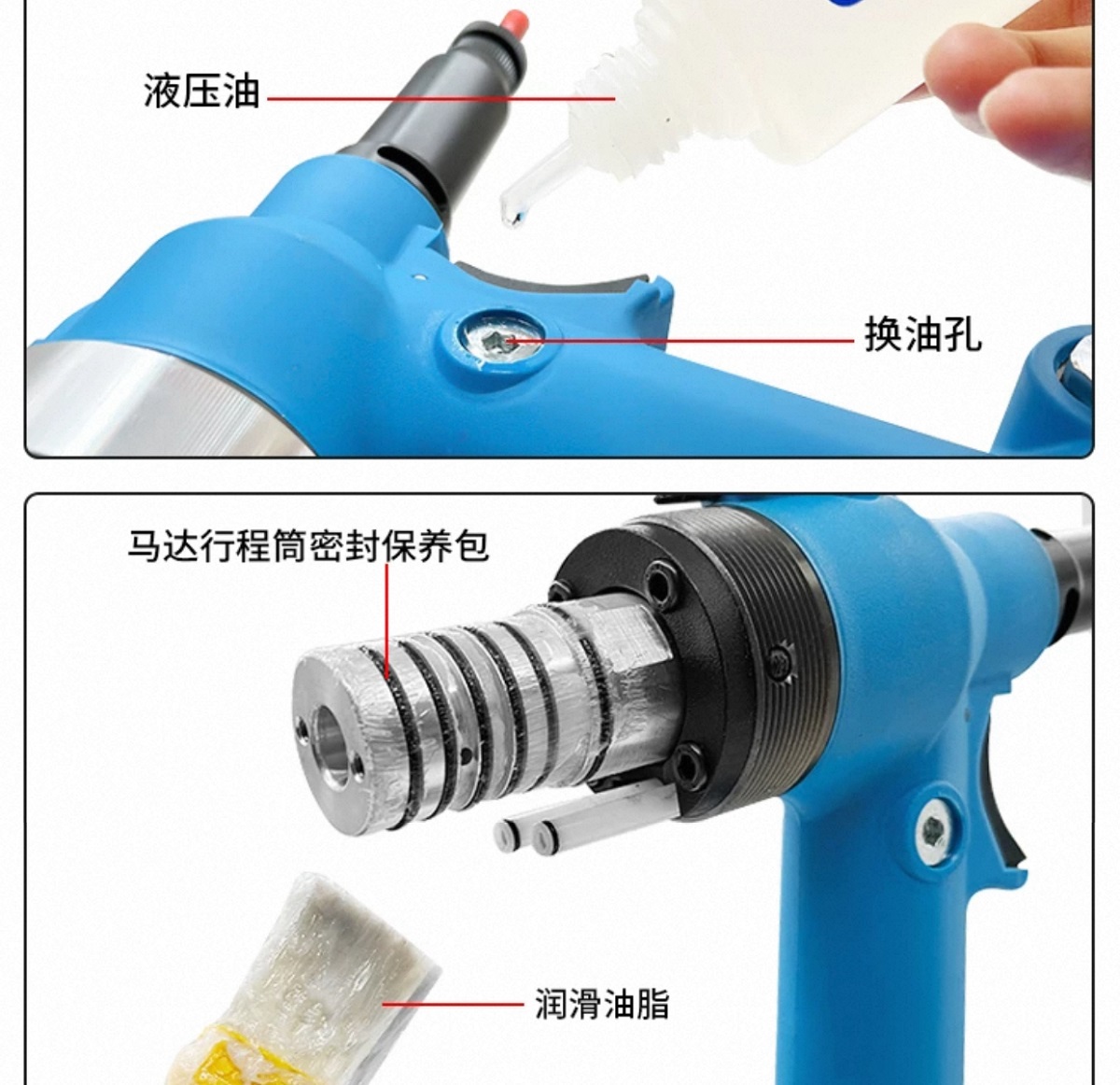

Bleed the Hydraulic System: Unscrew the oil priming screw, top off with manufacturer-specified hydraulic oil, and actuate the trigger slowly to discharge trapped air.
Inspect Seals for Internal Bypass: If internal O-rings or wipers are worn, hydraulic oil bypasses the piston, causing a loss of pulling tonnage despite correct air input pressure.
So, what hydraulic pressure is required for a riveting tool?
For hydro-pneumatic tools, an input air pressure of 80 to 100 PSI (5.5 to 6.9 bar) internally multiplies to generate 3,000 to 5,000+ PSI (207 to 345+ bar) of internal hydraulic fluid pressure.
For heavy split-system hydraulic riveters, dedicated external hydraulic power packs supply 5,000 to 10,000 PSI (345 to 690 bar) of fluid pressure to install large structural lockbolts.
By selecting high-performance machinery from Rocol Tools and managing replacement parts through digital procurement platforms like 4Woo, industrial facilities ensure precise pressure delivery, maximum joint integrity, and long-term production efficiency.
