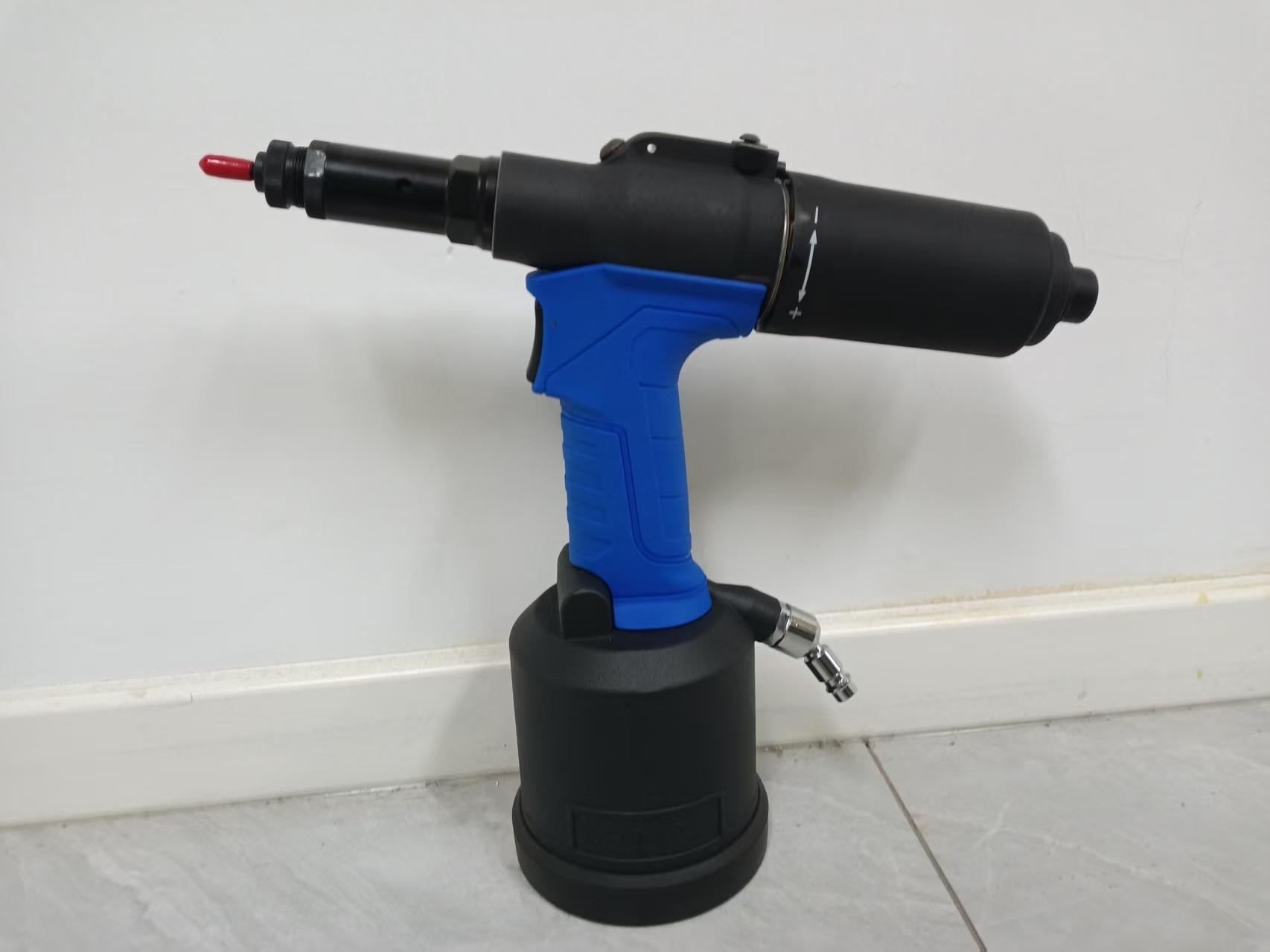

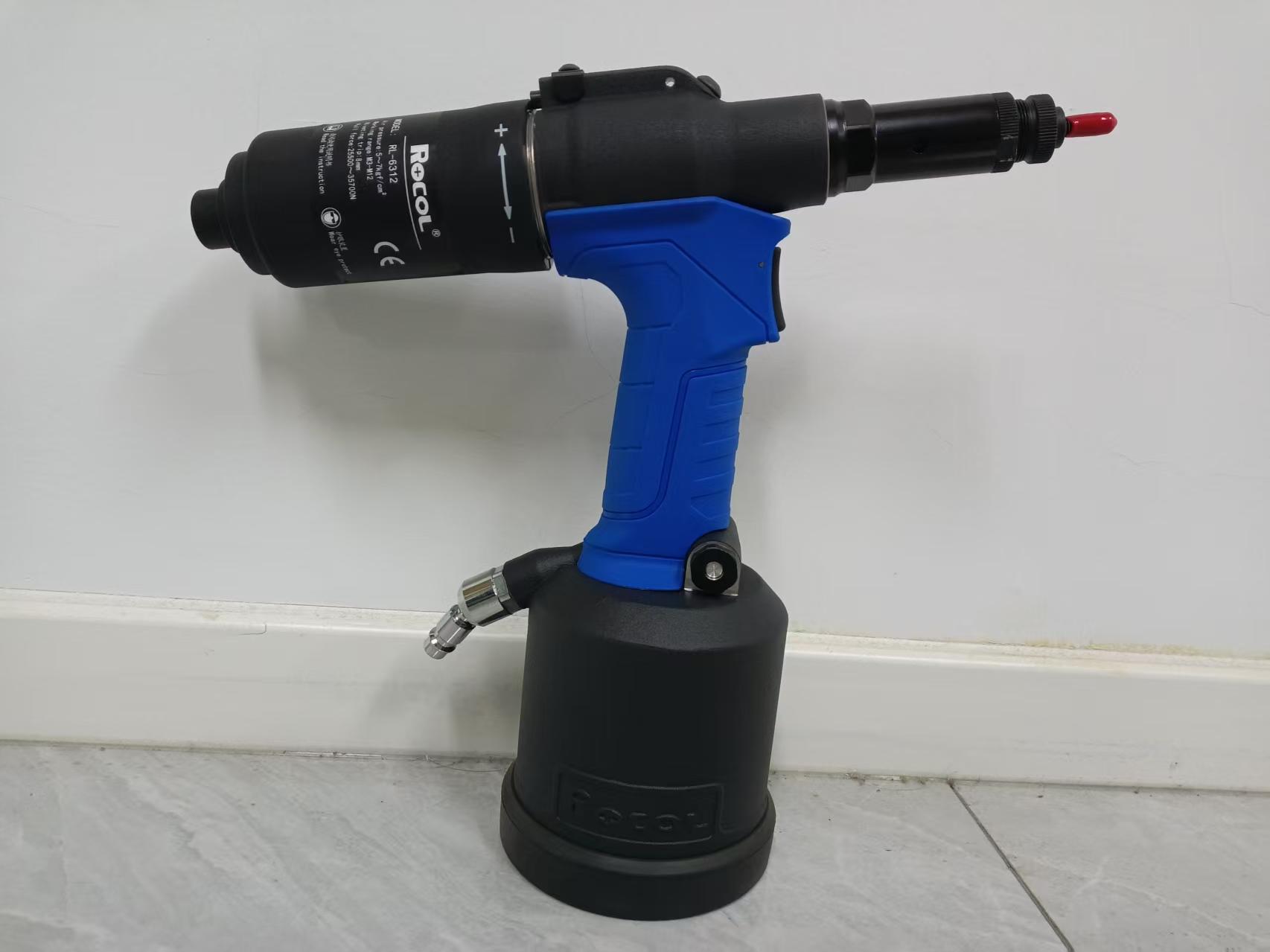

RL-6312L
| Quantity: | |
|---|---|
Product Description
Riveting M3-M12 nuts from various materials;
The new motor system reduces tool failures caused by O-ring wear;
The innovative piston oil circuit design enhances durability and reliability;
The switch operates with light pressure, fast response, and high efficiency;
Ergonomically designed with a compact structure for superior durability and quality;
The RL-6312F features a built-in reverse strong ejection function for quick handling of riveting abnormalities;
The RL-6312L offers an extended stroke of up to 14.5mm, ideal for working with lantern nuts and jack nuts;
The RL-6312B is a specialized tool for riveting studs.

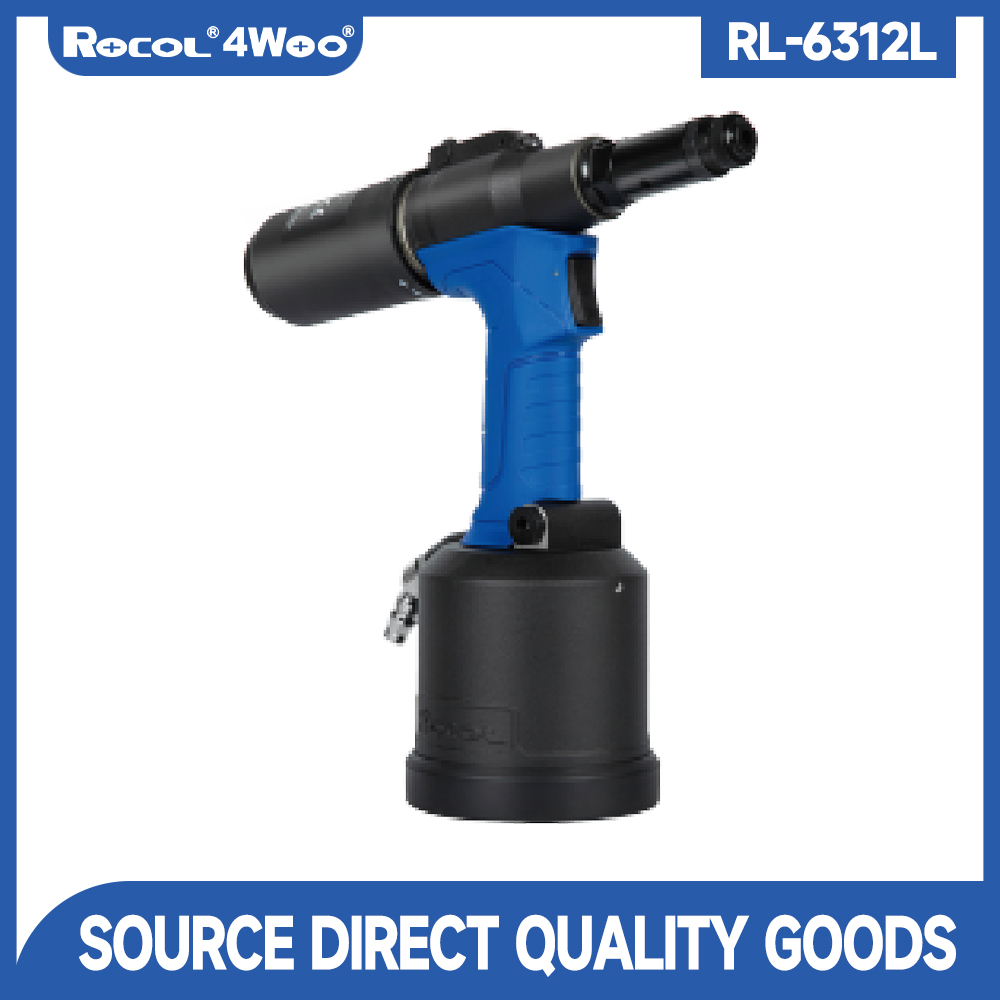

RL-6312L
RL-6312F
RL-6312B
RL-6312
Specifications
Model | Riveting Range | Itinerary | Weight | Height | Length | Atmospheric Pressure | Tensile Force |
RL-6312 | M3-M12 | 8mm | 1.9kg | 282mm | 254mm | 5-7Bar | 25.5-35.7KN |
RL-6312F | M3-M12 | 8mm | 1.9kg | 282mm | 300mm | 5-7Bar | 25.5-35.7KN |
RL-6312L | M4-M10 | 14.5mm | 2.0kg | 282mm | 280mm | 5-7Bar | 14.6-20.4KN |
RL-6312B | M3-M12 | 8mm | 1.9kg | 282mm | 254mm | 5-7Bar | 25.5-35.7KN |
