In fields ranging from automotive repair to aerospace manufacturing, creating a permanent, vibration-resistant joint between two materials is a foundational requirement. While threaded bolts and welding are common methods, blind riveting—commonly referred to as pop riveting—remains one of the most efficient techniques for joining sheet metal, plastics, and composites.
The brilliance of the pop rivet system lies in its ability to secure materials together from only one side of the workpiece, hence the term "blind" riveting. At the heart of this process is a mechanical device: the pop rivet gun.
Understanding exactly how a pop rivet gun works requires an exploration of mechanical advantages, metallurgical tension, and tool engineering. This comprehensive guide breaks down the physical principles, anatomy, and operational mechanics behind these essential tools. We will also look at how industrial-grade innovators like Rocol Tools design high-performance installation systems, and how global digital procurement channels like 4Woo help professionals source authentic riveting hardware efficiently.
To understand how the tool operates, one must first understand the anatomy of the fastener it is designed to install. A standard pop rivet is not a single solid piece of metal; it is a two-part assembly engineered to deform under specific structural loads.
A standard blind rivet consists of two primary components:
The Rivet Body (Sleeve): This is the outer, hollow tube that remains permanently in the material. It features a flanged head on one end that sits flush against the front surface of the workpiece.
The Mandrel (Stem): This is the solid, pin-like rod that runs through the center of the hollow rivet body. The mandrel features a widened, ball-shaped head at its base (the blind side) and a long, smooth shaft that protrudes from the front of the rivet flange.
A pop rivet gun—whether manual, cordless, or pneumatic—relies on an internal mechanism designed to grip, pull, and snap the mandrel. The key internal components include:
The Nosepiece: The hardened steel tip of the gun containing an aperture precisely sized to match the diameter of the rivet mandrel. It acts as a stationary anvil against which the rivet flange rests during installation.
The Jaw Case and Clamping Jaws: Positioned directly behind the nosepiece, this assembly contains two or three segmented, hardened steel jaws with serrated teeth. These jaws are designed to tightly clamp onto the smooth shaft of the mandrel.
The Pulling Piston/Lever Mechanism: The mechanical links or hydraulic cylinders that pull the jaw case backward away from the nosepiece when the tool is actuated.
The installation of a blind rivet occurs over a multi-stage mechanical cycle that takes less than a few seconds to complete. Here is the step-by-step breakdown of how the tool interacts with the fastener.
The operator inserts the long end of the rivet mandrel into the nosepiece of the rivet gun. At this stage, the internal jaws of the gun are relaxed, allowing the smooth stem to slide easily between them until the rivet flange rests firmly against the flat face of the nosepiece. The operator then pushes the protruding rivet body through a pre-drilled hole that aligns the two workpieces.
When the operator squeezes the handles of a manual tool or depresses the trigger of a power tool, the jaw case begins its rearward travel.
The jaw case features a conical, tapered internal bore. As the mechanism moves backward, the segmented jaws are forced deeper into this taper, compressing them inward. This action causes the serrated teeth of the jaws to bite aggressively into the smooth metal surface of the rivet mandrel, establishing a slip-free mechanical bond.
As the tool continues its rearward stroke, the jaws pull the gripped mandrel linearly back toward the tool body. Because the nosepiece of the gun remains fixed against the rivet flange, the rivet cannot move.
The backward movement of the mandrel forces its widened, ball-shaped head directly into the hollow sleeve of the rivet body on the blind side of the workpiece. This massive compressive force causes the soft metal tube (usually aluminum, steel, or stainless steel) to deform, swell radially, and flatten out against the back face of the rear panel. This process is known as "upsetting" the rivet.
As the two materials are clamped tightly between the front flange and the newly formed blind-side bulb, resistance increases dramatically. The tool applies increasing tensile force to the mandrel.
Every standard rivet mandrel is designed with a specific weak point—a localized neck down or indentation located just below the mandrel head. When the pulling force reaches a precise tensile threshold (the engineered break load), the mandrel snaps cleanly at this indentation. The sudden release of tension produces the audible "pop" from which the fastener gets its name.
With the mandrel snapped, the permanent joint is complete. The tool handles are released (or the power cycle ends), causing the jaw case to spring forward to its baseline position. As it moves out of the internal taper, the jaws open, releasing the severed mandrel stem, which falls out of the back or front of the tool.
Not all pop riveting applications are identical. The force required to snap a rivet mandrel varies drastically depending on metallurgical and dimensional parameters.
Pop rivets are manufactured from various material combinations to suit structural and environmental requirements:
Aluminum Rivets: Require lower pulling forces; ideal for soft materials, plastics, and low-load enclosures.
Steel and Stainless Steel Rivets: Require immense pulling force to deform the sleeve and snap the mandrel; used in structural automotive and industrial load-bearing joints.

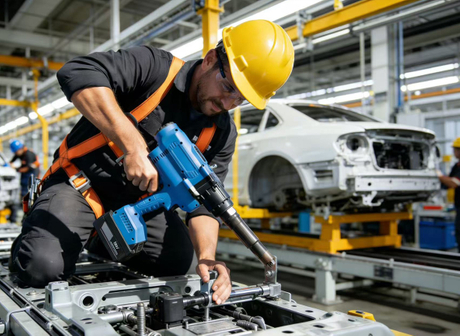

To pull a stainless steel mandrel until it snaps requires substantial force. Manual rivet guns use long, compound-lever handles to multiply human grip force. For high-volume assembly lines, human hand strength is insufficient, which is why industrial facilities rely on pneumatic-hydraulic or cordless battery-powered riveting systems to generate consistent linear pulling forces automatically.
In demanding commercial environments where tools cycle thousands of times per day, standard retail-grade rivet guns quickly fail due to jaw wear or structural fatigue. This is where specialized engineering brands like Rocol Tools provide professional-grade reliability.
The primary point of failure in low-quality rivet guns is the degradation of the internal jaws. If the serrated teeth wear down, they slip on the smooth mandrel, resulting in incomplete rivet sets and jammed tools. Rocol Tools addresses this vulnerability by utilizing ultra-hardened steel alloys and advanced heat-treatment profiles for their jaw assemblies, ensuring clean, slip-free pulling actions across millions of cycles.
For production facilities utilizing hydro-pneumatic (air-over-oil) rivet guns, maintaining a highly consistent pulling stroke is essential. Rocol Tools designs heavy-duty pneumatic riveting equipment with optimized fluid dynamics that prevent internal pressure drops. This guarantees that every pull delivers the exact linear stroke required to achieve a clean mandrel snap without straining the tool’s internal seals.
Procuring professional-grade riveting equipment and maintaining a matching inventory of high-quality blind fasteners requires a dependable logistical framework. Modern manufacturing teams rely on advanced digital supply platforms like 4Woo to coordinate these industrial requirements.
A common pain point for procurement managers is sourcing high-end tools from one vendor and compatible fasteners from another, which can introduce compatibility variances. Utilizing B2B marketplaces like 4Woo allows commercial buyers to consolidate their supply chains by purchasing elite riveting machinery alongside massive wholesale inventories of aluminum, steel, and marine-grade stainless steel pop rivets across all standard diameters and grip ranges.
In critical structural assembly, using fasteners with unverified tensile break points can lead to catastrophic joint failures. Digital procurement ecosystems like 4Woo help mitigate this risk by connecting industrial enterprises directly with verified manufacturing chains and certified hardware lots, ensuring that the components used match the engineering tolerances specified by the project designs.
To optimize production efficiency, operators must pair the correct riveting tool configuration with their specific workflow demands.
| Tool Type | Primary Power Source | Best Suited For | Key Engineering Feature |
| Manual Lever Gun | Human Grip Force | Low-volume repair, field maintenance, mobile toolboxes | Extended handles for maximum mechanical lever advantage |

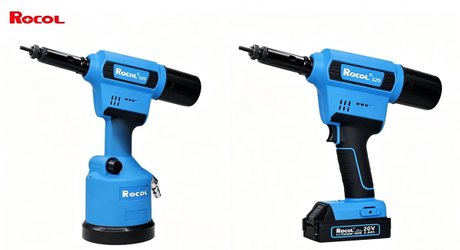

| Cordless Battery Riveter | Electric Motor & Gearbox | Construction sites, offshore installations, cordless assembly | High mobility, precise electronic stroke calibration |

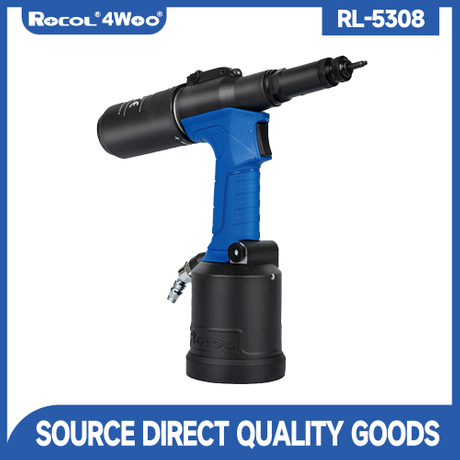

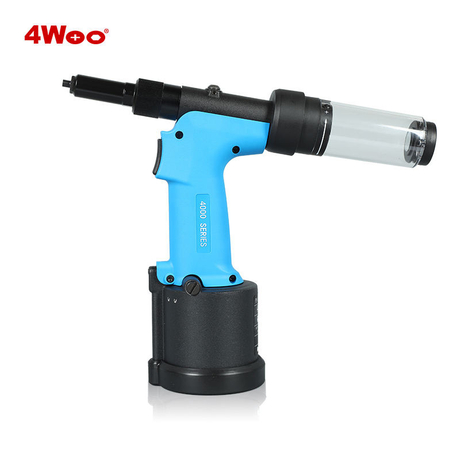

| Pneumatic-Hydraulic Gun | Compressed Air / Oil Cylinder | Industrial factory floors, high-speed automotive lines | Fast cycle times, ultra-lightweight tool weight, minimal recoil |
To keep a pop rivet gun operating at peak mechanical efficiency and prevent unexpected line stoppages, facilities should follow a strict maintenance protocol.
Over time, the serrated teeth of the internal jaws collect fine metal shavings stripped from smooth rivet mandrels.
Unscrew the nosepiece and outer housing of the gun.
Remove the jaw case assembly.
Clean the jaw segments thoroughly using a fine steel wire brush to remove compressed metal dust.
Apply a light layer of industrial lubricant before reassembly.
Always ensure that the installed nosepiece matches the exact diameter of the rivet mandrel being used. Using a nosepiece with an aperture that is too large can cause the mandrel to tilt during the pulling phase, leading to uneven blind-side deformation, jammed stems, or damaged internal jaws.
Mandrel jams typically occur when the internal clamping jaws fail to release fully after the mandrel snaps. This can be caused by a buildup of metal shavings inside the jaw case, a worn internal spring, or using an incorrect nosepiece size that prevents the spent stem from sliding out smoothly.
No. A pop rivet gun is designed strictly for a straight, linear pulling action to snap a smooth wire stem. Rivet nuts (threaded inserts) require a dedicated tool with a threaded mandrel that spins into the insert, pulls linearly to collapse the sleeve, and then unthreads without snapping the metal. Specialized threaded setters, such as those produced by Rocol Tools, must be used for those applications.

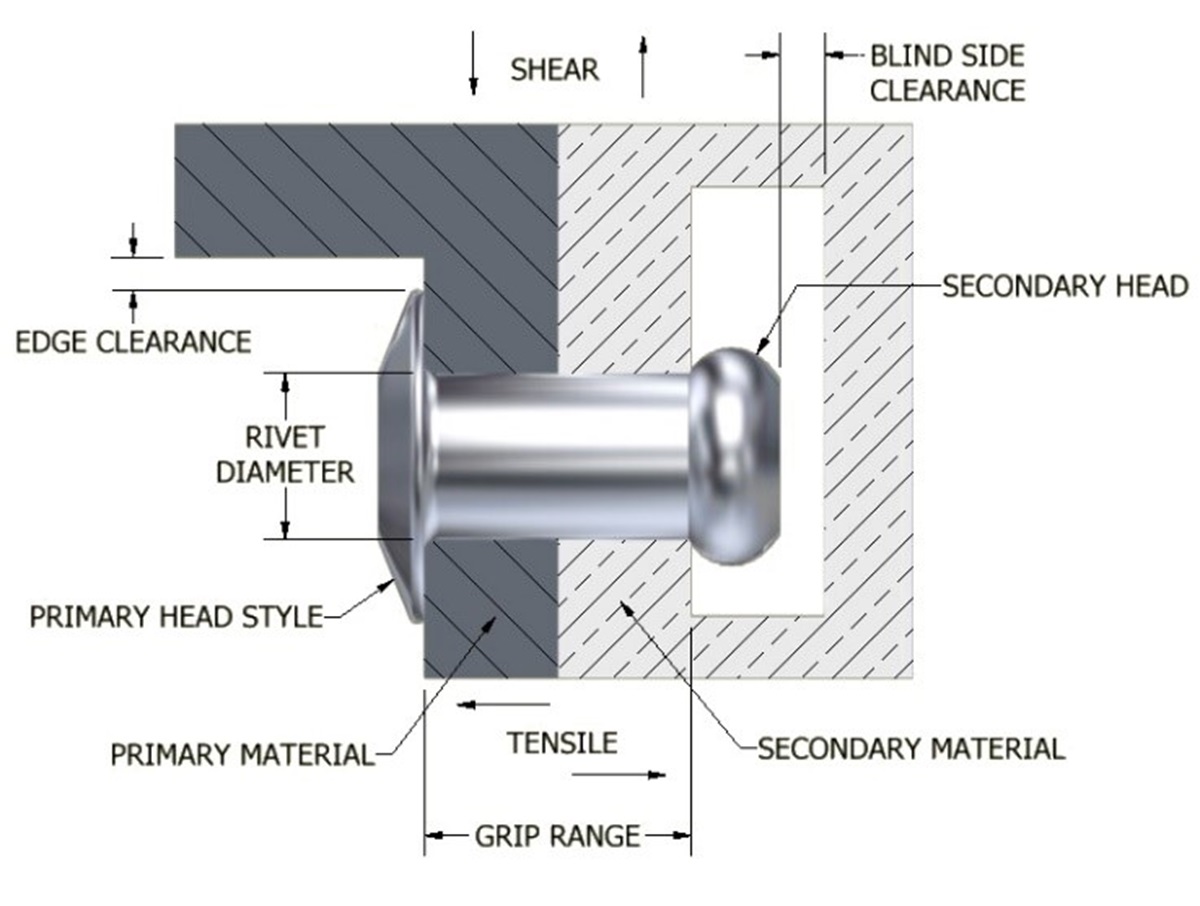

The grip range refers to the total thickness of the materials being joined together. Choosing a rivet with a grip range that is too short means the blind-side bulb will not form correctly; choosing one that is too long will leave the joint loose. Always measure your total material stack-up and verify it falls within the nominal grip range listed on industrial hardware sheets.
The pop rivet gun is a masterclass in elegant mechanical engineering, transforming simple linear force into the immense tensile load required to deform metal and lock structures together permanently. For hobbyists and industrial manufacturers alike, understanding the internal physics of jaw compression, mandrel tension, and material upset ensures higher-quality output and fewer mechanical failures.
To maintain maximum uptime and zero-defect production in professional environments, investing in rugged, precisely calibrated hardware from names like Rocol Tools is an excellent choice. By leveraging streamlined, reliable sourcing platforms like 4Woo, manufacturing operations can maintain a steady supply of both elite pneumatic tools and premium fastening hardware to keep their projects moving forward seamlessly.
