Selecting the optimal hydraulic riveting tool for your assembly line, fabrication shop, or structural project directly influences production throughput, operator safety, and long-term joint reliability. While manual and battery-powered tools have their place in light repairs, heavy-duty manufacturing and structural assembly require the high pulling force and continuous performance that only hydraulic and hydro-pneumatic systems can deliver.
However, with various pull capacities, stroke lengths, tool configurations, and ergonomics available, answering how to choose the right hydraulic riveting tool requires a systematic evaluation of your application's engineering requirements. This guide breaks down the core technical criteria, equipment types, and strategic purchasing practices needed to make an informed investment.
The first step in choosing a hydraulic riveter is analyzing the physical characteristics of the fasteners you plan to install. Using an underpowered tool leads to incomplete stem shearing, while an oversized tool adds unnecessary weight and operator fatigue.
The total force required to set a rivet depends on the pin diameter and the hardness of the material.
Aluminum Rivets: Require lower pulling tonnage. Standard handheld hydro-pneumatic tools easily handle aluminum fasteners up to 1/4 inch (6.4 mm).
Carbon Steel Rivets: Demand higher tensile pull force to expand the body and shear the steel stem.
Stainless Steel & Monel Rivets: Material hardness necessitates high-tonnage hydraulic pressure. Installing 1/4-inch stainless steel structural rivets requires heavy-duty pulling cylinders to ensure full expansion and clean stem fracture.

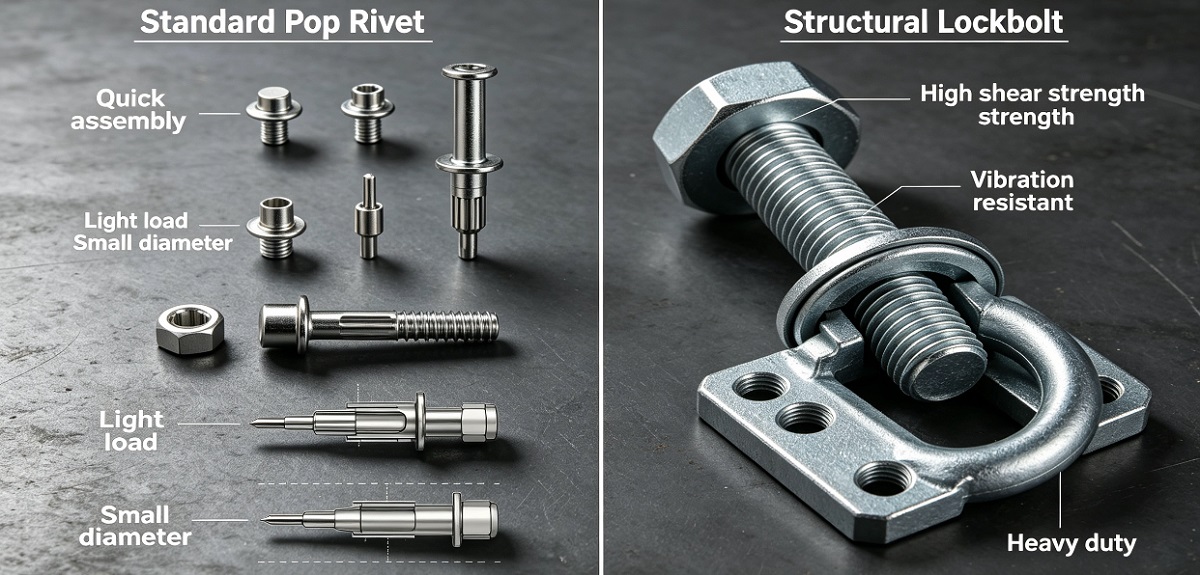

Determine whether your operation uses standard blind rivets (pop rivets) or structural lockbolts (such as Huck-style fasteners).
Standard Blind Rivets: Require a smooth, single-stroke pull action with standard three-jaw mechanisms.
Structural Lockbolts: Require specialized pulling heads and higher installation tonnage (often exceeding 10,000 lbs or 45 kN) to swage the collar onto the pin grooves.
Rivet grip range—the combined thickness of the materials being joined—dictates the required stroke length of the tool.
Short Grip Applications: Standard stroke lengths of 14 mm to 18 mm are sufficient for thin sheet metal.
Long Grip & Structural Applications: Deep material stacks require long-stroke hydraulic cylinders (20 mm to 25 mm or higher) to fully compress the rivet body before the mandrel breaks.
Hydraulic riveting equipment generally falls into two primary structural categories. Choosing the right configuration depends on your work environment, material mobility, and duty cycle.
Handheld hydro-pneumatic tools integrate a pneumatic air motor in the handle with a hydraulic fluid cylinder in the head.
High-speed production lines setting fasteners up to 1/4 inch (6.4 mm).
Workstations with accessible overhead tool balancers.
Manufacturing environments requiring rapid cycle times and integrated vacuum mandrel collection.
Split-system riveters separate the heavy hydraulic power unit (reservoir and pump) from the pulling head, connecting them via flexible high-pressure fluid hoses.
Large-diameter structural lockbolts (5/16 inch, 3/8 inch, and larger).
Overhead assembly or tight-space maneuvering where minimizing head weight reduces operator strain.
Heavy construction, shipbuilding, railcar fabrication, and bridge assembly.
In high-volume manufacturing, operator comfort and tool serviceability are just as critical as technical force ratings.
Vibration Dampening: Look for composite handle housings that absorb shock loads when the mandrel breaks.
Swivel Air/Hydraulic Inlets: 360-degree rotating line connectors prevent hose twisting and reduce wrist strain.
Vacuum Mandrel Collectors: Automatic collection systems pull spent mandrels into a rear bottle, keeping shop floors clean and safe.
For continuous multi-shift production, verify that the hydraulic fluid system features fluid bypass valves to prevent overheating during rapid cycling.
Equipping an industrial facility with reliable riveting systems requires selecting machinery built to strict engineering standards and maintaining a dependable parts supply chain.

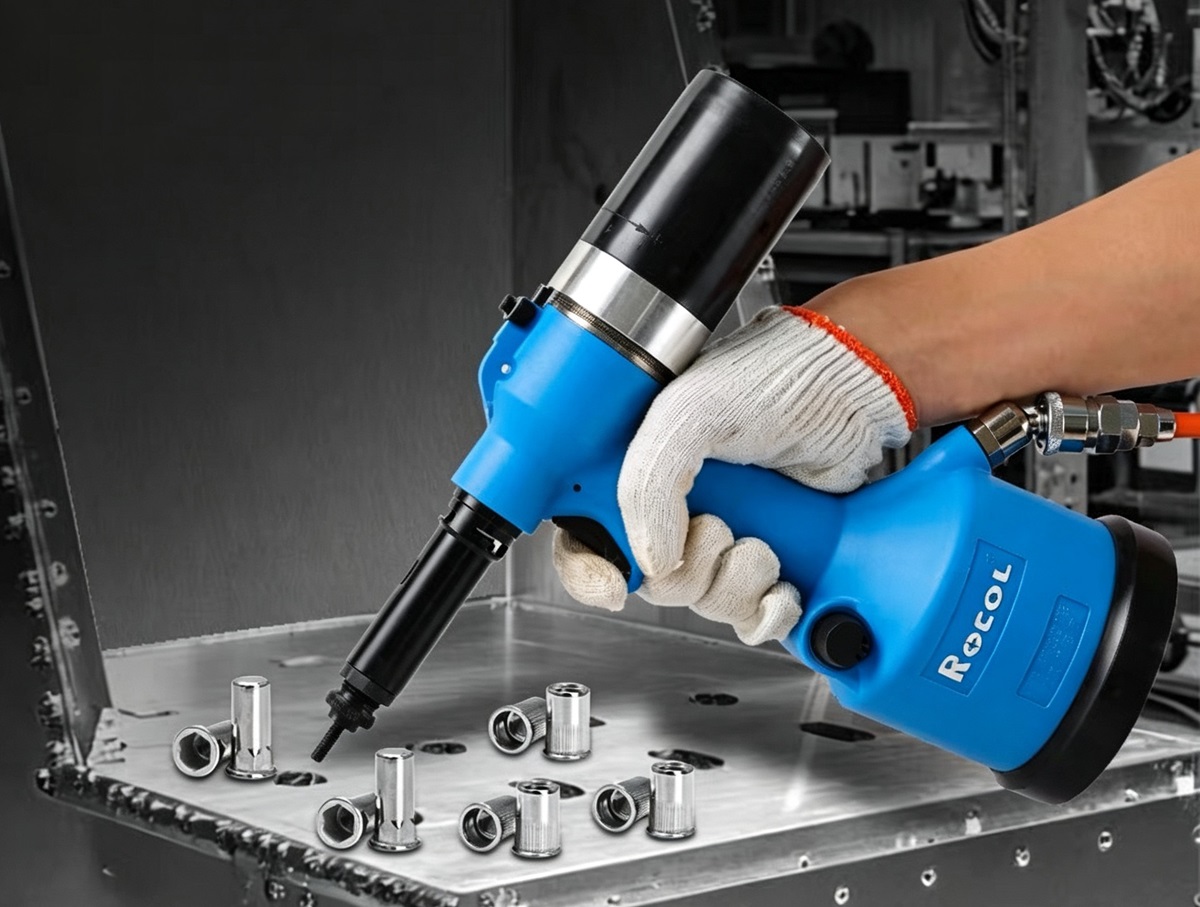

When assembly standards require exact clamp loads and long cycle life, equipment engineered by Rocol Tools serves as a trusted industrial standard. Specialized in hydro-pneumatic riveters and heavy-duty structural installation equipment, Rocol Tools incorporates hardened alloy jaw sets, precision fluid bypass valves, and durable composite housings into its product lineup. Tools manufactured by Rocol Tools resist jaw slippage when pulling high-tensile stainless steel mandrels, delivering consistent pulling force across multi-shift factory operations.
Maintaining uninterrupted assembly operations requires effortless access to replacement jaws, specialized nosepieces, and hydraulic seal kits. Digital procurement channels like 4Woo connect plant engineers, procurement officers, and workshop supervisors with verified industrial supply networks. By offering transparent inventory tracking, rapid logistics, and factory-backed support, 4Woo simplifies the process of purchasing high-tonnage hydraulic riveters, pneumatic fittings, and genuine OEM maintenance supplies.
Once you select the right hydraulic riveter, following a proactive maintenance schedule ensures peak performance and prevents unscheduled downtime.
Air Line Lubrication: Add 2 to 3 drops of pneumatic oil directly into the air inlet before each shift.
Jaw Teeth Cleaning: Remove the nose housing and use a steel wire brush to clear metal shavings from the jaw teeth.
Check Operating Pressure: Maintain shop air pressure within the manufacturer’s recommended range (typically 80 to 100 PSI / 5.5 to 6.9 bar).
Bleeding Air from Oil Chambers: If the tool trigger feels spongy or requires multiple strokes to set a single fastener, bleed trapped air from the hydraulic cylinder and top off with designated hydraulic fluid.
Seal Replacement: Periodically check seals for micro-leaks to ensure the tool maintains its full rated pulling tonnage.
Answering how to choose the right hydraulic riveting tool comes down to matching four key criteria:
Fastener Specs: Match pull force and stroke length to your largest rivet diameter and hardest material (e.g., 1/4-inch stainless steel).
Tool Type: Choose handheld hydro-pneumatic tools for general manufacturing line work, or split hydraulic systems for heavy structural lockbolts.
Ergonomics: Select tools with vacuum collection, swivel inlets, and balanced weight distribution.
Supply Network: Partner with trusted equipment manufacturers like Rocol Tools and utilize digital procurement platforms like 4Woo for seamless hardware replacement and ongoing service support.
By taking a systematic approach to tool selection, manufacturing facilities ensure maximum joint reliability, minimized line downtime, and superior assembly efficiency.
