In heavy manufacturing, commercial transportation, structural engineering, and aerospace assembly, choosing the right fastener is only half the equation. Equally critical is selecting the installation machinery capable of delivering the exact, repeatable clamping tonnage required to set that fastener correctly. While light-duty manual or electric rivet tools handle small aluminum pins, heavy-duty applications demand the high tensile capacity of hydraulic and hydro-pneumatic riveting tools.
A fundamental question for manufacturing engineers, shop managers, and procurement specialists is: What types of rivets can hydraulic riveting tools install?
Thanks to fluid non-compressibility and extreme force multiplication, hydraulic tools can install a vast spectrum of mechanical fasteners—ranging from everyday blind rivets to ultra-high-tensile structural lockbolts. This comprehensive guide details the specific rivet types compatible with hydraulic systems, their industrial applications, and how to select the right tool configuration for your production environment.

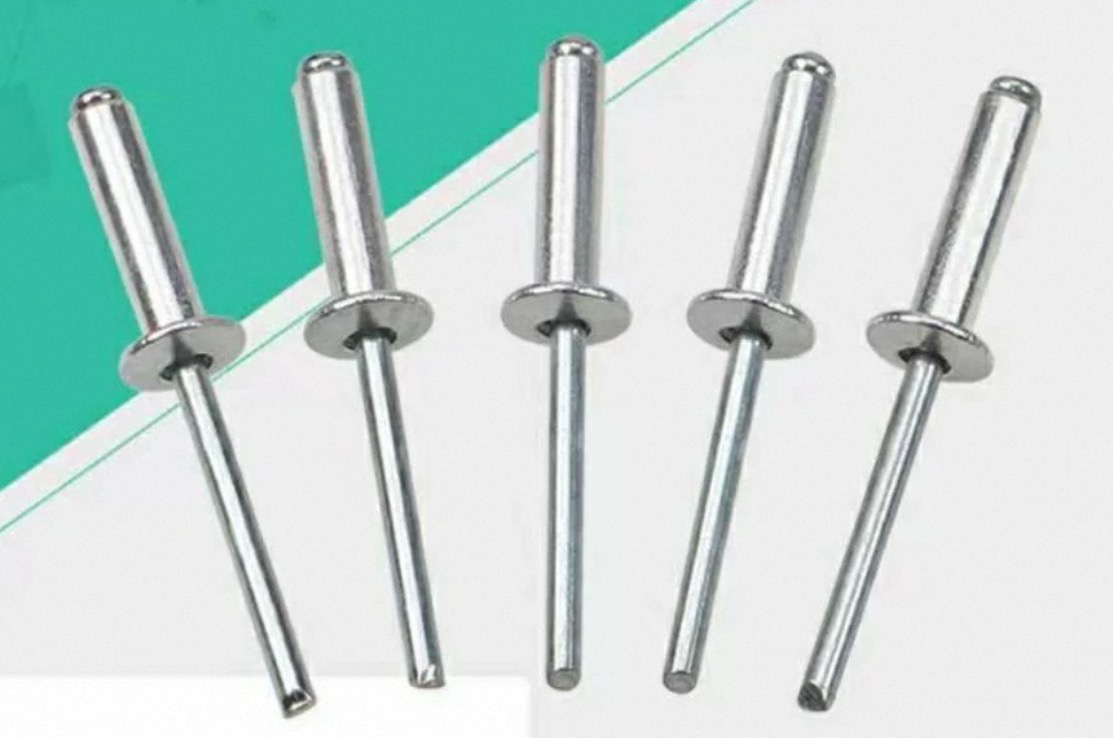

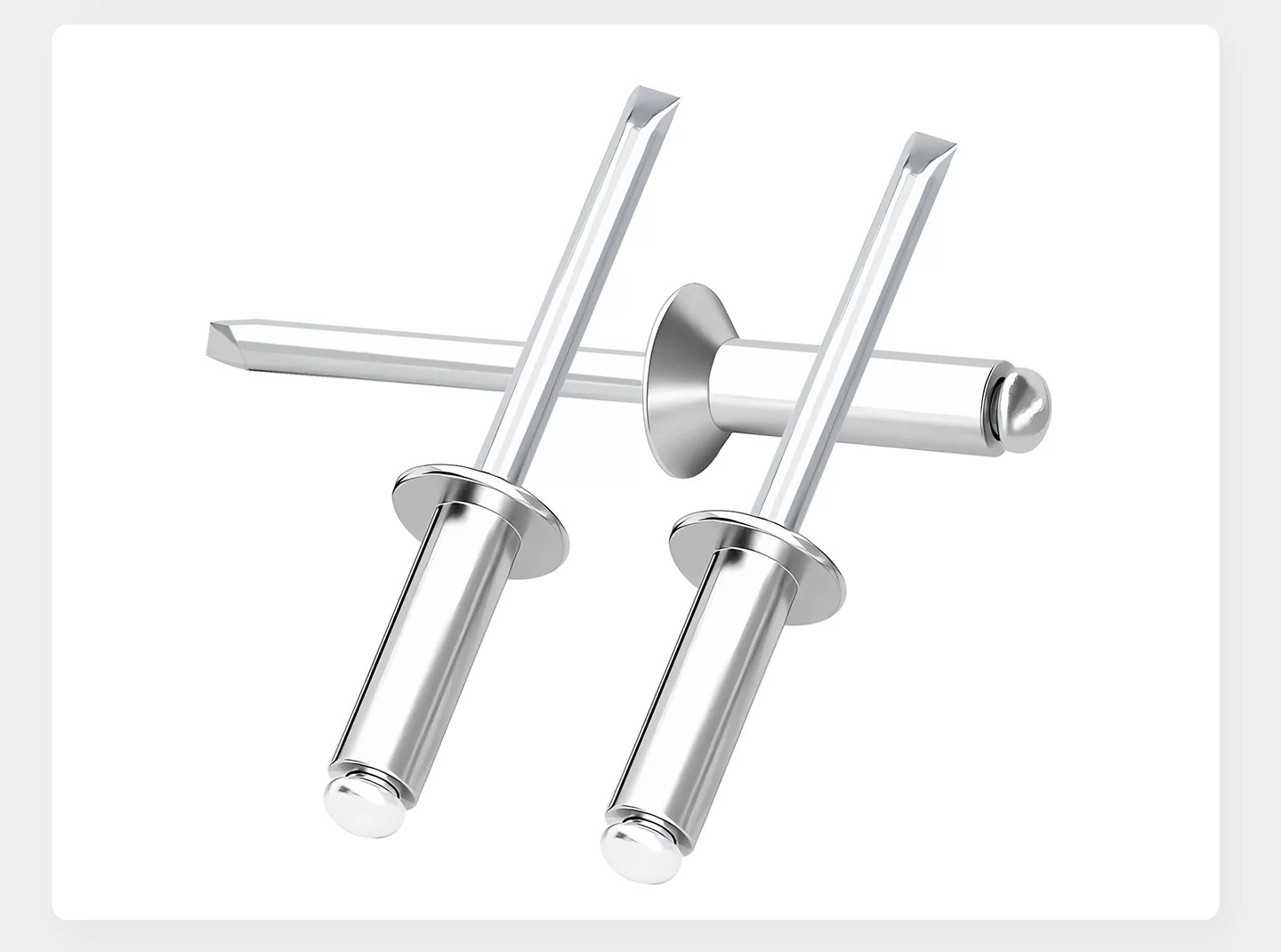

Blind rivets—commonly known as pop rivets—are tubular fasteners with a central mandrel. They are designed for applications where the operator has access to only one side (the "blind" side) of the workpiece.
Characteristics: Lightweight, corrosion-resistant, and relatively soft.
Size Range: Typically 3/32" (2.4 mm) to 1/4" (6.4 mm).
Hydraulic Advantage: While manual tools can set small aluminum rivets, hydro-pneumatic riveters install thousands of units per shift with zero operator fatigue, rapid cycle times, and smooth, consistent setting.
Common Uses: HVAC ductwork, aluminum truck body panels, signage, and light electronics enclosures.
Characteristics: High shear strength, elevated tensile resistance, and tough mandrels.
Size Range: 1/8" (3.2 mm) to 1/4" (6.4 mm).
Hydraulic Advantage: Stainless steel mandrels require significant pulling force to snap cleanly. Purely pneumatic tools often struggle or lag on larger stainless rivets, whereas hydraulic systems provide a smooth, continuous fluid pull that shears the mandrel without shock loads.
Common Uses: Automotive chassis components, industrial machinery cabinets, commercial kitchen equipment, and railcar interiors.

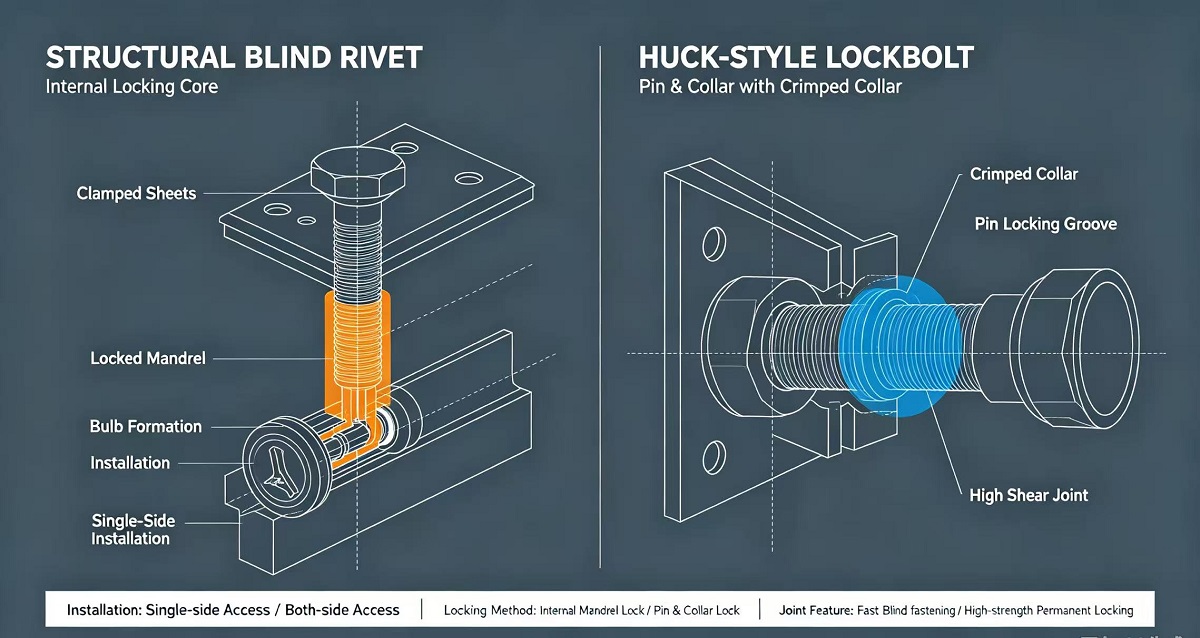

Structural blind rivets differ from standard blind rivets because the mandrel is mechanically locked into the rivet body during installation. This creates a shear-resistant, moisture-tight seal capable of withstanding heavy vibration.
Mechanics: During pull, the internal mandrel creates a wide secondary flange on the blind side while locking its stem flush inside the rivet body.
Materials: High-strength steel, aluminum alloys, and stainless steel.
Hydraulic Advantage: Setting structural rivets requires a long stroke and sustained hydraulic tonnage to expand the heavy body before locking the pin.
Common Uses: Commercial vehicle frames, bus side walls, heavy trailer manufacturing, and utility enclosures.
Mechanics: Multi-Grip structural fasteners designed to bridge varying material thicknesses while providing exceptional hole-fill capability.
Hydraulic Advantage: Hydraulic pullers exert a steady squeeze that ensures the rivet sleeve expands completely against the inner wall of the hole, eliminating structural play under severe vibration.
Lockbolts are two-piece structural fasteners consisting of a grooved pin and a collar. Unlike blind rivets, lockbolts require access to both sides of the assembly during installation, but they deliver clamping force comparable to welded joints or high-grade structural bolts.
Mechanics: The hydraulic tool grips the pull groove of the pin, pulls the workpieces tight, and then swages (cold-forms) the metal collar into the locking grooves of the pin before shearing off the pintail.
Hydraulic Advantage: Swaging a heavy steel or aluminum collar requires extreme tonnage—often between 4,000 to 10,000+ lbs (18 to 45+ kN) of force. Hydraulic riveters deliver this force in a split second with zero torque variance.
Common Uses: Railcar manufacturing, heavy truck chassis, bridge construction, and agricultural machinery.
Mechanics: Extremely high-strength blind fasteners designed for heavy structural joining where blind-side access is restricted.
Hydraulic Advantage: Requires heavy split-system hydraulic pullers powered by external fluid pumps to generate the tremendous pull force needed for installation.
While solid rivets (traditional aircraft rivets) are often driven with pneumatic hammers, specific high-precision hydraulic squeeze riveters are used when impact vibration must be completely avoided.
Mechanics: The rivet shank is compressed smoothly into a formed shop head.
Hydraulic Advantage: Hydraulic squeezing eliminates the vibration and noise of air hammers, preventing micro-fractures in delicate composite panels or aircraft aluminum skins.
Common Uses: Aerospace wing subassemblies, fuselage ribs, and precision defense hardware.
Deploying high-performance riveting systems across industrial production lines requires sourcing reliable hardware engineered to withstand multi-shift demands.
When manufacturing specifications demand tight tolerances, low maintenance overhead, and long cycle lifespans, tools engineered by Rocol Tools serve as a benchmark in industrial fastening equipment. Specialized in hydro-pneumatic riveters and heavy-duty structural tools, Rocol Tools incorporates hardened steel jaw sets, composite shock-absorbing housings, and precision fluid bypass valves into its machinery. Equipment from Rocol Tools prevents jaw slippage on tough stainless steel mandrels and ensures consistent clamp loads across demanding automotive and sheet metal production lines.
Maintaining workshop productivity requires efficient supply chains for replacement wear parts, nosepieces, and maintenance supplies. Digital procurement channels like 4Woo connect fleet managers, workshop supervisors, and independent contractors with verified industrial hardware. By offering comprehensive product catalogs, fast logistics, and factory warranty support, 4Woo simplifies the process of sourcing high-tonnage hydraulic riveters, air line accessories, and genuine OEM maintenance kits.
To ensure optimal performance, match your tool's specifications to the fastener types used in your workshop:
| Fastener Type | Diameter Range | Material | Recommended Tool Type |
| Standard Blind Rivets | 3/32" to 3/16" (2.4 – 4.8 mm) | Aluminum, Steel | Compact Handheld Hydro-Pneumatic |
| Heavy Blind Rivets | 3/16" to 1/4" (4.8 – 6.4 mm) | Stainless Steel | Heavy Handheld Hydro-Pneumatic |
| Structural Lockbolts | 1/4" to 3/8"+ (6.4 – 9.5 mm+) | Carbon Steel, Alloy | Heavy Split Hydraulic System |
So, what types of rivets can hydraulic riveting tools install? Hydraulic riveters can install virtually every major type of commercial and structural rivet—including standard blind rivets, high-strength structural blind rivets, Monobolts, pin-and-collar lockbolts, and precision solid squeeze rivets.
By partnering with precision engineering brands like Rocol Tools and utilizing streamlined procurement networks like 4Woo, industrial facilities can equip their workforces with reliable, long-lasting hydraulic riveting systems built to handle any structural challenge.
